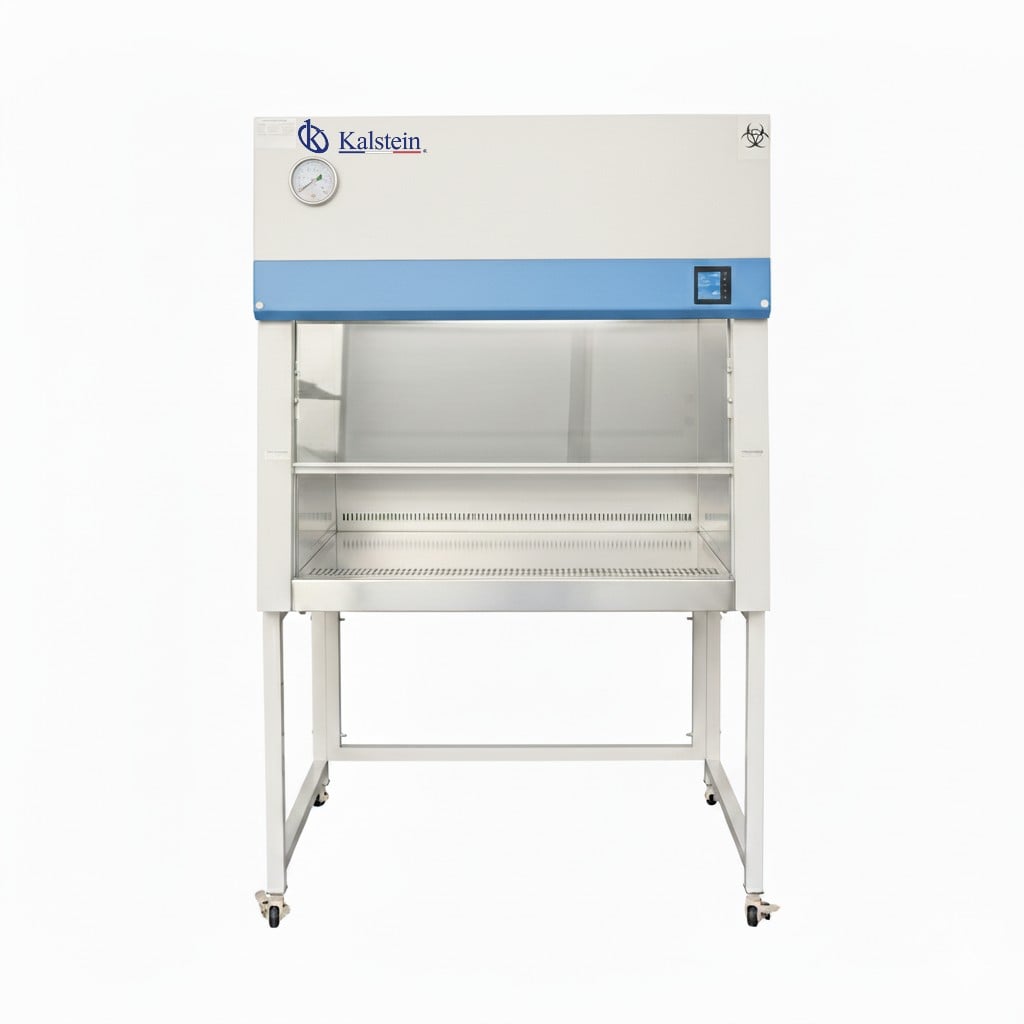

Biosafety Cabinet YR06547: A Comprehensive Overview
The Biosafety Cabinet model YR06547 represents cutting-edge technology in laboratory environments, ensuring the safety of personnel, products, and the overall environment. It is essential for laboratories handling biological agents, providing a secure workspace through its innovative design.
Product Description
The YR06547 biosafety cabinet features a state-of-the-art negative pressure system that effectively prevents leaks, thereby protecting both the operator and the external environment. Its operation is based on a principle of 70% internal circulation and 30% external discharge. The cabinet structure is constructed from high-quality cold-rolled steel, and the work surface is made from corrosion-resistant physicochemical plate.
The cabinet comes equipped with intelligent control systems, including an intuitive LCD touch screen that provides clear operational status. It complies with international standards, specifically ISO 14644.1 Class 5, which corresponds to the United States federal standard 209E, Class 100. This guarantees the cabinet's suitability for sensitive laboratory environments.
Key features include:
- High-performance EBM German motor, optimized for airflow and energy efficiency.
- High-efficiency external HEPA filters and very high-efficiency ULPA downward filters.
- Robust construction with epoxy resin surface treatment for durability.
Market Price

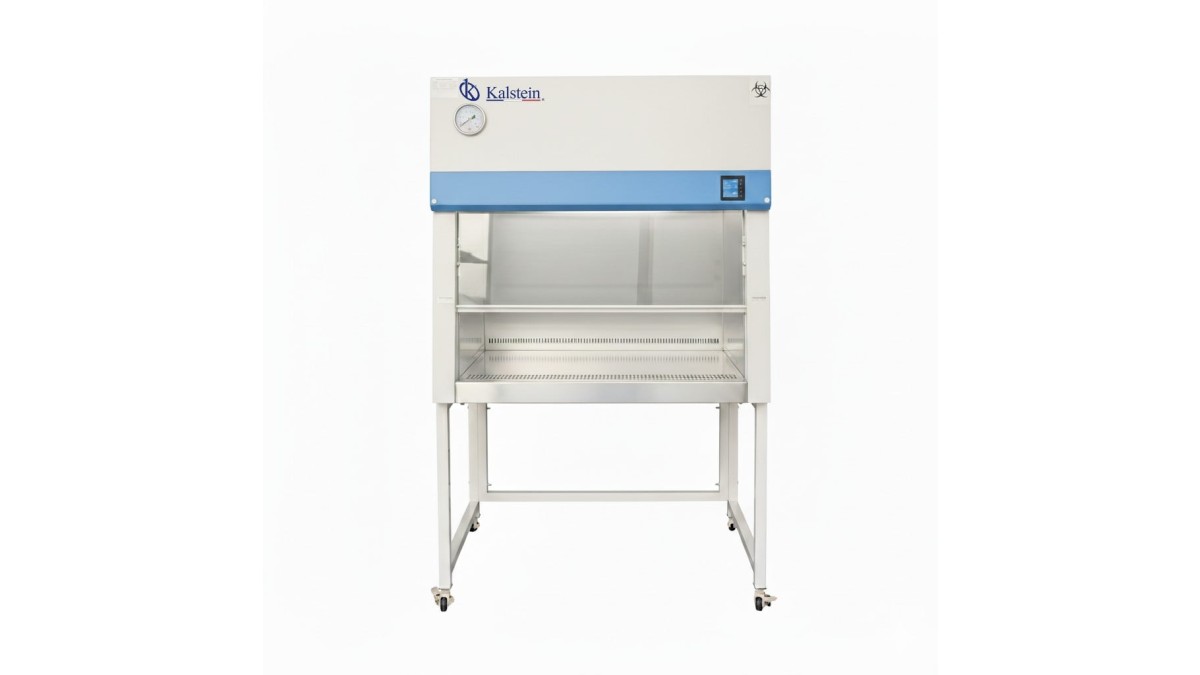

| Description | YR06543 | YR06544 | YR06545 | YR06546 | YR06547 |
|---|---|---|---|---|---|
| Package Size (mm) | 110*100*140 | 130*100*140 | 160*100*140 | 190*100*140 | 210*100*140 |
| External Dimensions (mm) | 900*760*2250 | 1100*760*2250 | 1300*760*2250 | 1500*760*2250 | 1800*760*2250 |
| Internal Dimensions (mm) | 740*600*600 | 940*600*600 | 1140*600*600 | 1340*600*600 | 1640*600*600 |
| Weight | 380 kg | 380 kg | 380 kg | 380 kg | 380 kg |
| Price (USD) | $2920.00 | $2920.00 | $2920.00 | $2920.00 | $2920.00 |
Frequently Asked Questions
What is the difference between ULPA and HEPA filters?
The ULPA filters in the YR06547 biosafety cabinet offer ultra-high efficiency with a filtration rate of 99.999%, while HEPA filters provide high efficiency at 99.995%. Both filters are excellent in maintaining air quality, but ULPA filters provide a slightly superior level of purity.
What is the accuracy of the downward airflow control?
The downward airflow control accuracy is 0.015 m/s, ensuring uniformity and stability of airflow to maintain sterility in the working area.
What sizes are available, and what level of cleanliness does the cabinet guarantee?
The YR06547 biosafety cabinet guarantees a level 5 cleanliness according to ISO 14644.1, equivalent to the federal standard 209E Class 100, which is a strict requirement for sensitive environments.
What are the pros and cons of the YR06547 biosafety cabinet?
Pros include double filtration with high efficiency, superior safety due to the negative pressure design, optimized airflow design, and durable construction. Cons include specific environmental requirements, significant shipping weight, and flow limitations due to external discharge needs.
How is the product used in the field?
The YR06547 biosafety cabinet is essential for handling low to moderate risk biological agents such as viruses, bacteria, and cell cultures that require biosecurity. It is the standard choice in microbiology laboratories, hospitals, and biotechnology and pharmaceutical research centers, where protecting products, personnel, and the environment is critical.
What maintenance is required for the biosafety cabinet?
To ensure longevity and maximum safety, regular maintenance of filters is required, as well as checking the calibration of the imported sensor. Environmental conditions should be monitored to maintain required temperature and humidity levels.
Pros and Cons
Pros:
- Double filtration: Utilizes external HEPA filters and ULPA/HEPA downward filters, ensuring up to 99.999% efficiency.
- Superior safety: The negative pressure design prevents leaks, protecting both operator and environment.
- Optimized design: Reasonable air duct and optimized negative pressure box ensure airflow uniformity.
- High-performance motor: Features a low-energy, high-volume EBM German motor.
- Durable construction: Made from corrosion-resistant cold-rolled steel with an epoxy resin surface treatment.
Cons:
- Environmental requirements: The operating environment must be kept between 10 and 30°C with relative humidity below 70%.
- Shipping weight: The shipping weight ranges from 138 kg to 198 kg depending on size, complicating transport and installation.
- Flow limitations: Although it features a recirculation system, the 30% external discharge requires an escape ventilation system.
Field Usage
The Class II Type A2 biosafety cabinet is indispensable for dealing with low to moderate risk biological agents. Its design ensures biosecurity and safety for laboratory personnel handling viruses, bacteria, and cell cultures. It is the go-to choice in microbiology labs, hospitals, and biotech and pharmaceutical research centers, where protection of the product, personnel, and environment is paramount. Its vibration control capabilities and stable airflow are critical for delicate experiments.
Recommendations
To ensure longevity and maximum safety of the YR06547 biosafety cabinet, it is recommended to conduct regular maintenance on the filters and check the calibration of the imported sensor. Ensure the workspace meets temperature (10-30 °C) and humidity (below 70%) requirements. Periodically check the inlet airflow speed (average of 0.53 m/s to 0.56 m/s) and the downward airflow speed (average of 0.35 m/s) to guarantee the effectiveness of the negative pressure protection. Use heavy-duty wheels for initial positioning and ensure stability before use.
If you are interested in acquiring the YR06547 biosafety cabinet or need further information, please request a quote on Kalstein Plus.
