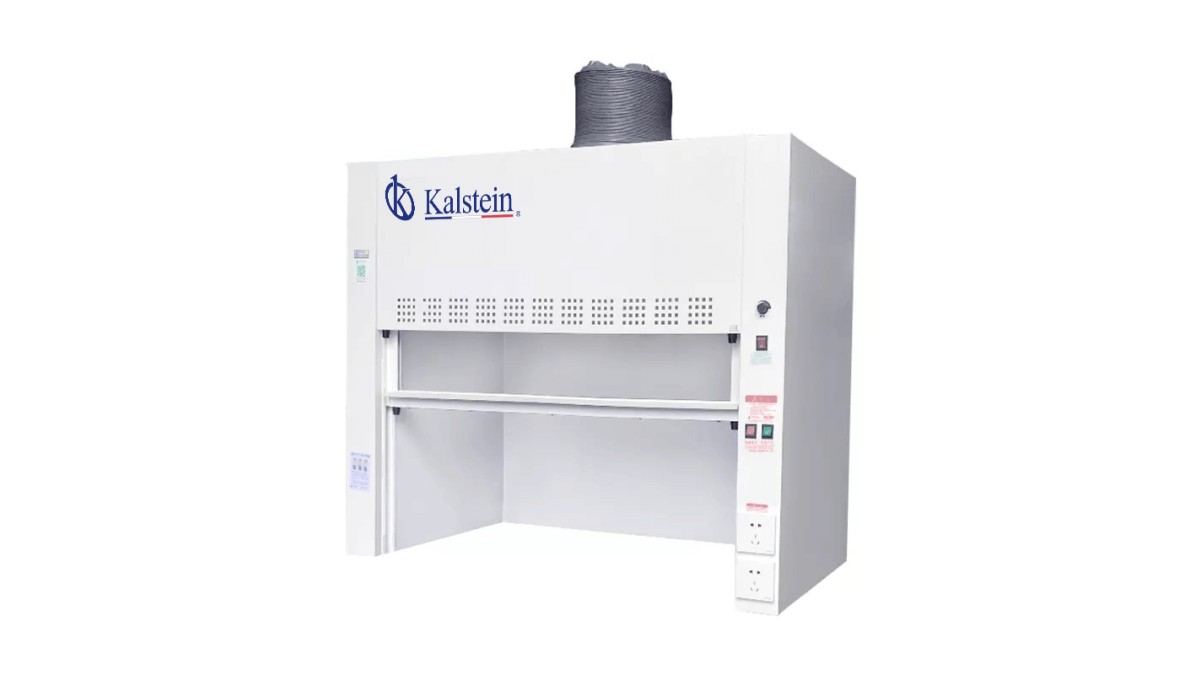

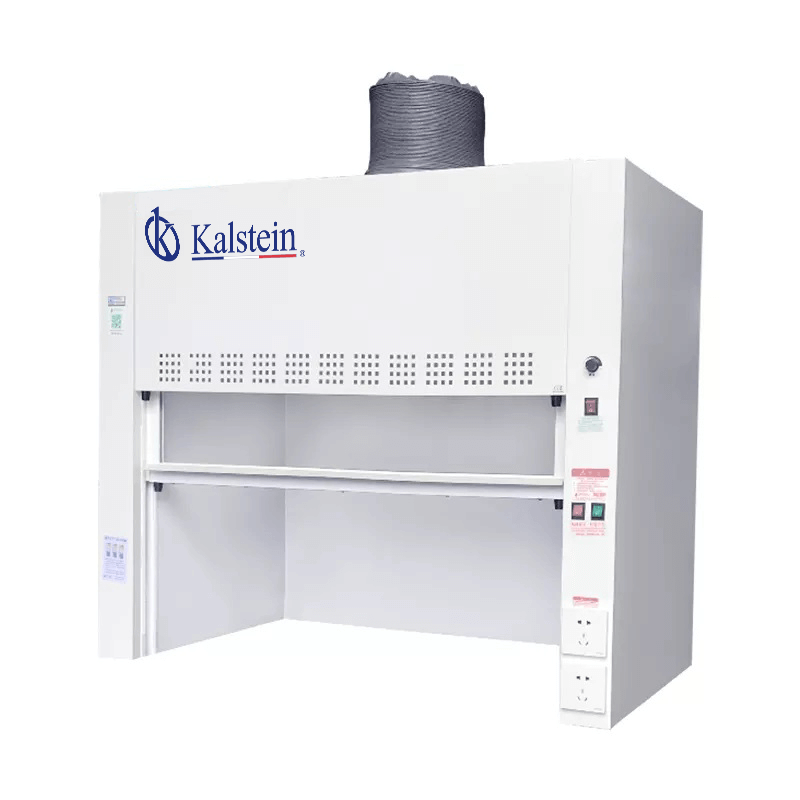

Epoxy-Coated Steel Basic Chemical Laboratory Fume Extraction Hood YR05809
The YR05809 Epoxy-Coated Steel Basic Chemical Laboratory Fume Extraction Hood is designed to ensure maximum safety and efficiency in laboratory environments. It features a robust construction, providing a reliable solution for chemical vapors and other hazardous fumes. This fume hood is essential for maintaining a safe workspace for laboratory personnel and equipment.
Product Description
The YR05809 model boasts a variety of features aimed at enhancing laboratory safety and usability. The fume hood is equipped with a front panel made of durable materials, ensuring longevity and resilience under various working conditions. The interior includes a specialized lining and baffle deflectors made from 5 mm thick melamine board, designed to efficiently direct air flow and reduce turbulence within the hood.
Furthermore, the YR05809 features a tempered glass window that is 5 mm thick, allowing for clear visibility while protecting users from hazardous substances. The exclusive PP laboratory cup facilitates efficient collection of liquids, while an integrated drainage tube ensures easy removal of waste. The hood also includes lower side plates and back plates to further enhance its structural integrity.
One of the remarkable aspects of this model is its integrated axial fan, which, along with the corrosion-resistant air collector and hose, ensures optimal air circulation. This fume hood is equipped with a wind regulator, allowing for adjustable air flow rates, accommodating various laboratory requirements. It also features a top side panel made from 1.2 mm thick galvanized steel and coated with epoxy for additional protection.
Lighting is provided by an integrated LED tube, which consumes 10W and ensures adequate illumination inside the fume hood. A combined switch for both the fan and lamp streamlines usability, while a splash-proof multifunctional outlet makes it convenient to connect various laboratory devices. The solid core, resistant to corrosion, is complemented by a physical and chemical board surface, with a thickness of 12.7 mm, ensuring durability and chemical resistance.
The construction includes door frames and panels designed to withstand rigors of laboratory use. Overall, the YR05809 model represents a significant advancement in laboratory fume extraction, combining safety, functionality, and durability.
Market Price
The current market price for the YR05809 Epoxy-Coated Steel Fume Extraction Hood is approximately $420.00 USD. This competitive pricing reflects the advanced technology and materials used in its construction, making it an attractive option for laboratories seeking reliable fume extraction solutions.
| Feature | YR05809 |
|---|---|
| External Dimensions (mm) | 800 x 650 x 1000 |
| Internal Dimensions (mm) | 600 x 600 x 750 |
| Working Surface Height (mm) | 800 |
| Maximum Window Opening (mm) | 750 |
| Air Velocity / Air Volume (m/s) | 0.4-0.6 / 800-1000 m³/h |
| Noise Level (dB) | ≤60 |
| LED Lamp Power (W) | 10 |
| Blower Type | Integrated axial flow blower; adjustable speed. |
| Front Window Type | Manual, tempered glass 5 mm, height adjustable. |
| Power Supply | AC220V±10%, 50/60Hz; |
| Power Consumption (W) | 100 |
| Gross Weight (kg) | 110 |
Frequently Asked Questions
What is the material of the fume hood?
The YR05809 fume hood is constructed from cold-rolled steel with a 1.2 mm thickness, featuring an epoxy resin coating to ensure durability and chemical resistance.
What is the energy consumption of the YR05809?
The power consumption of the YR05809 fume hood is 100 watts, which is efficient for its operational capabilities.
Is the window adjustable?
Yes, the front window of the fume hood is manual and can be adjusted in height, offering flexibility based on user needs.
How is the air flow regulated in this model?
The YR05809 features a wind regulator that allows users to adjust the air flow rate to meet specific laboratory requirements.
Does it have integrated lighting?
Yes, the fume hood comes with an integrated LED tube that provides sufficient lighting while consuming only 10 watts of energy.
What are the dimensions of the work surface?
The working surface height of the YR05809 is 800 mm, providing an ergonomic setup for laboratory personnel.
Can the fume hood handle corrosive chemicals?
Yes, the hood is designed with materials that are resistant to strong acids and alkalis, ensuring safe operation even with corrosive substances.
Pros and Cons
Pros
- Durable construction with epoxy-coated steel.
- Adjustable front window for user convenience.
- Integrated axial blower for efficient air circulation.
- LED lighting for low energy consumption.
- Corrosion-resistant materials for enhanced safety.
Cons
- Initial investment may be high for smaller laboratories.
- Manual operation may require more effort compared to automated models.
Field Usage
The YR05809 fume extraction hood is ideal for various laboratory applications, including chemistry, biology, and environmental science. It is particularly well-suited for experiments involving volatile substances, chemical reactions, or any situation where hazardous vapors may be present. Laboratories focusing on research and development, educational institutions, and chemical testing facilities can greatly benefit from the YR05809's safety features and reliable performance.
Recommendations
For laboratories seeking to ensure the highest level of safety and compliance with chemical handling protocols, the YR05809 Epoxy-Coated Steel Basic Chemical Laboratory Fume Extraction Hood is highly recommended. It is advised to conduct regular maintenance checks to ensure optimal operation, and users should always adhere to safety guidelines when operating the fume hood. Additionally, laboratories should consider integrating this model with other safety equipment to maximize protection for personnel and property.
If you are interested in acquiring this innovative fume hood, please request a quote on Kalstein Plus for further details and assistance.
