Laminar flow hood, clean bench and biosecurity cabinet
Laminar flow hoods, clean benches, and biosecurity cabinets are essential in maintaining sterile environments in medical and laboratory settings. These devices protect both operators and sensitive materials from contamination, ensuring safety and reliability in various procedures.
When selecting the right equipment for your medical center, it's vital to understand the specific needs of your applications and the various types of hoods and cabinets available. This guide aims to provide comprehensive insights into these critical laboratory tools.
Types of laminar flow hood, clean bench and biosecurity cabinet your medical center may need
Class II Biosafety Cabinets
Class II Biosafety Cabinets are designed to provide personnel, product, and environmental protection. These cabinets utilize a combination of laminar airflow and HEPA filtration to maintain a sterile environment while allowing safe manipulation of hazardous materials.
They are commonly used in microbiological laboratories and pharmaceutical applications, ensuring compliance with safety standards while providing a comfortable working space for laboratory personnel.
Fume hood cabinet
Fume hood cabinets are essential for safely handling hazardous chemicals and vapors in laboratory environments. These hoods are designed to exhaust harmful fumes, protecting laboratory staff from exposure to toxic substances.
With various designs available, fume hoods can accommodate different laboratory layouts and applications, making them a versatile choice for chemical manipulation and analysis.
Horizontal laminar flow cabinet
Horizontal laminar flow cabinets provide a sterile work environment by directing HEPA-filtered air horizontally across the work surface. This design is particularly effective for applications that require the manipulation of sensitive biological samples.
These cabinets are ideal for procedures such as cell culture and microbiological work, ensuring that operators can work safely and efficiently while minimizing contamination risks.

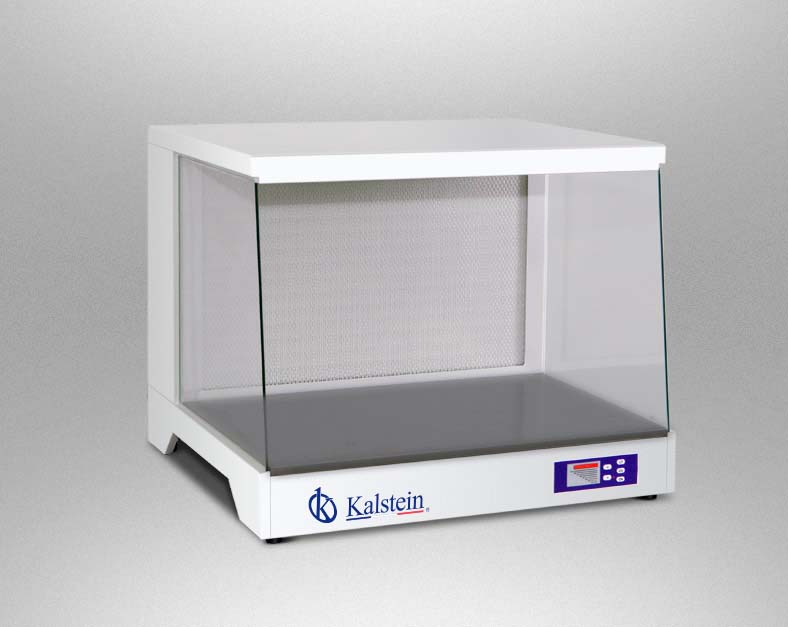

Mini cabinet
Mini cabinets are compact laminar flow solutions tailored for small laboratory spaces. Despite their size, they provide effective protection against airborne contaminants, making them suitable for various applications, including microbiology and electronics.
These cabinets are designed for easy integration into existing laboratory setups, providing a sterile environment without requiring extensive space or infrastructure.
Vertical Laminar Flow Clean Bench
Vertical Laminar Flow Clean Benches utilize a downward airflow design to ensure that the work surface remains free from contaminants. This type of cabinet is particularly suitable for applications that require a clean environment, such as tissue culture and pharmaceutical preparation.
By providing a constant flow of filtered air, these benches help maintain sterility during sensitive procedures, promoting better outcomes and ensuring compliance with health regulations.
What you should know before selecting a laminar flow hood, clean bench and biosecurity cabinet and making an investment
Key factors to consider
When selecting a laminar flow hood or clean bench, consider the specific applications and the type of materials you will be working with. Evaluate the required airflow patterns, filtration efficiency, and the size of the equipment to ensure optimal performance for your tasks.
It's also important to assess the overall design and ergonomics to ensure that the equipment fits well within your laboratory space and meets the comfort needs of the users.
Market price range
The market price for laminar flow hoods and biosecurity cabinets can vary significantly based on features, specifications, and manufacturer. Generally, you can expect to find models ranging from a few thousand to tens of thousands of dollars.
Understanding your budget and the essential features required for your laboratory will help you narrow down the options and make an informed purchasing decision.
Value for money
Investing in high-quality laminar flow hoods and clean benches can result in long-term savings by reducing contamination risks and improving operational efficiency. It's essential to evaluate the return on investment by comparing the purchase price against potential gains in productivity and safety.
Choose products that offer reliable performance, durability, and excellent customer support to ensure your investment is worthwhile.
Expected lifespan based on use and maintenance
The expected lifespan of laminar flow hoods and clean benches can depend on the frequency of use and the level of maintenance they receive. Regular servicing and proper care can extend the life of these critical laboratory tools significantly.
Be sure to follow the manufacturer's guidelines for maintenance and filter replacement to ensure optimal performance and safety over the years.
LAMINAR FLOW HOOD, CLEAN BENCH AND BIOSECURITY CABINET KALSTEIN
Discover laminar flow hood, clean bench and biosecurity cabinet for your medical center
Explore our range of high-quality laminar flow hoods, clean benches, and biosecurity cabinets designed to meet the needs of modern laboratories. Our products are engineered for reliability, safety, and efficiency, ensuring optimal working conditions for laboratory personnel.
Biological safety cabinet YR06538 // YR06542
The biological safety cabinet, models YR06538 and YR06542, is a cutting-edge solution designed to protect personnel, products, and the environment, th
View productOur best-selling laminar flow hood, clean bench and biosecurity cabinet
Biological safety cabinet YR06538 // YR06542
Frequently Asked Questions
What is the difference between ULPA and HEPA filters? The G series uses ultra-high efficiency ULPA filters (99.999% efficiency), while the D series uses high efficiency HEPA filters (99.995% efficiency). Both are excellent, but ULPA offers a slightly higher level of purity. What is the precision of downward airflow control? The precision of downward airflow control is 0.015 m/s, which ensures flow uniformity and stability to maintain sterility within the work area. What sizes are available? What level of cleanliness does the cabinet guarantee? The cabinet guarantees Level 5 of the international standard ISO14644.1 (Class 100 US Federal 209E), a strict requirement for sensitive environments.Advantages and Disadvantages
Advantages: Double Filtration: Uses external HEPA filters and ULPA/HEPA downflow filters, guaranteeing up to 99.999% efficiency. Superior Safety (Negative Pressure): The negative pressure design prevents leaks, protecting the operator and the environment. Optimized Design: Reasonable air duct and optimized negative pressure box for flow uniformity. High-Performance German Motor: Uses low-consumption, high-air-volume EBM motor. Durable Construction: Corrosion-resistant cold-rolled steel and epoxy resin surface treatment. Disadvantages: Environmental Requirements: The working environment must be maintained between 10-30°C and relative humidity below 70%. Shipping Weight: The shipping weight is considerable, ranging from 138 kg to 198 kg (depending on size), which can complicate transportation and installation. Flow Limitations: Although it is recirculating (70% internal), the 30% external discharge requires consideration of an exhaust ventilation system.Product Use in the Field
The Class II Type A2 Biosafety Cabinet is indispensable for handling low to moderate risk biological agents, such as viruses, bacteria, and cell cultures, which require biosafety. It is the standard choice in microbiology laboratories, hospitals, biotechnology and pharmaceutical research centers where product, personnel, and environmental protection is critical. Its vibration control capability (half-peak: 3μm) and stable airflow are essential for sensitive experiments.Recommendations
To ensure longevity and maximum safety: Perform regular maintenance on the filters and check the calibration of the imported sensor. Confirm that the working environment meets the temperature (10-30°C) and humidity (below 70%) requirements. Periodically check the inlet flow velocity (average 0.53m/s to 0.56m/s) and downward airflow velocity (average 0.35m/s) to ensure that negative pressure protection remains effective. Use heavy-duty mobile casters for initial positioning and ensure stability before operation.Technical Specifications
| Modelo | YR06538 | YR06539 | YR06540 | YR06541 | YR06542 |
| Package Size (mm) | 110*100*140 | 130*100*140 | 160*100*140 | 190*100*140 | 210*100*140 |
| External Size (mm) | 900*760*2250 | 1100*760*2250 | 1300*760*2250 | 1500*760*2250 | 1800*760*2250 |
| Internal Size (mm) | 740*600*600 | 940*600*600 | 1140*600*600 | 1340*600*600 | 1640*600*600 |
| Light | Lámpara fluorescente LED a prueba de tres condiciones | ||||
| Work surface | Acero inoxidable cepillado SUS304 # | ||||
| Casing | Placa de acero laminado en frío de 1.0 mm de grosor con recubrimiento de resina epoxi en la superficie | ||||
| Fan | Ventilador incorporado 220V, 138W, diámetro 250mm | ||||
| Technical parameters of high efficiency | |||||
| Window | 5mm tempered glass | ||||
| Illumination and UV | UV disinfection lamp * 1, LED lamp 10W * 2. | ||||
| Outlets | $10text{A}$ waterproof socket * 2, installed on the back wall. | ||||
| Voltage | $220text{V}/50text{HZ}$ | ||||
| Filtration and Ventilation | Equipped with HEPA filter * 2, built-in 300W centrifugal fan. | ||||
| Air Flow | 30% air exhaust, 70% air recirculation. | ||||
| Control Panel | LCD digital control panel. | ||||
| Packaging | Full packaging, with hard cardboard and wooden box. | ||||
| Mobility | Heavy duty castors. | ||||
Detailed analysis of laminar flow hood, clean bench and biosecurity cabinet for an effective and safe choice
Discover the Versatility and Benefits of Vertical Laminar Flow Clean Benches by Kalstein
Explore the versatility and benefits of Kalstein's Vertical Laminar Flow Clean Benches, designed to ensure laboratory cleanliness and enhance productivity.

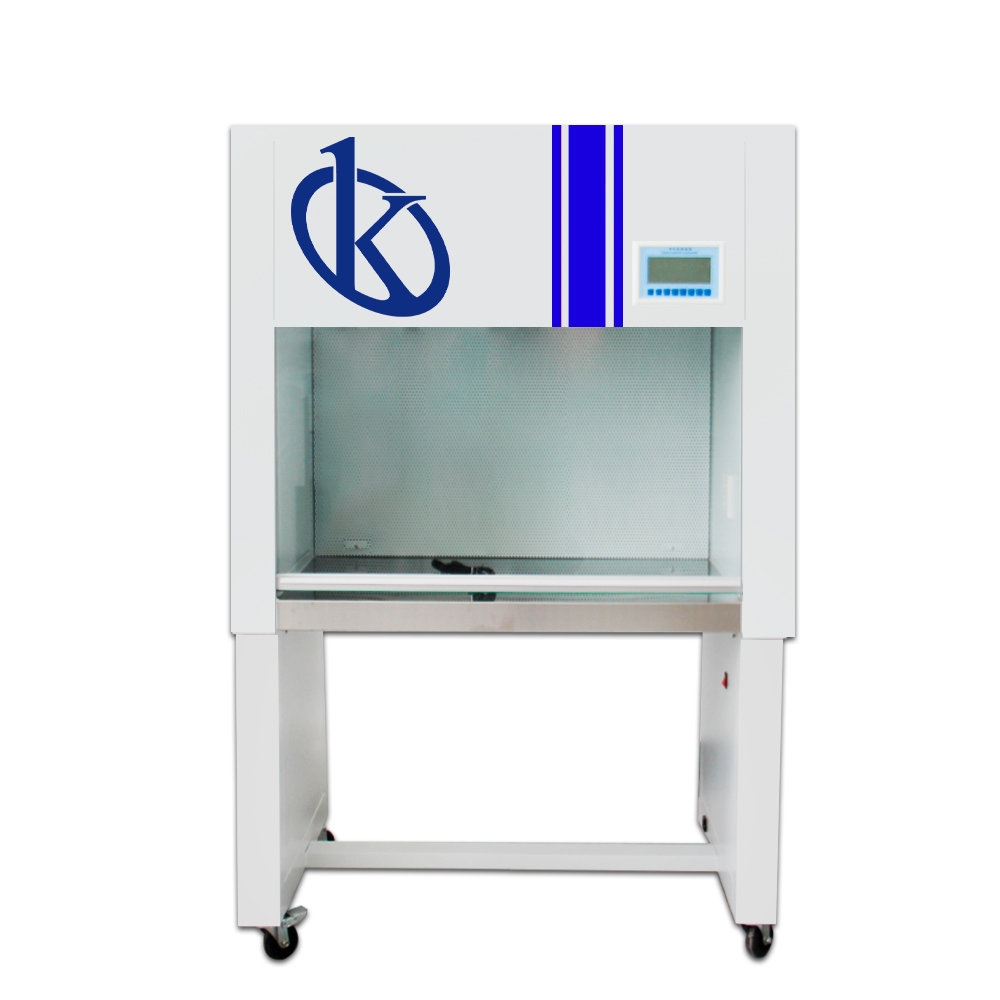

Innovative Laminar Flow Systems: Kalstein YR05728 vs Thermo Fisher Scientific Velocity Series
The field of laboratory laminar flow systems is critical for maintaining sterile environments essential for many scientific and industrial applications. The Laminar Air Flow Clean Bench YR05728 by Kalstein and the Laminar Flow Cabinet Velocity Series by Thermo Fisher Scientific stand out as key solutions, each providing distinct advantages and features. The YR05728 by Kalstein offers an advanced d
Comparative Analysis: Horizontal Laminar Flow Cabinet YR06533/YR06537 vs. Labconco's Purifier Horizontal Clean Bench
When considering the critical environment of a laboratory, choosing the right laminar flow cabinet is vital for maintaining sample integrity and personal safety. Two notable offerings in this space include the Horizontal Laminar Flow Cabinet YR06533/YR06537 by Kalstein and the Purifier Horizontal Clean Bench by Labconco. Both products are designed to provide a clean and sterile environment for sen
Comparative Analysis: Laminar Air Flow Clean Bench YR05728 vs. Purifier Logic+ Class II, Type A2 Biosafety Cabinet
The world of laboratory equipment offers numerous solutions for maintaining a contamination-free environment. Among the premier options, the Laminar Air Flow Clean Bench YR05728 by Kalstein stands out as a sophisticated choice among professionals seeking reliability and precision. On the other hand, the Purifier Logic+ Class II, Type A2 Biosafety Cabinet by Labconco provides an alternative that ba
laminar flow hood, clean bench and biosecurity cabinet offer catalog
Guides about laminar flow hood, clean bench and biosecurity cabinet
Complete guides to choose laminar flow hood, clean bench and biosecurity cabinet
Comparative Analysis of Vertical Laminar Flow Cabinets: Kalstein YR05735 vs. Esco Frontier™ VF-T
In the world of laboratory equipment, ensuring a sterile environment for sensitive operations is critical. Vertical laminar flow cabinets are designed to provide a clean and controlled environment by directing airflow vertically over the op
Leer más
Discover the Advanced Features of the Vertical Laminar Flow Clean Bench: A Comprehensive Insight
Vertical Laminar Flow Clean Bench, Brand Kalstein As someone who has studied and utilized a variety of laboratory equipment, I can attest to the reliability of the Vertical Laminar Flow Clean Bench offered by Kalstein. This equipment has re
Leer más
Comparative Analysis: Laminar Flow Cabinet YR05746 vs. Purifier Logic+ Class II A2 Biosafety Cabinet
In the realm of laboratory safety and efficiency, two powerhouses stand out: the Laminar Flow Cabinet YR05746 by Kalstein and the Purifier Logic+ Class II, Type A2 Biosafety Cabinet by Labconco. Both products serve the essential purpose of
Leer más

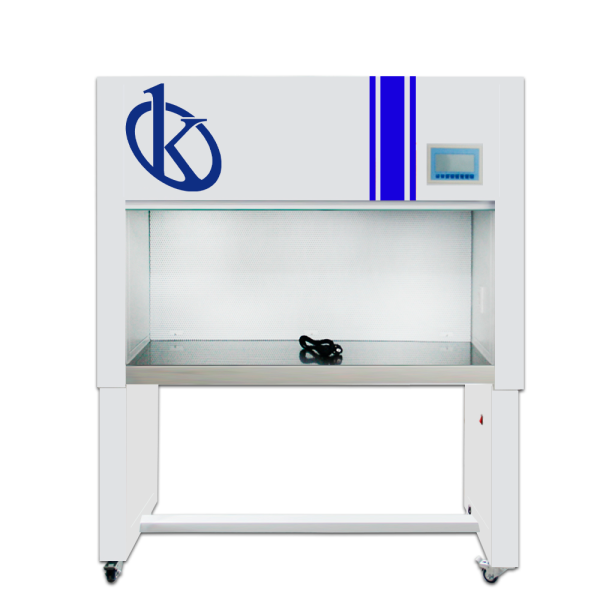

Kalstein Horizontal Laminar Flow Cabinets: A Golden Parameter in Modern Laboratories
Laminar flow cabinets are vital to ensure the integrity of laboratory experiments. They dissipate air evenly through a HEPA (High Efficiency Particulate Air) filter, creating an immaculate, particle-free environment. In particular, the Kals
Leer másFrequently asked questions about Laminar flow hood, clean bench and biosecurity cabinet
How to know the prices of Laminar flow hood, clean bench and biosecurity cabinet?
To know the price of Laminar flow hood, clean bench and biosecurity cabinet, please send us an email with your request through the contact form AQUI.
What are the delivery times for Laminar flow hood, clean bench and biosecurity cabinet?
Delivery time depends on stock availability and freight type (air or sea). In stock: air 15-30 days, sea 45-60 days. Out of stock: air 30-60 days, sea 60-90 days.
How to make a purchase of Laminar flow hood, clean bench and biosecurity cabinet?
You can buy by email ([email protected]), phone (+33 (0) 1 70 39 26 50) or through the official Kalstein website in your country.
How does the warranty work for Laminar flow hood, clean bench and biosecurity cabinet?
All Kalstein equipment comes with a 1-year warranty against manufacturing defects. The warranty does not cover damage from improper installation or misuse. See our «terms and conditions» AQUI.
Can I request a quote online for Laminar flow hood, clean bench and biosecurity cabinet?
Yes, you can request a quote for the Kalstein equipment you are interested in directly from our official website. Click AQUI.
