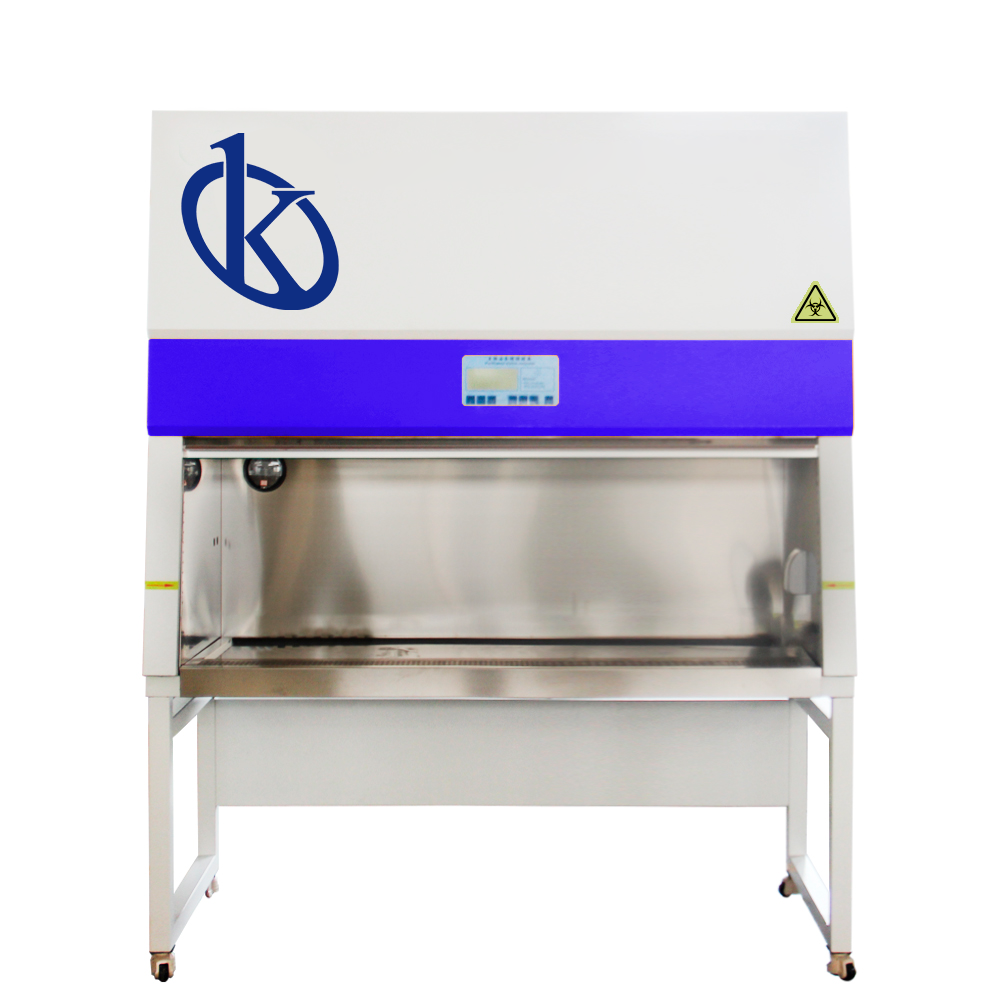

Biological Safety Cabinet 100% Exhaust Class II A2 Biosafety Cabinet YR05704 // YR05707

The Biological Safety Cabinet 100% Exhaust Class II A2 YR05704 // YR05707 is engineered to provide superior protection in labs dealing with hazardous biological agents. With its air curtain isolation system and vertical laminar airflow design, it minimizes the risk of cross-contamination. The cabinet expels 30% of the air externally while recirculating 70% internally. Featuring an adjustable glass door and alarm system for safety, this cabinet ensures a sterile environment conducive to high-stakes research.

Market Price

The market price for high-quality biological safety cabinets like the YR05704 // YR05707 generally falls between $5800 and $6500. This range reflects the premium materials used, such as 304 stainless steel, and the advanced filtration systems included in the cabinet. Investing in such equipment is crucial for laboratories aiming to comply with stringent biosafety standards, safeguarding both personnel and samples. For precise pricing, request a quote or generate one on the Kalstein Plus platform.

Frequently Asked Questions

• Is the Biological Safety Cabinet difficult to operate? No, it features an intuitive LCD LED control panel and ergonomic design for easy daily operation. An alarm alerts you if the safety door isn't correctly positioned, adding an extra layer of security.
• What type of protection does it offer? It delivers comprehensive protection for operators, the environment, and samples, thanks to its highly efficient HEPA filtration system.
• What are the dimensions of the work area? The work area varies per model, ranging from 840×650×620 mm to 1640×650×620 mm, suitable for various lab applications.

Advantages and Disadvantages

The cabinet stands out due to its robust stainless steel build, HEPA filtration with over 99.99% efficiency, and quiet operation below 65 dB. It is perfect for labs needing concentration and a hygienic environment. However, its size might be a drawback for labs with limited space, necessitating meticulous installation planning.

Product Usage in the Field

This cabinet excels in labs where sterile conditions are critical, such as in biomedical and pharmaceutical research. Its advanced filtration and vertical laminar flow are vital in preventing cross-contamination, thus safeguarding operators and delicate samples. The ergonomic design, with a 10° tilt, offers comfort during extended use, promoting a safe and efficient workspace.

Recommendations

Regular maintenance will ensure optimal performance and durability. Scheduled inspections and replacements of the HEPA filters, as well as airflow calibration, are recommended for maintaining ideal working conditions. Additionally, routinely testing the UV protection devices and safety alarms guarantees continuous, safe operation.

Technical Specifications

Model		YR05704	YR05705	YR05706	YR05707
Cleanliness		Class 100@≥0.5μm (US Federal 209E)
Number of colonies		≤0.5pcs/dish·hour (Φ90mm culture plate)
Average wind speed	Inside the door	0.38±0.025m/s
	Middle	0.26±0.025m/s
	Inside	0.27±0.025m/s
Front suction wind speed		0.55m±0.025m/s（30% Efflux）
Noise		≤65dB(A)
Voltage		AC single-phase 220V/50Hz
Maximum power consumption		400W	500W	600W	700W
Weight		170KG	210KG	250KG	270KG
Working area W1×D1×H1		840×650×620	1040×650×620	1340×650×620	1640×650×620
Overall dimension W×D×H		1000×800×2100	1200×800×2100	1500×800×2100	1800×800×2100
High efficiency filter specification and quantity		780×490×50× 1	520×380×70× 1	820×380×70× 1	1120×380×70× 1
Specification and quantity of fluorescent lamp/ultraviolet lamp		12W×1 / 20W×1	20W×2/20W×1	30W×2/30W×1	30W×2/30W×1
