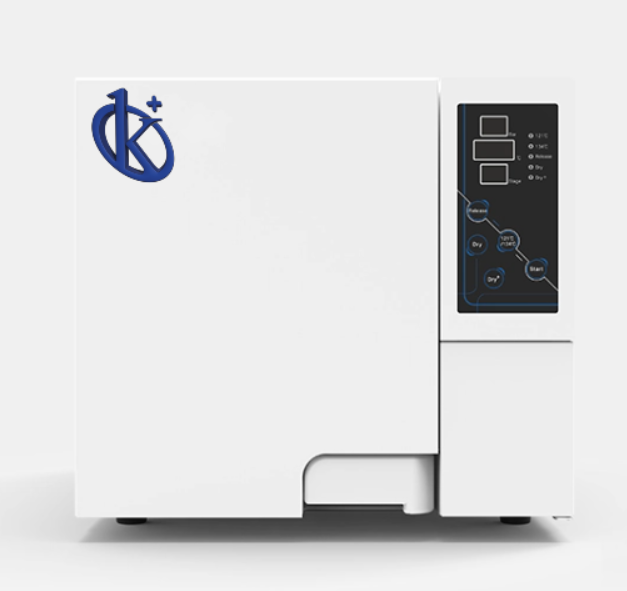

Class N Benchtop Autoclave YR03395 // YR03400

Manufacturer: Kalstein

Description

The Class N Benchtop Autoclave YR03395 / YR03400 is a compact and efficient sterilization solution ideal for medical, dental, and laboratory environments where reliability and user-friendliness are paramount. This model comes equipped with standard preprogrammed cycles operating at 134 °C and 121 °C, ensuring effective disinfection of solid instruments without cavities or wrappings. Though it lacks a built-in steam generator and water tank, requiring manual chamber filling before each cycle, this feature allows users to have complete control over the process. The LED screen provides real-time feedback, displaying vital information such as temperature, pressure, cycle duration, and safety alerts.

Market Price

The market price for the Class N Benchtop Autoclave ranges between 800 USD and 1700 USD, offering a competitive edge due to its combination of reliability and cost-effectiveness. Pricing depends on various factors such as retailer, location, and additional features.

Frequently Asked Questions

What types of instruments can be sterilized with this autoclave? The autoclave is suitable for solid instruments without cavities or wrappings, commonly used in medical and dental practices.

Does the unit include an internal water tank? No, the user needs to manually fill the chamber before each cycle.

Is there a drying function? Yes, the YR03400 model features an adjustable drying option with a default setting of 60 minutes.

Advantages and Disadvantages

This autoclave stands out for its compact size, intuitive interface, and low maintenance costs. Its safety system automatically locks the chamber if pressurized, ensuring operational safety. However, the need for manual filling requires constant operator attention, limiting unsupervised use.

Product Use in the Field

This model is widely applied in dental offices, veterinary clinics, and small laboratories needing fast, effective sterilization without large volumes. Ideal for frequent cycles involving simple instruments, it ensures high biosecurity standards without compromising on space or budget.

Recommendations

For an extended lifespan of the autoclave, use only distilled water and perform regular internal cleaning. Avoid overloading the chamber, and verify parameters before each cycle to ensure proper sterilization is achieved. Interested users are encouraged to request a personalized quote through the Kalstein Plus platform.

Features

Key features of the Class N Benchtop Autoclave include a user-friendly LED interface, preprogrammed sterilization cycles, a compact design, and a robust safety system.

Technical Specifications

Model YR03395/YR03396 YR03397 /YR03398 YR03399 /YR03400
Voltage. Frequency 220/110V, 50/60Hz
Power 1500W
Chamber Volume appr. 18L (E318/E418/E518), appr. 23L (E323/E423/E523)
Chamber Dimensions Ø247x350mm (18L), Ø247x450mm (23L)
Tray Size (W x H) 192x285mm (18L), 192x380mm (23L)
Tray Material Aluminum
Number of Trays 2/ Max. 4
Weight 32kg/36kg 33kg/37kg 33.5kg/37.5kg
Overall Dimensions (W x H x D) 483x450x515 mm (E318/E418/E518)
483x450x615 mm (E323/E423/E523)
Sterilization Program 134℃/210Kpa, 121℃/110Kpa
Sterilization Time 134℃, Default 30min (30~60min adjustable)
121℃, Default 10min (10~20min adjustable)
Dry No Default 60min (1~60min adjustable) Default 60min (1~60min adjustable)
Dry + No No Default 60min (1~60min adjustable)

Additional information

Weight N/A
Model

YR03395, YR03396, YR03397, YR03398, YR03399, YR03400
