Description

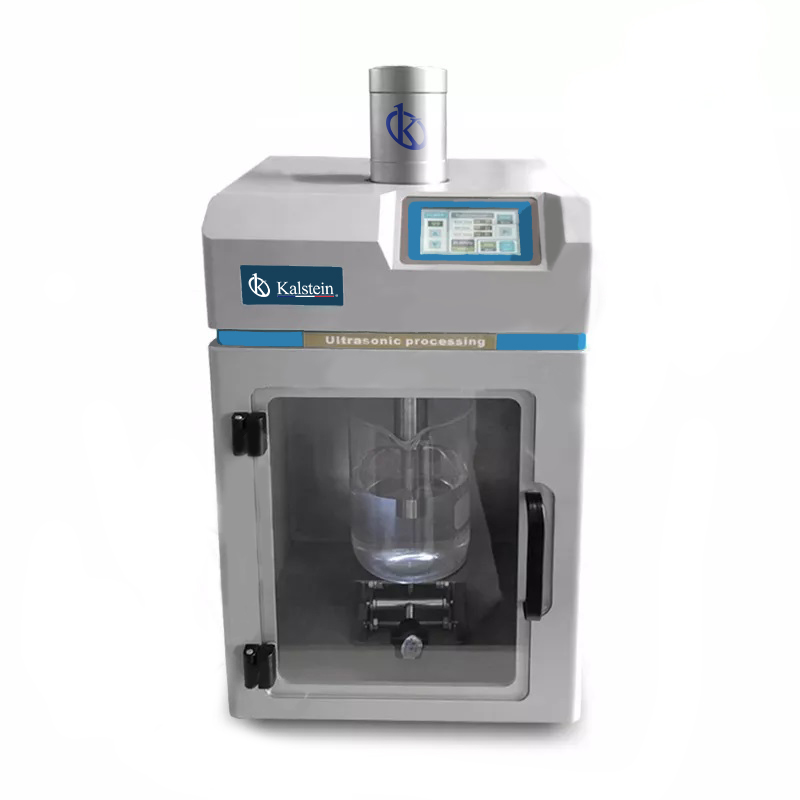

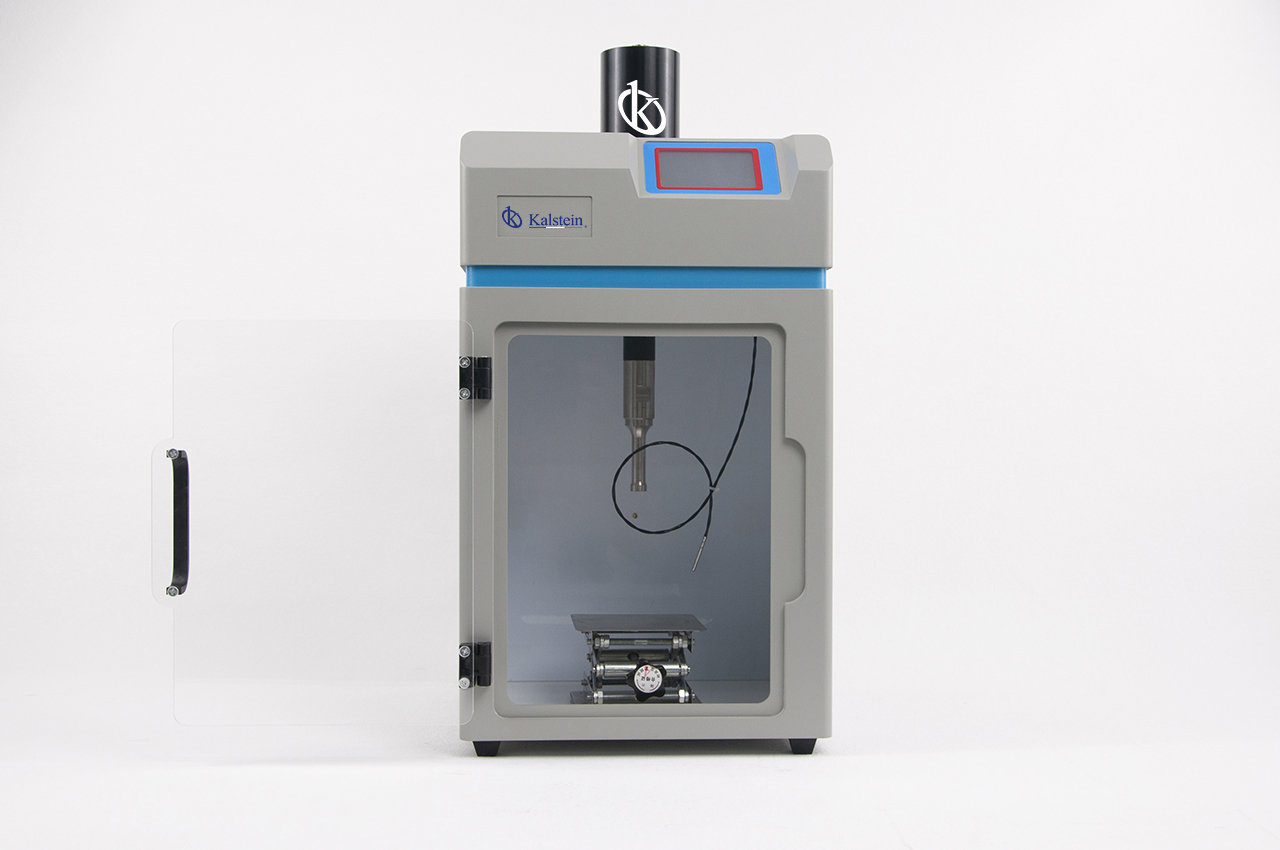

The Digital Intelligent Ultrasonic Homogenizer Processor Sonicator YR05837 // YR05839 stands out as a vital instrument for laboratories prioritizing precision and efficiency in processing solid-liquid samples. This cutting-edge ultrasonic equipment excels in performing tasks such as cell lysis, emulsification, nanoparticle dispersion, and accelerating chemical reactions. With an advanced digital interface and a fully automated control system, users can fine-tune ultrasonic power from 0 to 100%, tailoring each process to the specific needs of their samples. The user-friendly 3.2-inch LCD touch screen ensures efficient operation and meticulous tracking, while the capacity to store up to eight data sets offers unbeatable convenience.
Market Price
The market price for the Intelligent Digital Sonicator YR05837 // YR05839 falls within an average range of $2,200 to $3,100 USD, showcasing its advanced technology and superior performance compared to other ultrasonic homogenizers. The price varies based on additional configurations like optional probes, water cooling systems, and the RS422 to USB software package, reflecting the equipment’s versatility and high-end functionality.
Frequently Asked Questions
- What types of samples can this device process?
The YR05837 // YR05839 is suitable for a broad spectrum of samples, including animal and plant cells, nanoparticles, emulsions, and soil samples.
- Is it safe for sensitive samples?
Yes, the device’s precise power and temperature controls make it safe for delicate samples, minimizing the risk of thermal or mechanical damage.
Advantages and Disadvantages
The YR05837 // YR05839 offers significant advantages, including versatility, exceptional precision, and automated safety features. It supports both continuous and pulse operation modes, with automatic frequency compensation ensuring consistent results. However, its physical size may not be ideal for laboratories with limited space, although the soundproof box effectively reduces operational noise.
Field Use
The YR05837 // YR05839 is widely used across various scientific disciplines, including biotechnology, materials chemistry, and medicine. It aids in DNA and protein extraction in molecular biology and is perfect for dispersing carbon nanotubes and other advanced compounds in chemistry. This equipment’s capacity to handle volumes from 50 ml to 3000 ml makes it an indispensable asset in both research and industrial laboratories.
Recommendations
Regular maintenance is crucial for optimal performance and extended longevity of the equipment. This includes cleaning the probes and checking the cooling system. For more information or to explore purchasing options, you can request a quote or generate one instantly through our Kalstein Plus platform. Enhance the quality and accuracy of your experimental processes with our state-of-the-art ultrasonic technology.
Technical Specifications
Model No. | YR05837 | YR05837-1 |
Working Frequency | 19~25KHz Automatic compensation | |
Ultrasonic Power | 950W | 650W |
Processing Capacity | 100~1200ml | 50~800ml |
Power adjustable | 0~100% | |
Timer | LCD Touch screen, adjustable from 1s to 99h | |
Pulser | Digital, closed loop, open loop, 1s to 99min to choose and set | |
Ultrasonic mode | Pulse mode / Continuous mode | |
Standard Probe | Φ13mm | Φ6mm |
Optional Probe | Φ3/6/8/10/16/18mm |
Φ3/6/8/13/16mm
|
Energy Converter | CV33, PZT lead zirconate titanate piezoelectric ceramics | |
Probe Material | Titanium Alloy TI-6AL-4V | |
Cabinet lighting | yes | |
Lifting table | yes | |
Machine size | 245*365*245mm | |
Sound Proof box size | 240*250*390mm | |
Power Supply | AC220/50Hz,110V/60Hz | |
Optional Configuration | Magnetic stirring, cooling water circulation system, etc; Computer Software package: RS422 to USB data connection limit (including driver), computer monitoring driver temperature sensor Wrench: used to install and remove the horn Test tube rack |
Model No. | YR05838 | YR05839 |
Working Frequency | 19~25KHz Automatic compensation | |
Ultrasonic Power | 1200W | 1800W |
Processing Capacity | 100~2000ml | 100~3000ml |
Power adjustable | 0~100% | |
Timer | LCD Touch screen, adjustable from 1s to 99h | |
Pulser | Digital, closed loop, open loop, 1s to 99min to choose and set | |
Ultrasonic mode | Pulse mode / Continuous mode | |
Standard Probe | Φ16mm | Φ20mm |
Optional Probe | Φ3/6/8/10/13/18/20mm |
Φ3/6/8/10/13/16/18/25mm
|
Energy Converter | CV33, PZT lead zirconate titanate piezoelectric ceramics | |
Probe Material | Titanium Alloy TI-6AL-4V | |
Cabinet lighting | yes | |
Lifting table | yes | |
Machine size | 245*365*245mm | |
Sound Proof box size | 240*250*390mm | |
Power Supply | AC220/50Hz,110V/60Hz | |
Optional Configuration | Magnetic stirring, cooling water circulation system, etc; Computer Software package: RS422 to USB data connection limit (including driver), computer monitoring driver temperature sensor Wrench: used to install and remove the horn Test tube rack |
