High cost-effective Portable Colorimeter YR05515

ManufacturerKalstein

Description

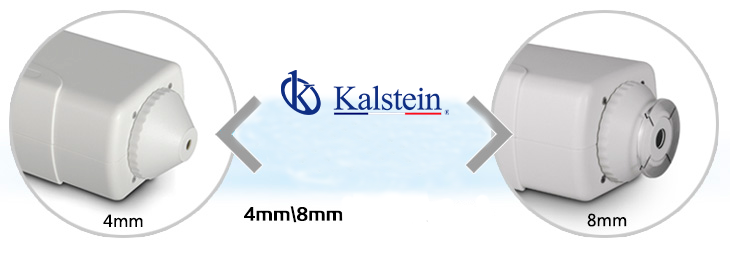

The High cost-effective Portable Colorimeter YR05515 is a cutting-edge tool designed for precision and efficiency, ensuring accurate color measurement while offering great value for money. It’s equipped with two versatile apertures — a 4mm tip aperture and an 8mm flat aperture — allowing for seamless measurement of concave and large plane samples. The CIE LAB color space enables easy evaluation of color differences, making it an indispensable asset in industries such as plastics, electronics, textiles, and more. With its handheld, sophisticated design and rechargeable high-capacity lithium-ion battery, this colorimeter promises convenience and longevity.

Market Pricing

The price of portable colorimeters varies significantly across the market, with averages typically falling between 280 USD and 840 USD. Pricing depends on features and precision, which positions the YR05515 as an exceptional choice with its affordable yet robust offering. For exact pricing or to request a quote, consider using the Kalstein Plus platform for a personalized estimate tailored to your needs.

Frequently Asked Questions

What industries can benefit from using the YR05515 Colorimeter? The YR05515 is suitable for multiple applications, including plastics, textiles, inks, food, and more, making it versatile across diverse fields.

How often does the device need calibration? Thanks to its built-in white plate parameters, the device does not require frequent calibration, facilitating rapid measurements.

Advantages and Disadvantages

Advantages:

  • High precision with two aperture options for enhanced measurement flexibility.
  • Long-lasting with more than 1.6 million measurements lifespan.
  • Portable and lightweight design for ease of transport and use.

Disadvantages:

  • Initial configuration may require some familiarization for new users.
  • Limited to the color spaces supported (primarily CIE LAB).

Product Use in the Field

This portable colorimeter is particularly effective in quality control processes, ensuring color consistency and accuracy across production batches. Its handheld design makes it ideal for on-site evaluations, providing immediate feedback for adjustments. In academic or research settings, the YR05515 aids in experiments requiring precise color differentiation.

Recommendations

To maximize the use of the YR05515, regularly update your color standards stored within the device. Store the colorimeter in a safe, dry place to maintain its operational integrity, and leverage the rechargeable battery to avoid interruptions during extensive measurement sessions.

Features

  • Built-in white plate parameters eliminating frequent calibration needs.
  • Dual aperture design for flexible sample measurement.
  • High-capacity rechargeable lithium-ion battery offering long-lasting use.
  • Lightweight and user-friendly handheld design.
  • Sophisticated appearance with traditional and modern aesthetics.

Technical Specifications

Model YR05515
Illuminating / Viewing Geometry D/8°
Standard CIE No.15, GB/T 3978
Sensor silicon photodiode
Measuring Aperture 4mm
Color Space CIE LAB, Lch
Observer CIE 10°
Illuminant D65
Display Data Colorimetric Value,
Color Difference Value Storage
Temperature /Graph, PASS/FAIL Result, Color Offset
Measuring Time 1.5 s
Repeatability ΔE*ab ≤ 0.03 (Average of 30 measurements
of standard white plate)
Dimension 205*67*80mm
Errors between each instrument ΔE*ab 0.4
Weight 400g
Battery rechargeable lithium-ion
battery 3.7V @ 3200mAh
Lamp Life 5 years, more than 1.6 million measurements
Screen TFT 2.8 inch(16:9)

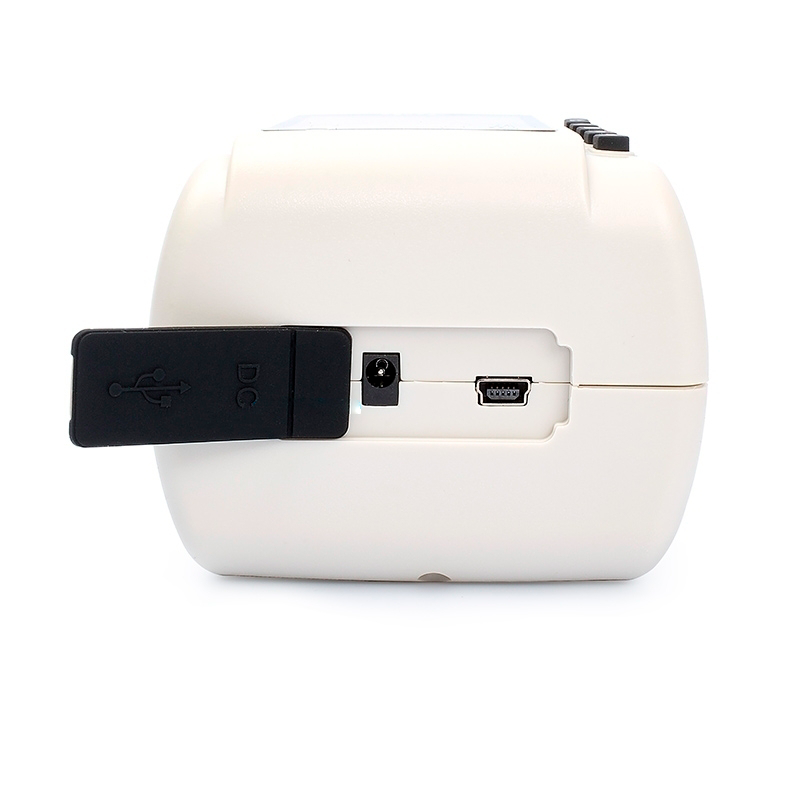

Interface USB
Storage 100 Standards,
10000 Samples
Operating Temperature 0-40°C(32-104°F)
Storage Temperature -20-50°C(-4-122°F)
Optional Accessory miniature thermal
printer, powder test box

Additional information

Weight 1 kg
