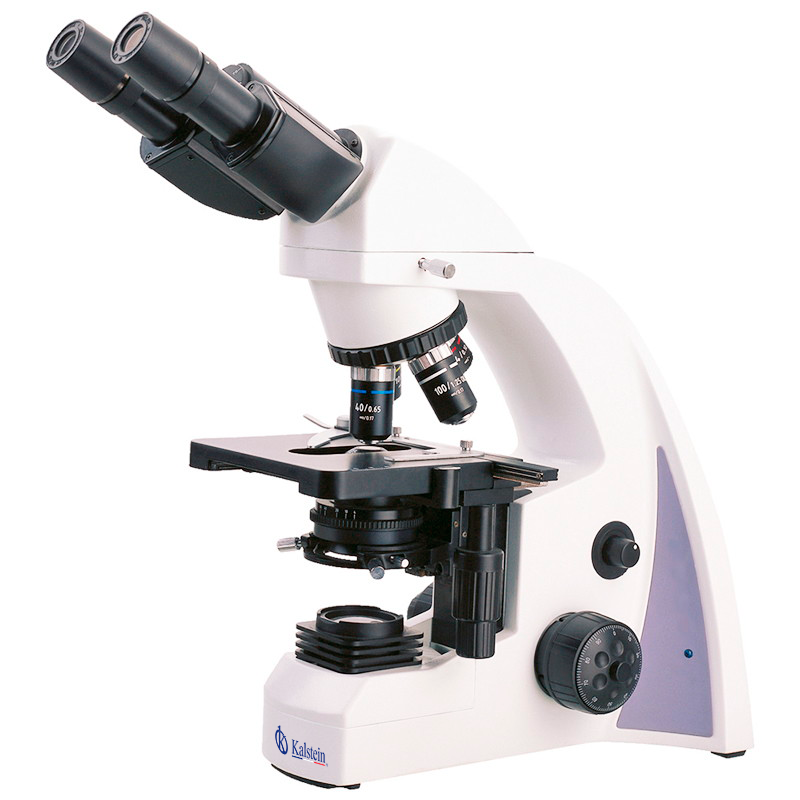

Laboratory Microscope YR0237
Laboratory Microscope YR0237 — Kalstein laboratory equipment with technical specifications, advanced features, and certified professional solutions for scientific use.
The Laboratory Microscope YR0237 is a feature-rich optical device tailored for professional and academic use. Its Seidentopf Binocular and Trinocular Heads offer flexibility and comfort with a 30-degree inclination and an adjustable interpupillary distance of 52-75mm. This microscope is equipped with infinity semi-plan achromatic objectives (4x, 10x, 40x, 100x) ensuring sharp and clear images suitable for a wide variety of applications. The adjustable brightness and S-LED illumination provide optimal lighting for detailed observations. The mechanical stage and focusing mechanisms maximize precision, making it an ideal choice for laboratories striving for excellence in microscopy.
Market Price
The Laboratory Microscope YR0237 is competitively priced in the market. On average, these advanced microscopes range from $600 to $1100, depending on specific configurations and included accessories. This range ensures that the YR0237 is an affordable yet high-performing option for educational institutions, research laboratories, and medical facilities. Our pricing is aligned with industry standards while providing superior value.
Frequently Asked Questions
What type of applications is this microscope suitable for? The YR0237 is perfect for biological, clinical, and educational settings where high-quality imaging is essential.
Does it support both binocular and trinocular head configurations? Yes, the YR0237 model supports both configurations, providing versatility for various research needs.
Pros and Cons
The main advantages of the YR0237 include its high-quality optics, ergonomic design, and flexible configuration options. Limitations might include the requirement for occasional maintenance and calibration to ensure optimal performance, which is typical for high-precision instruments.
Field Use
In real-world scenarios, such as biology labs or medical diagnostics, this microscope stands out due to its precise focus adjustments and superior image clarity. Its robust build ensures stability and longevity, essential for demanding laboratory environments.
Recommendations
To maximize the lifespan and performance of the YR0237, it is recommended to clean the lenses regularly with appropriate solutions and store the microscope in a dust-free environment. Users are encouraged to periodically check the calibration and adjust settings for specific observation tasks.
Features
- Binocular or Trinocular Head options
- Infinity Semi-Plan Achromatic Objectives
- Adjustable Center Condenser
- Coarse & fine focusing mechanism
- S-LED Adjustable Illumination
- Multiple optional accessories for various research needs
Technical Specifications
| Model | YR0237 | YR0237-1 | |
| Head | Seidentopf Binocular Head, Inclined at 30°, Interpupillary Distance 52-75mm,Eyepiece Tubes Rotated 180° Up & Down | o | |
| Seidentopf Trinocular Head, Inclined at 30°, Interpupillary Distance 52-75mm,Eyepiece Tubes Rotated 180° Up & Down | o | ||
| Eyepiece | Wide Field Eyepiece WF10x/18mm | ||
| Objective | Infinite Semi-Plan Achromatic Objective 4x,10x,40x,100x | ||
| Nosepiece | Backward Quadruple Nosepiece | ||
| Stage | Double Layer Mechanical Stage, Size 140×140mm, Moving Range 75×50mm | ||
| Condenser | Sliding-in Center Adjustable Condenser N.A.1.25 | ||
| Focusing | Coaxial Coarse & Fine Adjustment, Moving Range 20mm | ||
| Illumination | S-LED Illumination, Adjustable Brightness | ||
| Laboratory Biological Microscope Optional Accessories | |||
| Eyepiece | WF10x/20mm, Diopter Adjustable | YR0237-1-op1 | |
| Objective | Infinity Plan Achromatic Objective 4x | YR0237-1-op2 | |
| Infinity Plan Achromatic Objective 10x | YR0237-1-op3 | ||
| Infinity Plan Achromatic Objective 40x | YR0237-1-op4 | ||
| Infinity Plan Achromatic Objective 100x | YR0237-1-op5 | ||
| Illumination | 6V20W Halogen Lamp, Brightness Adjustable | YR0237-1-op6 | |
| Dark Field | Dark Field Condenser, Dry, N.A.0.7~0.9 | YR0237-1-op7 | |
| Dark Field Condenser,Immersion, N.A.1.25~1.36 | YR0237-1-op8 | ||
| Dark Field Objective, Infinity Plan 100X, | YR0237-1-op9 | ||
| ForImmersion Dark Field Observation | |||
| Dark Field Objective, Infinity Plan 100X, With Iris Diaphragm | YR0237-1-op10 | ||
| ForImmersion Dark Field Observation | |||
| Phase Contrast | Infinity Plan Turret Phase Contrast Set | YR0237-1-op11 | |
| --Infinity Plan Turret Phase Contrast Condenser | |||
| --Ininity Plan Phase Contrast Objective 4x,10x,40x,100x | |||
| --Centering Telescope 10x | |||
| Infinity Achromatic Turret Phase Contrast Set | YR0237-1-op12 | ||
| --Infinity Achromatic Turret Phase Contrast Condenser | |||
| --IninityAchromatic Phase Contrast Objective 4x,10x,40x,100x | |||
| --Centering Telescope 10x | |||
| LED EPI-Fluorescent Kit | EPI Light 3W LED 465~475nm, B Excite Filter BP460~490 | YR0237-1-op13 | |
| EPI Light 3W LED 525~530nm, G Excite Filter BP510~550 | YR0237-1-op14 | ||
Technical specifications
| Manufacturer | Kalstein |
|---|
