Description

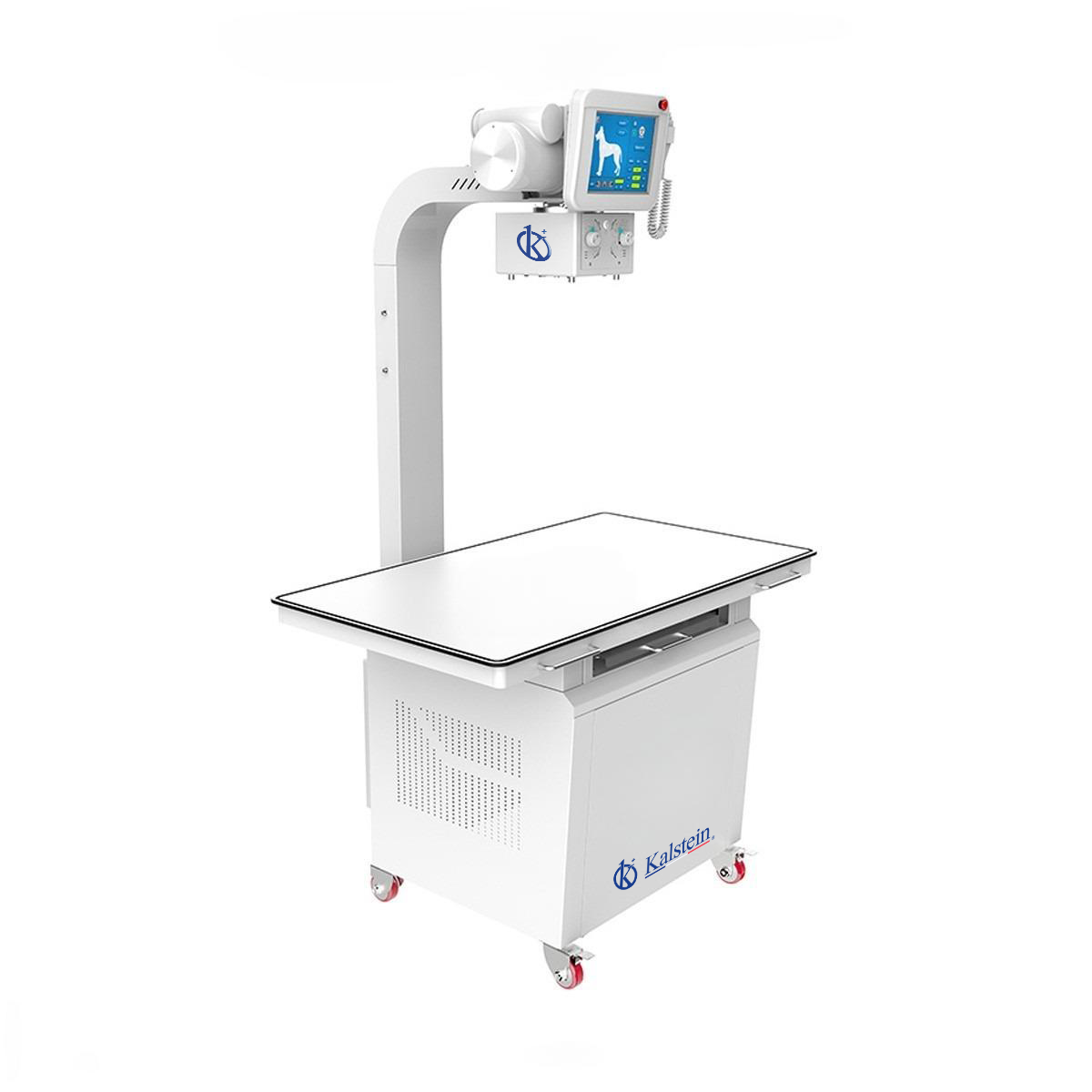

The Veterinary Digital X-Ray (DR) YR06162 offers cutting-edge imaging technology tailored for veterinary needs. Equipped with a 200mA HF generator and console, collimator, Toshiba’s highly acclaimed X-ray tube (model 7239), a pet-specific table, JPI Grid, and a flat panel detector, it assures precision and efficiency. A reliable computer and LCD complete this advanced system, ensuring accurate diagnostics in varied veterinary scenarios.
Market Price
The price of digital X-ray systems can vary significantly depending on features and technology. On average, the market spans from $34,000 to $34,800. These estimates provide a benchmark to guide potential buyers.
Frequently Asked Questions
What is the warranty period for the Veterinary Digital X-Ray (DR) YR06162?
Typically, this system comes with a one-year warranty covering major components.
Is the system compatible with existing clinic software?
The system offers an RS-232 communication interface, ensuring seamless integration with most current software solutions.
Advantages and Disadvantages
Advantages: The robust 16kW output and precise inverter frequency of ≥30kHz provide superior imaging. Automatic capacity lock and fault diagnosis ensure high-operational safety standards.
Disadvantages: Initial installation might require expert setup to ensure optimal performance, leading to additional initial costs.
Product Use in the Field
The Veterinary Digital X-Ray (DR) YR06162 enhances clinical diagnostics, enabling veterinarians to perform high-quality imaging efficiently. Its rapid exposure time range, from 0.0025s to 6.4s, allows swift and accurate imaging even in the most demanding situations.
Recommendations
For optimal use, ensure routine calibration and maintenance. The self-protection features are designed to minimize wear and tear, prolonging system longevity.
Features
- 200mA HF generator and console
- Collimator and Toshiba 7239 X-ray tube
- Specialized pet table
- JPI grid with flat panel detector
- Complete with computer and LCD
Technical Specifications
| Model | YR06162 |
| Maximum output power | 16kW |
| Input voltage range | AC 220V±22V |
| Applicable support | Radiography |
| Inverter frequency | ≥30kHz |
| Tube voltage range of radiography | 40kv~125kv |
| Range of tube current | 16~200mA |
| Range of exposure time | 0.0025s~6.4s |
| mAs range | 0.5mAs~320mAs |
| Communication interface | RS-232 |
| Other | Capacity lock automatically, fault diagnosis automatically, self-protection |
| Max. Tube voltage | 125kV |
| Focus | Small focus:1.0mm Large focus:2.0mm |
| Anode input power | Small focus:20KW Large focus:40KW |
| Anode speed | 2800 R/M |
| Target angle | 17.5° |
| Anode heat content | 100kJ(140kHU) |
