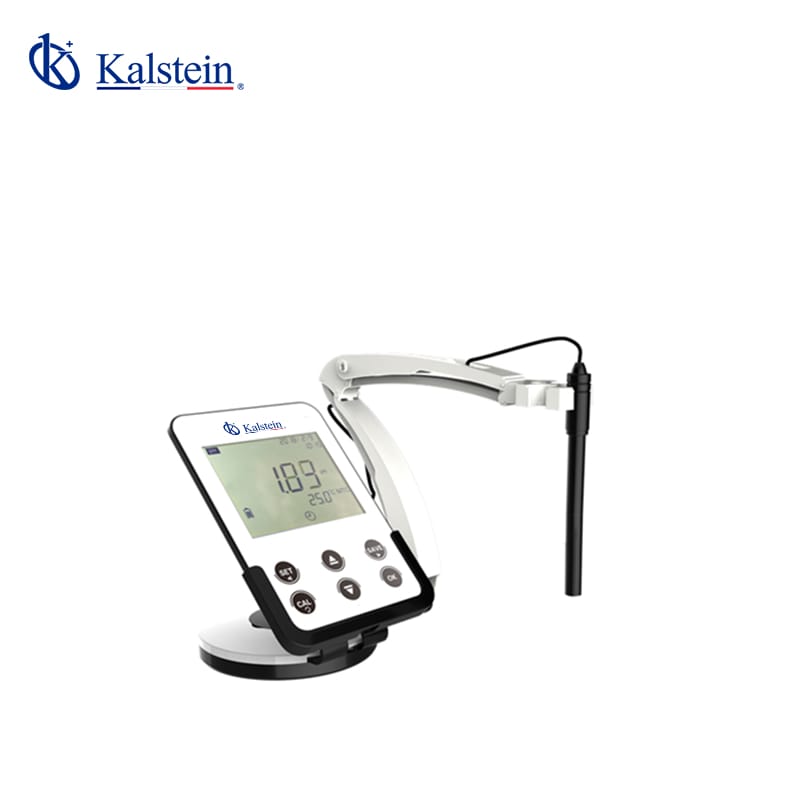

YR01836 Benchtop pH / Conductivity Meter

ManufacturerKalstein

Description

The YR01836 Benchtop pH / Conductivity Meter is an advanced instrument designed for precise measurement of pH levels, conductivity, TDS, salinity, and resistivity. Featuring a bright 5-inch LCD screen, it offers clear readings from a 150° viewing angle. The device’s built-in microprocessor offers intelligent functionality, including automatic calibration and temperature compensation, as well as data storage and a USB output for seamless data transfer. With a rechargeable battery that lasts up to 30 hours and an automatic power-off feature, this meter is both powerful and user-friendly. Enhance your laboratory’s capabilities with this reliable instrument, and request a quote today or generate an automatic quotation through the Kalstein Plus platform.

Market Price

The YR01836 Benchtop pH / Conductivity Meter typically falls within the market price range of $500 to $800 USD. This places it competitively among other high-quality meters, providing excellent value for its advanced features and robust performance.

Frequently Asked Questions

  • What is the battery life of the YR01836 meter? The rechargeable battery can last up to 30 hours under continuous use.
  • Can the meter store previous calibration data? Yes, it can automatically recognize and retrieve calibration data from connected electrodes with built-in chips.
  • Is the display easy to read from different angles? Yes, the 5-inch LCD screen is designed with a 150° viewing angle for optimal visibility.

Advantages and Disadvantages

The YR01836 meter offers several advantages, including high measurement accuracy, versatility in measuring various parameters, and ease of use. Its automatic calibration and data storage features are particularly beneficial. However, its advanced features might require a short learning curve for first-time users.

Product Use in the Field

This benchtop meter is ideal for laboratory environments where accurate pH and conductivity measurements are critical. It is frequently used in water quality testing, environmental monitoring, and research applications. The meter’s ability to switch between different measurement modes and store multiple data sets makes it a reliable choice for professionals in the field.

Recommendations

To maximize the performance of your YR01836 meter, ensure regular calibration using the appropriate buffers. Utilize the USB interfaces for efficient data management and keep the instrument clean to maintain its precision. By following these guidelines, you can ensure long-lasting accuracy and reliability.

Features

  • 5-inch LCD screen with wide viewing angle.
  • Intelligent microprocessor functions.
  • Automatic calibration with multiple buffer recognition.
  • Dual USB interfaces for data management.
  • Compatible with a wide range of electrodes and measurement modes.

Technical Specifications

Model YR01836
pH
Measuring range (-2 ~ 19.999)pH
Resolution 0.1/0.01pH
Accuracy ±0.02 pH
Input current ≤2×10-12 A
Input impendance ≥1×1012 Ω
Stability ±0.002 pH/3h
Temp. compensation range (0 ~ 100)ºC, auto/manual
mV
Measuring range -1999.9mV ~ 0 ~ 1999.9mV
Resolution 0.1mV
Accuracy ±0.03% FS
Conductivity
Measuring range
Conductivity: (0.00~20.00)μS/cm; (20.0~200.0)μS/cm; (200~2000)μS/cm; (2.00~20.00)mS/cm; (20.0~200.0)mS/cm
TDS: (0~100) g/L
Salinity:(0 ~ 100)ppt
Resistivity:(0 ~ 100)MΩ·cm
Resolution 0.01/0.1/1μS/cm; 0.01/0.1mS/cm
Accuracy Meter: ±1.50% FS; Electrode: ±1.0% FS
Temp. compensation range (0 ~ 50)ºC , auto
Electrode constant 0.1 / 1 / 10 cm-1
Temperature
Measuring range (-10 ~ 110)ºC
Resolution 0.1ºC
Accuracy 5~ 60ºC: range: ±0.4ºC; other range: ±0.8ºC
Calibration 1, 2, 3 point
Other Technical Parameters
Display 5-Inch white backlit LCD screen
Data storage 300 sets
Power DC 5V/1A
Communication connector Micro USB & Standard USB
Dimension/N.W. 180 x 130 x 14mm/280g
Working Condition
Environment Temp. 5 ~ 35 ºC
Environmental ≤85%
IP Grade IP54

Additional information

Weight 2,5 kg
