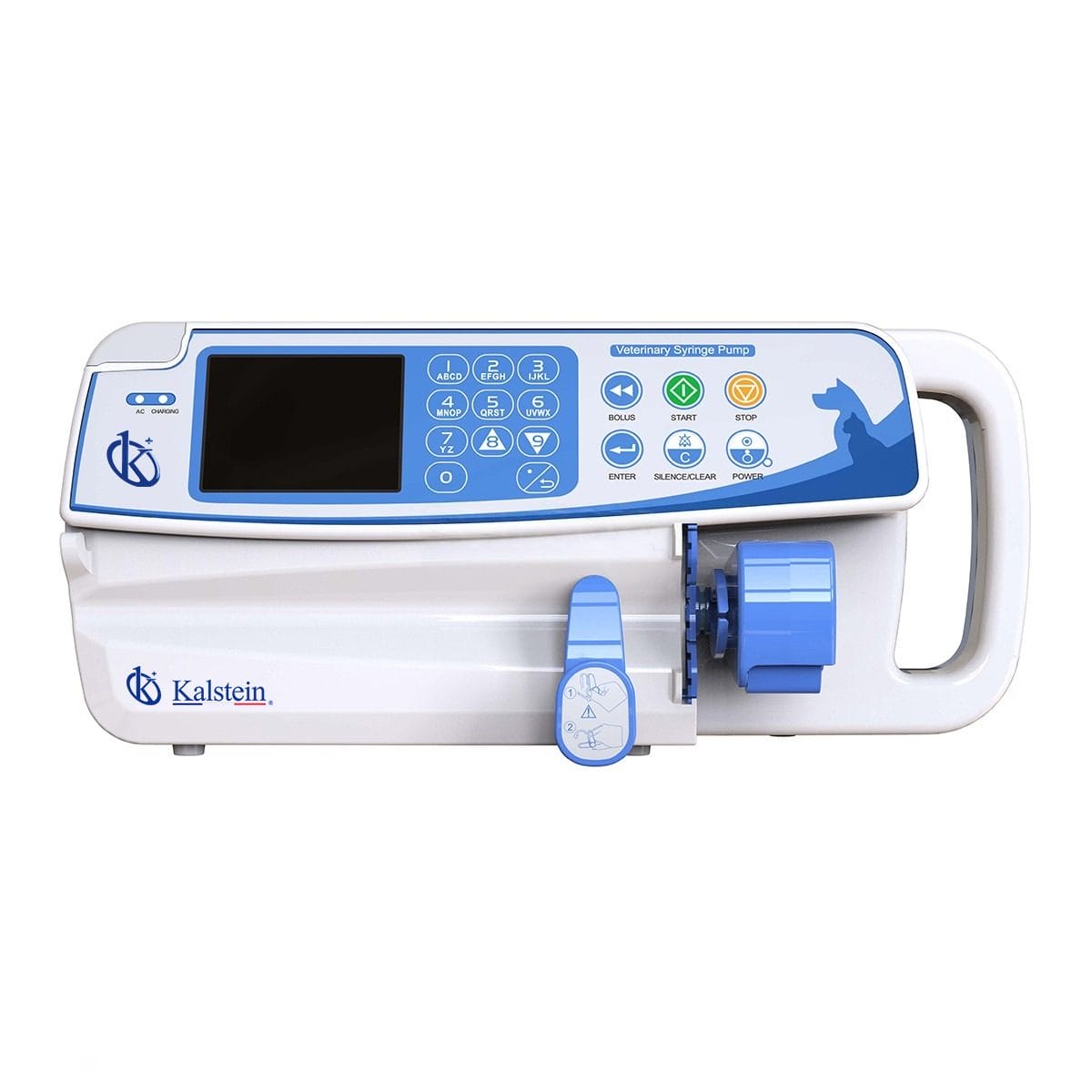

Veterinary Syringe Pump YR06185
Veterinary Syringe Pump YR06185 — equipo de laboratorio Kalstein con especificaciones técnicas, características avanzadas y soluciones profesionales certificadas para uso científico.
The Veterinary Syringe Pump YR06185 is an advanced device designed to ensure precise and safe infusion for veterinary applications. Equipped with a large, colorful LCD display, it offers comprehensive visibility over the infusion process. This device features unique intelligent syringe recognition technology, double CPU for enhanced safety, and dynamic pressure display, making it highly reliable. Its 90-degree rotatable pole clamp adds convenience for placement on various IV poles, while the RS232 interface and adjustable buzzer volume cater to diverse operational needs. It also includes various visual and audible alarms for infusion completion, low battery, and other crucial alerts.
Market Price
In the competitive market of veterinary medical devices, syringe pumps typically range between $800 and $1600 USD. These prices reflect the advanced features and the critical role these devices play in ensuring accurate and safe infusions in veterinary medicine.
Frequently Asked Questions
- What syringe sizes does the YR06185 accommodate? The pump supports various sterile syringes, including 5ml, 10ml, 20ml, 30ml, and 50ml/60ml sizes.
- Is the Veterinary Syringe Pump portable? Yes, with its lightweight design of 1.8 KG and rechargeable battery, it offers excellent portability for field use.
Advantages and Disadvantages
- Advantages: High precision with ±2% accuracy, multiple infusion modes (Dose, Time, Rate), and anti-bolus function for safety.
- Disadvantages: Some users might find the initial calibration process complex, requiring thorough training for effective use.
Field Use
The YR06185 is extensively used in veterinary clinics for administering precise doses of medication under controlled conditions. Its intelligent features allow veterinarians to customize infusion rates according to the animal's needs, ensuring optimal care and recovery. The robust design is suitable for busy clinical environments as well as portable applications.
Recommendations
To maintain the longevity and accuracy of the Veterinary Syringe Pump YR06185, regular calibration should be conducted. It is recommended to charge the battery fully before extensive use and adhere to the operating temperature range for optimal performance. If you’re interested in acquiring this device, consider generating an automatic quote through our Kalstein Plus platform for seamless purchasing.
Features
- Large colorful LCD display
- Intelligent syringe recognition technology
- Adjustable buzzer volume and visual/alarm systems
- Double CPU for safe infusion
- Infusion modes: Dose, Time, Rate
Technical Specifications
| Model | YR06185 |
| Infusion mode | Dose mode, Time mode, Rate mode |
| Applicable syringes | Various brands of sterile syringes: 5ml,10ml,20ml,30ml,50ml/60ml |
| Accuracy | ±2% (after syringe correct calibration) |
| Infusion rate | 5ml syringe: 0.1 -150ml/h 10ml syringe: 0.1 -300ml/h 20ml syringe: 0.1 -600ml/h 30ml syringe: 0.1 -900ml/h 50ml syringe: 0.1 -1500ml/h |
| Volume to be infused (VTBI) | 0～1000 ml |
| Volume Infused (∑) | 0～9999.9 ml |
| KVO rate | 0.1-2 ml/h adjustable; default value: 0.1ml/h |
| Bolus rate | 5ml syringe: 100-150ml/h 10ml syringe: 100-300ml/h 20ml syringe: 100-600ml/h 30ml syringe: 100-900ml/h 50ml syringe: 100 -1500ml/h |
| Alarms | Infusion completion, Empty, Occlusion, Near completion, Low battery, Syringe disengaged, No AC power supply, Battery exhausted, Malfunction etc. |
| Power supply | AC: 100~240V, 50/60Hz DC: 12V ±1.2V |
| Power consumption | 25VA |
| Nurse call alarm | Optional |
| Classification | Class I, type CF |
| Dimensions | 300(L)x 130(H)x 125 (W)mm, not including pole clamp |
| Net weight | 1.8KG |
| Waterproof Level | IPX3 |
| Occlusion pressure | (40.0-160.0)kpa |
| 3 adjustable occlusion pressure settings | low, middle and high |
| Battery | Rechargeable Li polymer battery,7.4V, 1900mAh Can operate more than 12 hours after fully charged at 5ml/h., temperature 25℃ |
| Battery recharge time | 10h with power on, 3h with power off |
| Operating conditions | Temperature: 5℃~40℃, Relative humidity: 10~95%, Atmosphere pressure: 86～106kPa |
| Transport conditions | Temperature: -20℃~+60℃, Relative humidity: 10~95%, Atmosphere pressure: 50～106kPa |
| Storage conditions | Temperature: -20℃~+45℃, Relative humidity: 10~95%, Atmosphere pressure: 50～106kPa |
Technical specifications
| Weight | 3 kg |
|---|---|
| Manufacturer | Kalstein |
