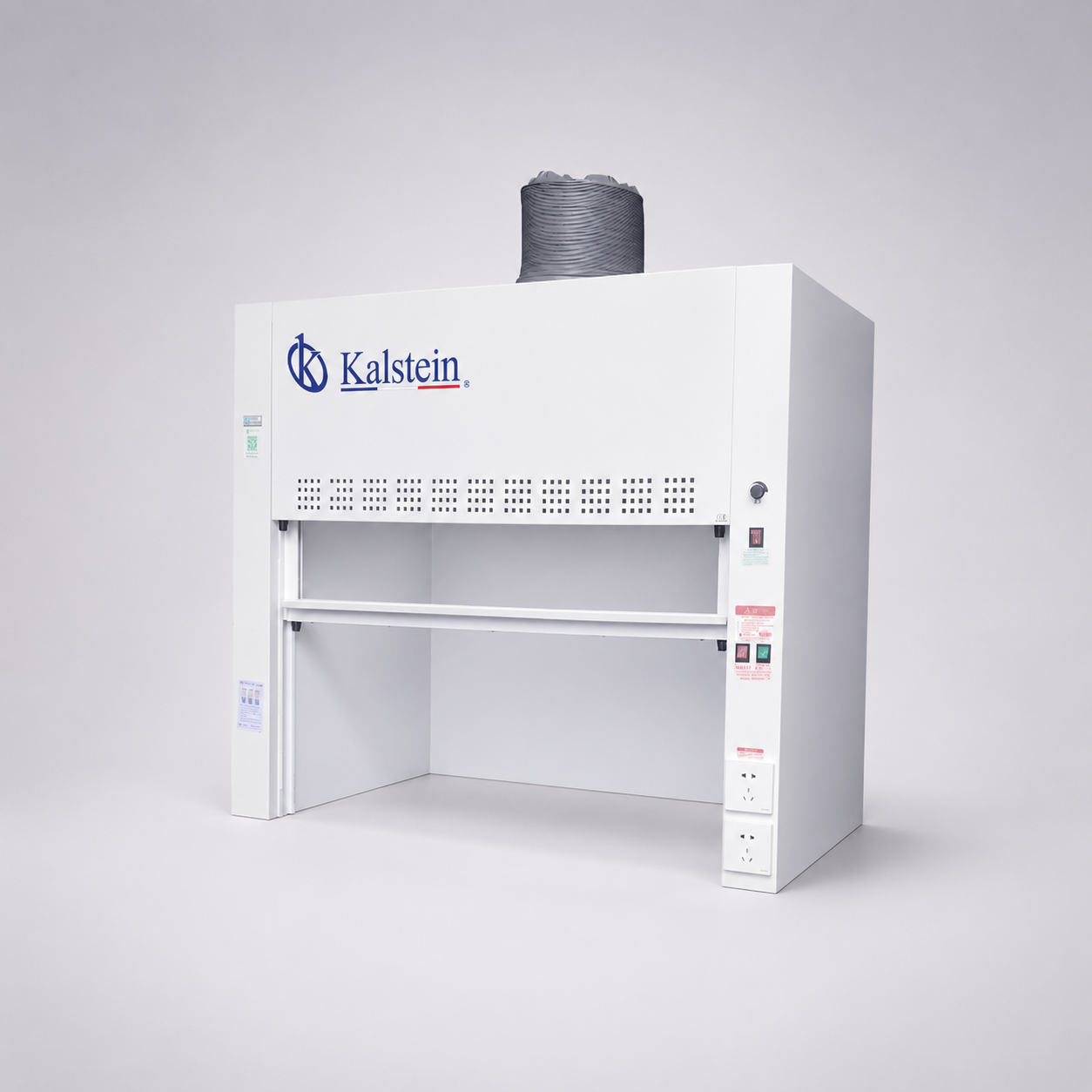

Kemikaliedragskåp YR05808 / YR05812

Epoxystål · syra- och basbeständigt · ≤ 60 dB

Kemikaliedragskåp YR05808 / YR05812

Kalstein YR05808 och YR05812 är kemikaliedragskåp i 1,2 mm kallvalsat stål med epoxi-pulverlack, motståndskraftigt mot starka syror och baser. Fenolharts-arbetsbänk, härdat glas och axialfläkt 0,4-0,6 m/s skyddar operatören vid buller under 60 dB.

Av Kalstein · Certifierad laboratorieutrustning

Interactive tour

Every component, engineered for your safety

Click the hotspots to explore the materials and systems that make this hood a reliable choice for basic chemistry.

Inspekterbara komponenter

  • Epoxy-coated steel bodyStructure

    Cold-rolled steel body with epoxy powder coating for chemical resistance.

  • Tempered glass windowSafety

    Transparent front barrier protects the operator while preserving visibility.

  • Axial blowerExtraction

    Adjustable blower captures vapors through the front opening.

  • Upper exhaust ductAirflow

    Captured fumes leave through the top duct toward extraction or exterior exhaust.

  • Phenolic resin worktopMaterials

    Durable 12.7 mm work surface for routine chemical handling.

  • LED lightingLighting

    Integrated lighting keeps reactions and glassware clearly visible.

Huvudfunktioner

  • Stålstomme 1,2 mm med epoxilack
  • Fronthastighet 0,4-0,6 m/s i tre lägen
  • Utsug 800-1000 m³/h · axialfläkt · övre kanal
  • Fenolharts-arbetsbänk 12,7 mm
  • Härdat säkerhetsglas med motvikt
  • LED 10 W ≥ 800 lux · buller ≤ 60 dB

Trippelt skydd · ingenjörslager

Operator protection

Front sash and horizontal room-air intake keep vapors and fumes inside the chamber and away from the operator.

  • Front sash
  • Room-air intake
  • Alarm on low flow
Face velocity
0.5 m/s
Noise level
≤ 60 dB
LED lighting
10 W

Structural durability

Cold-rolled steel with epoxy coating resists chemical spills and years of daily operation.

  • Epoxy coating
  • Phenolic worktop
  • Tempered glass
Steel gauge
1.2 mm
Worktop
12.7 mm
Tempered glass
5 mm

Versatile installation

Available in two widths and compatible with laboratory exhaust ducts up to 3 m.

  • 1300 mm width
  • 1800 mm width
  • Top duct output
m³/h airflow
800–1000
Duct length
3 m
Power
220 V

Luftflödeslägen · vad som händer i varje riktning

  • Low — Low airflow · 0.4 m/s

    Recommended for low-volatility solvents and general handling.

    Face velocity: 0.4 m/s

  • Medium — Medium airflow · 0.5 m/s

    Optimal balance for most chemistry protocols.

    Face velocity: 0.5 m/s

  • High — High airflow · 0.6 m/s

    Aggressive extraction for highly volatile or toxic vapors.

    Face velocity: 0.6 m/s

  • Auto — Automatic purge cycle

    Periodic full-power ventilation to purge residual vapors before shutdown.

    Airflow: ≤ 1000 m³/h

Tekniska specifikationer

ModellYR05808 / YR05812
KonstruktionCold-rolled steel 1.2 mm · epoxy powder coating
Fronthastighet0.4 – 0.6 m/s
Utsugningskapacitet800 – 1000 m³/h
Ljudnivå≤ 60 dB
BelysningLED 10 W
ArbetsbänkPhenolic resin 12.7 mm
FrontrutaTempered safety glass
YttermåttYR05808: 1300×850×2350 · YR05812: 1800×850×2350 mm
Strömförsörjning220 V / 50-60 Hz

Tillämpningar

  • Kemiundervisning
  • Kvalitetskontroll
  • Provberedning med syror/baser
  • Industri- och livsmedelskemi
  • Forskning med flyktiga lösningsmedel

Verkliga användningsfall · vägledda flöden

General chemistry laboratory

Everyday handling of solvents, acids and bases in teaching and research chemistry.

Typisk varaktighet: 30–90 min

  1. Open sash to working height
  2. Turn on fan and lighting
  3. Perform reactions inside the chamber
  4. Close containers and lower sash
  5. Purge before shutdown

Pharmaceutical compounding

Weighing and mixing of raw materials in compounding pharmacies.

Typisk varaktighet: 15–60 min

  1. Clean worktop and calibrate balance
  2. Introduce ingredients
  3. Weigh and mix inside the chamber
  4. Package and label
  5. Clean the fume hood

Analytical sample preparation

Sample digestion, extraction and preparation for chromatography or spectroscopy.

Typisk varaktighet: 20–120 min

  1. Prepare glassware
  2. Add solvents inside the hood
  3. Perform digestion or extraction
  4. Transfer sample to instrument
  5. Decontaminate

Fast quotation · 15 seconds

Add the YR05808 to your chemistry lab

Two widths, one quality standard. Receive full specification, delivery and installation in a single quote.

Få din offert på 15 sekunderKontakta försäljningVisa katalog

Vanliga frågor

För vilka kemikalier?

Grundkemi med starka syror och baser. För perklorsyra/fluorvätesyra välj YR05820-SS i rostfritt.

Skillnad YR05808/YR05812?

1300 mm vs 1800 mm bredd, samma konstruktion.

Extern kanal?

Ja, kanaliserat skåp anslutet till takutsug.

Buller?

≤ 60 dB vid operatörsläge på max.
