Understanding the Scientific Principles and Operation of the YR05200 Freeze Dryer

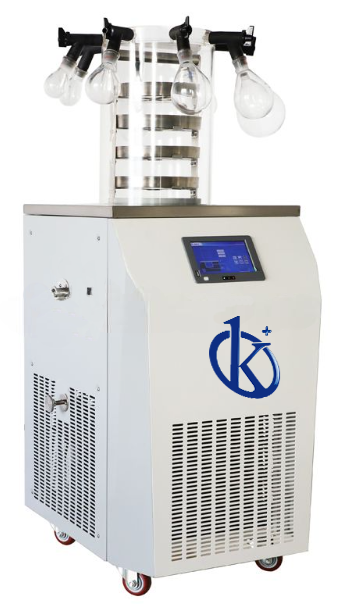

The YR05200 Vertical Electric Heating Laboratory Freeze Dryer is a sophisticated piece of laboratory equipment that facilitates the freeze-drying process, crucial in various fields including medicine, pharmacy, biological research, chemistry, and food preservation. This article delves into the scientific principles underpinning the operation of the YR05200, providing a comprehensive understanding of its design, functionality, and application.
Principles of Freeze-Drying
Freeze-drying, or lyophilization, is a preservation technique that removes moisture from a product after it is frozen, enabling long-term storage without compromising its biochemical properties. The process involves three main phases: freezing, primary drying, and secondary drying.
In the freezing phase, the product is cooled to a temperature where water forms ice crystals. During primary drying, the pressure is lowered, allowing sublimation, where ice transitions directly to vapor without passing through the liquid phase. Finally, secondary drying involves removing unfrozen water molecules, ensuring product stability.
Design Features of the YR05200
The YR05200 is designed with several key features that enhance its operation and efficiency:
- Process Fixation: The YR05200 incorporates advanced process fixation to ensure consistent results.
- Electric Shelf Heating Control: The unit features precise control over heating rates, critical for optimizing drying times.
- Touchscreen Interface: A 7-inch touchscreen interface allows for easy monitoring and adjustments during the lyophilization process.
- Cold Trap and Stainless Steel Operation Table: These components ensure optimal condensation and ease of cleaning.
- Pre-freezing Function: A large opening siphon facilitates effective pre-freezing of samples.
- Flexible Vacuum Switching: The system supports multiple vacuum units for versatility.
Technical Specifications of the YR05200
| Model | Frozen Area | Panel Material (Thickness) | Tray Material | Storage Temperature |
|---|---|---|---|---|
| YR05200 | 0.18m²/0.27m² | 10 mm | Ф240mm 4/6 Layers | -40 ~ +60°C |
| Cold Trap Temperature | Water Capture Capacity | Ultimate Vacuum | Power | Net Weight |
| ≤ 60 °C (No Load), Optional ≤ -80 °C (No Load) | 6 kg/24h | ≤ 5pa (No Load) | 1800w | 105 KG |
| Dimensions of the Central Unit | 630×580×1455mm | |||
Scientific Fundamentals of the YR05200
The YR05200 operates based on the physical and chemical principles of sublimation. Its design choices, such as the temperature ranges and vacuum capabilities, directly influence the efficiency of the freeze-drying process.
Key formulas governing the freeze-drying process include the Clausius-Clapeyron equation, which describes the relationship between pressure and temperature during phase changes. Understanding these principles enables operators to manipulate conditions for optimal results.
Installation and Initial Setup of the YR05200
Correct installation and initial setup are paramount for the efficient operation of the YR05200. Operators should follow a detailed checklist that includes:
- Unboxing and inspecting all components.
- Anchoring the unit to ensure stability and prevent vibrations during operation.
- Leveling the freeze dryer on a flat surface.
- Power-up sequence to check for functional integrity.
- Calibrating settings for the first run and validating measurements.
Common Troubleshooting Tips for the YR05200
Equipment Does Not Power On
Check power connections, ensure the outlet is functional, and verify the power switch is activated.
Error Code E-03 Appears
This may indicate a problem with the vacuum pressure; inspect seals and connections.
Inconsistent Drying Results
Check the temperature settings, ensure proper vacuum levels, and assess sample thickness.
Frequently Asked Questions
What are the key benefits of using the YR05200 in laboratory settings?
The YR05200 offers precise control over the freeze-drying process, ensuring the biochemical integrity of samples while maintaining efficiency in storage and processing.
How does the YR05200 compare to other freeze dryers?
Compared to other models, the YR05200 features advanced heating control, a larger frozen area, and a user-friendly interface, making it suitable for diverse applications.
What maintenance is required for the YR05200?
Regular cleaning of the cold trap, monitoring of vacuum levels, and checking for wear on seals and gaskets are essential for maintaining optimal performance.
Can the YR05200 handle biological samples?
Yes, the YR05200 is designed to effectively lyophilize biological samples, preserving their structure and function for further research.
What is the typical lifespan of the YR05200?
With proper maintenance, the YR05200 can have an operational lifespan of 10 years or more, depending on usage frequency and conditions.
Are there any optional accessories for the YR05200?
Yes, optional accessories include additional trays, specific software upgrades, and enhanced vacuum capabilities for specialized applications.
