Understanding the Operating Principle and Scientific Foundation of the YR06668 Atmosphere Furnace

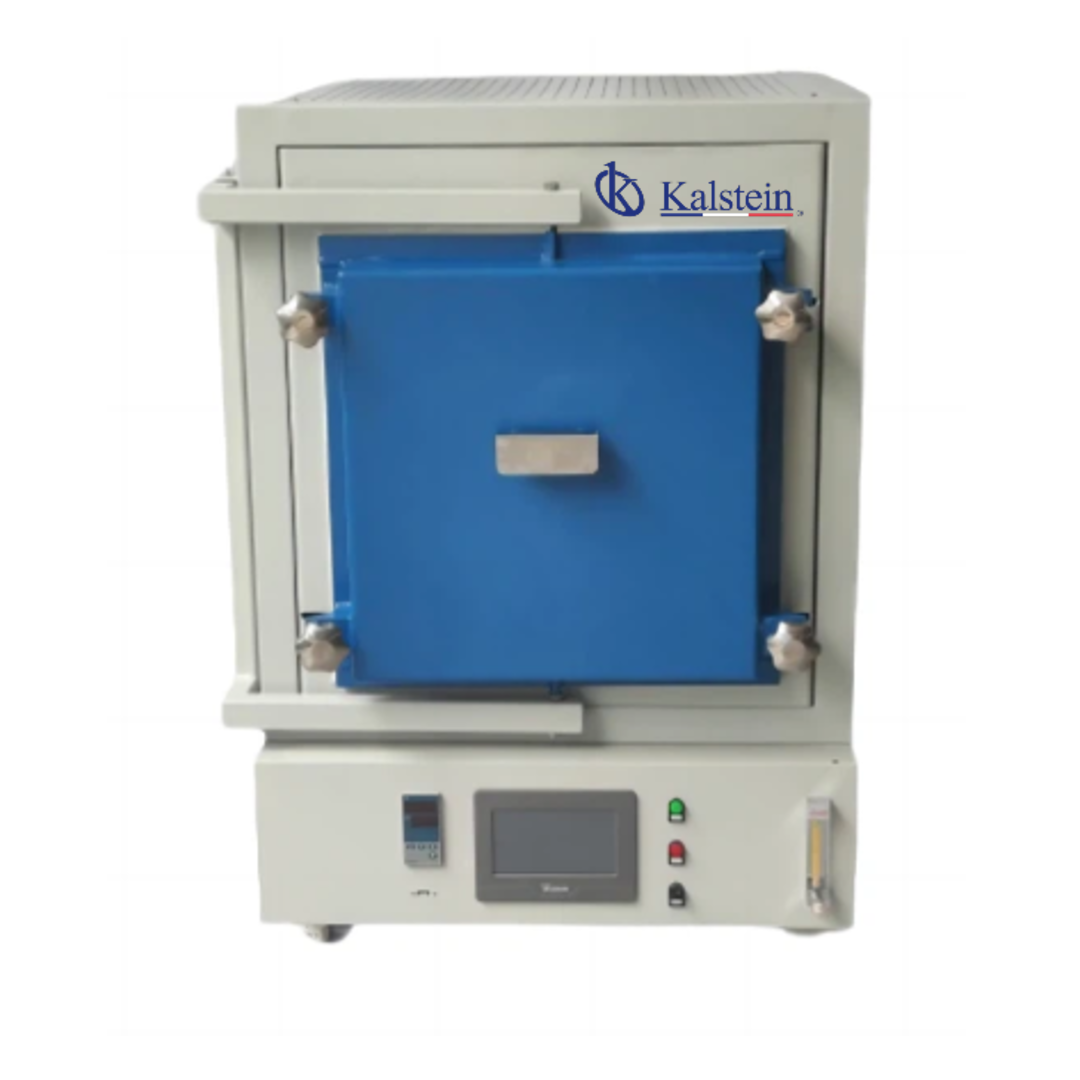

The YR06668 Atmosphere Furnace is a high-performance box-type furnace, specifically designed for advanced thermal processes where oxygen absence is critical. With a capacity of 36 liters and the ability to operate at temperatures up to 1300°C, this furnace is ideal for material science laboratories and metallurgical plants seeking extreme precision.
Technical Specifications of YR06668
| Feature | Specification |
|---|---|
| Model | YR06668 |
| Maximum Temperature (°C) | 1400 |
| Continuous Temperature (°C) | 1300 |
| Capacity (Liters) | 36 |
| Internal Dimensions (mm) | 400 * 300 * 300 |
| External Dimensions (mm) | 1020 * 730 * 1300 |
| Net Weight (kg) | 195 |
| Power (kW) | 16 |
| Voltage (V) | 380V (Three-phase) |
| Heating Elements | SiC (Silicon-Carbide) |
| Type of Thermocouple | Type S |
| Temperature Accuracy | +/- 1°C |
| Controller | PID Touch Screen |
| Vacuum Pressure (Mpa) | -0.1 |
| Certifications | CE / ISO9001 |
| Accessories | Gloves / Tongs / Trays |
Operating Principle of the YR06668 Atmosphere Furnace
The YR06668 operates on the principle of controlled atmosphere thermal processing, which is crucial for various applications that require the absence of oxygen. The primary purpose of this furnace is to facilitate reactions and processes that are sensitive to oxidation, allowing metals and other materials to be treated under inert conditions. The furnace employs nitrogen, argon, or helium atmospheres to achieve desired outcomes, thus ensuring that samples are processed effectively without unwanted reactions.
The scientific foundation behind the furnace’s operation relies on the thermodynamic properties of gases, which dictate how these gases behave under varying temperatures and pressures. One essential aspect to consider is the partial pressure of oxygen within the chamber, which must be minimized to prevent oxidation of samples. This is accomplished through an integrated vacuum system that can reach pressures below -0.1 Mpa, coupled with a precision manometer to monitor and manage the internal atmosphere.
Design and Technology Features
- Smart Touch Control: The YR06668 is equipped with a user-friendly touch screen that displays time/temperature curves and can store up to 50 programmable segments. This feature allows operators to set detailed thermal profiles tailored to specific processes.
- Data Management: An integrated USB port allows for the export of burn histories and analyses directly to a computer, facilitating record-keeping and process optimization.
- Double Layer Insulation: The air-cooled casing guarantees a safe exterior temperature of less than 60°C, ensuring safety for operators and surroundings.
- Vacuum System: Featuring precision gauges and needle valves, the vacuum system ensures a hermetic seal and proper inert atmosphere maintenance.
Applications and Use Cases of the YR06668
This furnace excels in various fields, particularly in advanced dental research clinics, metallurgy laboratories, and semiconductor development. These sectors require high precision and specific atmospheric conditions to ensure accurate results and effective material processing.
- Operational Tip: Before initiating the vacuum process, ensure that gas valves are closed to prevent damage to flow meters.
- Recommendation: Use the included SiC trays to avoid direct contact between samples and the chamber floor, ensuring uniform heating and reducing contamination risk.
Advantages and Disadvantages of the YR06668
Advantages:
- Thermal Accuracy: It provides stability of +/- 1°C, crucial for sensitive experiments.
- Mobility: Equipped with braking wheels for easy positioning within the laboratory.
- Safety Features: Includes an extra thermocouple for double protection against accidental overheating.
Disadvantages:
- Power Requirements: Installation necessitates a 16 kW electrical supply (Three-phase).
- Weight: Weighing nearly 200 kg, it requires an industrial-grade support surface.
Frequently Asked Questions
Can the YR06668 be used with regular air?
Yes, the furnace can operate as a conventional muffle furnace or under controlled atmosphere conditions, giving operators flexibility based on their specific applications.
What maintenance does the YR06668 require?
Regular maintenance primarily involves inspecting the door seals and cleaning the silicon-carbide heating elements to ensure optimal performance.
Is the YR06668 ready to use upon delivery?
Yes, the YR06668 comes with essential accessories such as thermal gloves and crucible tongs, making it ready for immediate use.
What gases can be used in the YR06668 furnace?
This furnace is designed to operate with nitrogen, argon, or helium environments, providing versatility for various thermal processes.
What is the maximum temperature the YR06668 can achieve?
The YR06668 can reach a maximum temperature of 1400°C, suitable for high-temperature applications.
