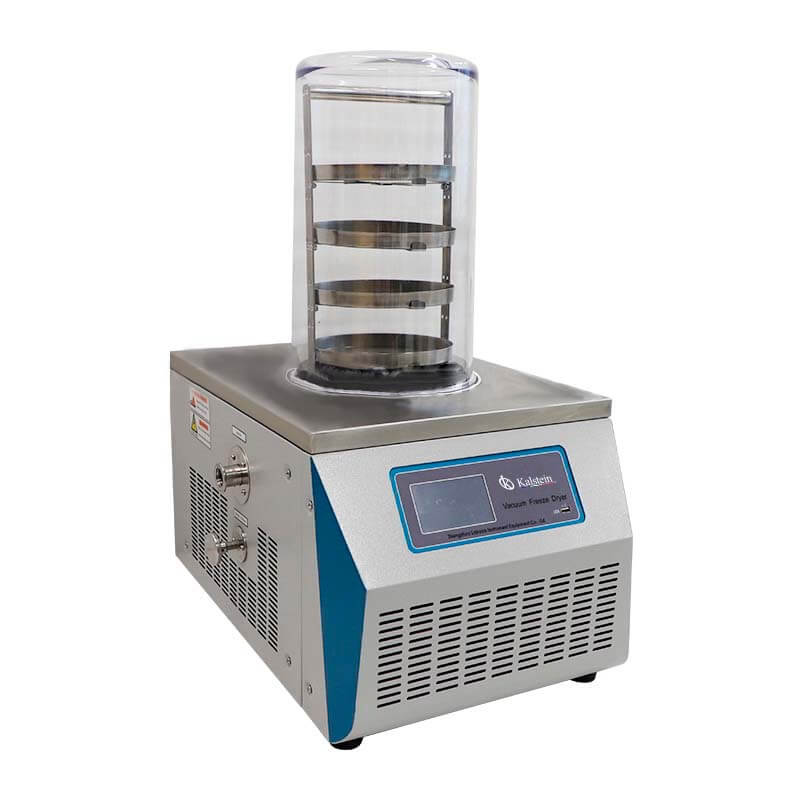

Understanding the Operating Principle and Scientific Fundamentals of the YR05186 Lyophilizer
The YR05186 lyophilizer is an essential piece of laboratory equipment widely utilized in various fields, including medicine, pharmaceuticals, biological research, and food production. This article delves into the operating principles and scientific fundamentals that underscore its functionality, enabling you to understand how to leverage this equipment effectively.
Principles of Lyophilization
Lyophilization, also known as freeze-drying, is a complex process that involves the removal of water from a product after it has been frozen. The core principle of lyophilization is sublimation, where ice transitions directly from solid to vapor without passing through the liquid state. This process preserves the structural integrity and biological activity of the material being dried.
The lyophilization process can be broken down into three main stages: freezing, primary drying, and secondary drying. During the freezing stage, the material is cooled, leading to the formation of ice crystals. In the primary drying stage, the pressure is reduced, and heat is applied, facilitating sublimation. Finally, in the secondary drying phase, any remaining moisture is removed by applying additional heat.
Technical Specifications of the YR05186 Lyophilizer
| Feature | Specification |
|---|---|
| Model | YR05186 |
| Lyophilization Area | 0.12㎡ |
| Condenser Capacity | 3-4 L/24h |
| Condenser Temperature | -55 ℃ (optional -80 ℃) |
| Vacuum Level | < 10 Pa |
| Tray Material | Ф200mm, 4 layers |
| Bulk Capacity | 1.2 l, 10 mm thickness |
| Voltage | 220 V, 50 Hz; 110 V, 50 Hz; 110 V, 60 Hz |
| Power | 700W |
| Dimensions | 460×625×(370+465) mm |
| Weight | 41 kg |
Scientific Fundamentals Behind the YR05186 Design Choices
The design of the YR05186 lyophilizer is tailored to optimize the freeze-drying process, incorporating principles of thermodynamics and fluid dynamics. The transparent plexiglass chamber allows operators to observe the drying process without disrupting conditions, ensuring the integrity of the sample.
Factors such as the condenser's large opening and the low noise compressor enhance the efficiency of the process. The use of stainless steel for the operation panel and drying chamber ensures durability and resistance to corrosion, maintaining a clean environment for sensitive samples.
Applications and Advantages of the YR05186
The YR05186 lyophilizer is versatile, serving various applications across multiple sectors. In the pharmaceutical industry, it is used to produce freeze-dried drugs that retain their potency and stability over time. In food technology, lyophilization preserves the nutritional and flavor characteristics of food products, making them shelf-stable.
Moreover, the YR05186 features advantages such as high-speed vacuum pumping, an intuitive LCD touchscreen for monitoring temperature and vacuum levels, and the capability to download historical data via USB. These features enable users to maintain optimal drying conditions and track performance metrics.
Common Troubleshooting Issues with the YR05186
While the YR05186 lyophilizer is designed for reliability, users may encounter troubleshooting issues. The following table outlines common symptoms, potential causes, and recommended solutions.
| Symptom | Cause | Solution |
|---|---|---|
| Equipment does not power on | Power supply issue | Check the power cord and outlet |
| Error code E-03 | Vacuum level too low | Inspect sealing and vacuum pump |
| Inconsistent drying results | Improper temperature settings | Calibrate temperature settings |
Frequently Asked Questions
What is the principle of operation of the YR05186 lyophilizer?
The YR05186 lyophilizer operates on the principle of sublimation, where water is removed from a frozen product by transitioning directly from solid to vapor, preserving the material's structure and activity.
What are the key advantages of using the YR05186 in a laboratory setting?
The YR05186 offers advantages such as real-time monitoring via an LCD screen, high-speed vacuum operation, and a durable design utilizing stainless steel, ensuring high performance and longevity.
How does the YR05186 lyophilizer accommodate different materials?
The YR05186 can handle diverse materials by adjusting the temperature, vacuum levels, and drying times based on the specific properties and requirements of the sample being processed.
What maintenance is required for the YR05186 lyophilizer?
Regular maintenance includes cleaning the condenser and trays, checking the vacuum system for leaks, and verifying that all operational parameters are functioning within specified limits.
How can I ensure optimal performance from the YR05186 during use?
To ensure optimal performance, calibrate the equipment before use, monitor the drying parameters continuously, and follow the recommended operational protocols for the specific materials being processed.
What types of samples can be lyophilized using the YR05186?
The YR05186 lyophilizer can process a variety of samples, including pharmaceuticals, biological materials, and food products, making it suitable for a range of applications.
What are the safety features of the YR05186 lyophilizer?
The YR05186 incorporates several safety features, including a robust vacuum system to minimize exposure to harmful gases and a temperature control system to prevent overheating of samples.
