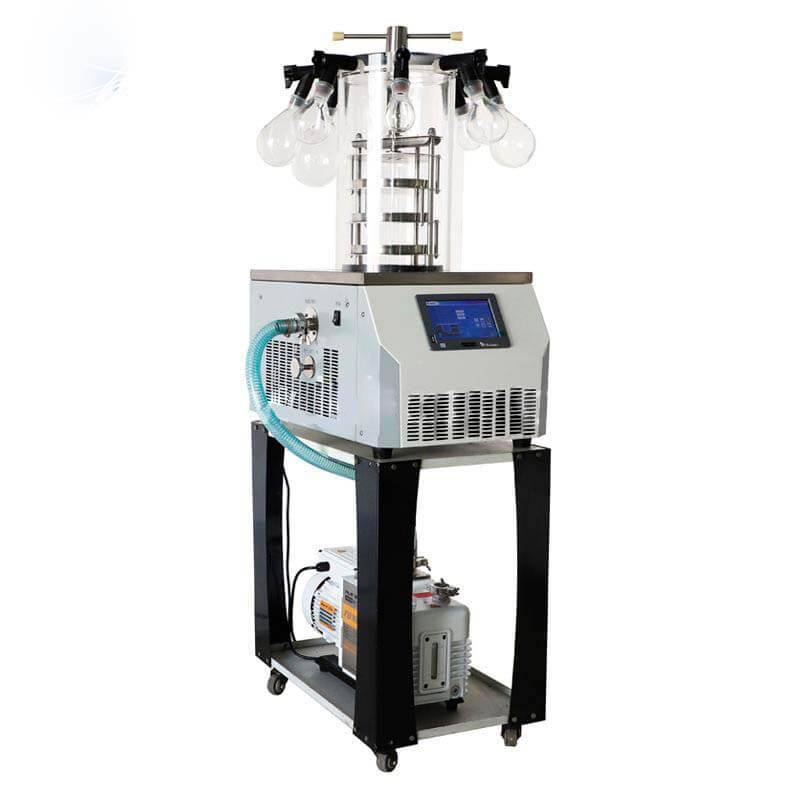

Installation and Commissioning Guide for the YR05189 Freeze Dryer
The YR05189 Freeze Dryer is a powerful tool designed for laboratory applications, particularly in the pharmaceutical, medical, and biological research fields. As with any sophisticated machinery, proper installation and commissioning are crucial for optimal performance. This guide outlines the steps necessary to successfully set up the YR05189, ensuring that users can begin their freeze-drying processes smoothly and efficiently.
Understanding the YR05189 Freeze Dryer
The YR05189 model is a benchtop laboratory freeze dryer that employs vacuum freeze-drying technology, also known as sublimation drying. This method allows for the preservation of materials by removing moisture while retaining their original properties. With a condenser temperature of -55 °C and a vacuum degree of less than 10 Pa, it is capable of handling a variety of samples in different applications.
Technical Specifications of the YR05189
| Specification | Detail |
|---|---|
| Model | YR05189 |
| Lyophilization Zone | 0.08 m² |
| Condenser Capacity | 3-4 L/24h |
| Condenser Temperature | -55 °C (optional -80 °C) |
| Vacuum Degree | < 10 Pa |
| Tray Dimensions | ¢180mm, 3 layers |
| Bulk Capacity | 0.8 L, 10 mm thickness |
| Vial Capacity (Φ12mm) | 560 pieces |
| Vial Capacity (Φ16mm) | 285 pieces |
| Vial Capacity (Φ22mm) | 165 pieces |
| Press Style | Manual |
| Collector | with 8 ports |
| Flask Sizes | 1000 ml, 500 ml, 250 ml, 100 ml |
| Cooling Type | Air, with airflow, ambient temperature ≤25 °C |
| Voltage | 220 V, 50 Hz; 110 V, 50 Hz; 110 V, 60 Hz |
| Power | 700 W |
| Host Dimensions | 460*625*(370+465) mm |
| Host Weight | 41 kg |
Unboxing and Initial Setup
When you receive your YR05189 Freeze Dryer, the first step is to unbox it carefully to avoid any damage. Here’s a checklist to follow:
- Inspect the packaging for any visible damage.
- Remove the freeze dryer from the box and place it on a stable surface.
- Check for the included accessories such as trays and manuals.
- Verify that all components are accounted for according to the manual.
After unboxing, ensure the installation area meets the necessary requirements, including:
- A stable, level surface free from vibrations.
- Proper ventilation to dissipate heat.
- Access to power outlets compliant with voltage specifications.
Power-Up Sequence and First Run Calibration
Once the YR05189 is positioned correctly, it’s time to power up:
- Connect the power cable to the unit and plug it into the outlet.
- Turn on the main power switch.
- Allow the system to go through its self-diagnostic checks.
- Once the diagnostics are complete, set the desired temperature and vacuum levels using the LCD interface.
Calibration is crucial for accurate operation. Follow these steps for first-run calibration:
- Prepare a test sample and load it into the drying chamber.
- Initiate the freeze-drying cycle and monitor the parameters.
- Adjust settings as necessary based on the performance during the test.
Common Setup Mistakes
To ensure a smooth operation of the YR05189, avoid these common installation mistakes:
- Incorrect leveling of the unit, which can affect the functioning.
- Failing to check the voltage compatibility before powering up.
- Neglecting to verify that the cooling system is operational.
Frequently Asked Questions
What are the key features of the YR05189 Freeze Dryer?
The YR05189 Freeze Dryer is equipped with CFC-free cooling, an LCD drying curve display in English, a large condenser opening with pre-freezing function, and low-noise compressor. These features enhance its efficiency and usability in laboratory settings.
How do I troubleshoot common error codes on the YR05189?
Common error codes can often be resolved by checking the user manual. Issues like low vacuum or temperature discrepancies can typically be fixed by recalibrating the system or ensuring proper sealing of the chamber.
How can I maintain my YR05189 Freeze Dryer?
Regular maintenance includes cleaning the condenser and drying chamber, checking seals, and performing routine calibration to ensure accuracy in results.
What types of samples can I process with the YR05189?
This freeze dryer is suitable for a variety of samples, including biological specimens, pharmaceuticals, and food products, ensuring preservation without altering their original properties.
Are there any optional accessories for the YR05189?
Yes, optional accessories include a nitrogen valve, an eutectic point testing device, and various communication interfaces that can enhance the functionality of the YR05189 for specific applications.
What is the warranty period for the YR05189 Freeze Dryer?
The YR05189 typically comes with a one-year warranty, covering any manufacturing defects. Extended service plans may also be available for long-term coverage.
How do I interpret the results from my YR05189 Freeze Dryer?
Results can be interpreted through the LCD display, which shows drying curves and parameters such as temperature and pressure. Understanding these curves is crucial for ensuring effective freeze-drying.
