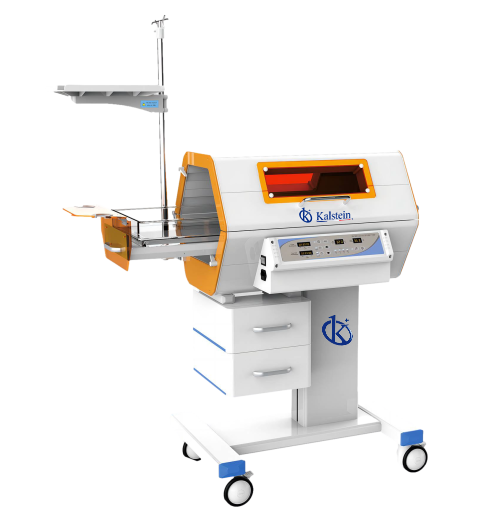

Installation and Commissioning Guide for the YR06223 Infant Phototherapy Unit
The YR06223 Infant Phototherapy Unit is designed for effective treatment of neonatal jaundice. Proper installation and commissioning are critical to ensure safe and efficient operation. This guide provides a detailed walkthrough to help you set up the YR06223 effectively.
Unboxing and Initial Setup
Before proceeding with the installation of the YR06223, it is essential to unbox the unit carefully. Ensure you have all the components listed in the packaging checklist.
- YR06223 Phototherapy Unit
- Power Supply Cord
- User Manual
- Calibration Tools
- Safety Guidelines
Inspect the unit for any visible damages that may have occurred during shipping. If any components are missing or damaged, contact your supplier.
Environmental Requirements
Installing the YR06223 requires specific environmental conditions to function optimally. The following parameters must be adhered to:
- Ambient Temperature: 18°C ~ 30°C
- Relative Humidity: 30% ~ 75%
- Atmospheric Pressure: 700hPa ~ 1060hPa
- Ventilation: Ensure adequate airflow around the unit.
Before installation, check that the installation site meets these requirements to avoid operational issues.
Setting Up the YR06223
Once the unboxing and environmental checks are complete, follow the steps below to set up the YR06223:
- Positioning: Place the unit on a stable surface, ensuring it is level.
- Securing: Use the base stabilizers to anchor the unit firmly.
- Power Connection: Connect the power supply cord to an appropriate AC power source (AC220V±10%, 50Hz±2%).
Double-check all connections before powering on the unit.
Power-Up Sequence
The power-up sequence for the YR06223 is crucial for ensuring that all systems are ready for operation. Follow these steps:
- Turn on the main power switch.
- Wait for the unit to perform an initial self-check; this will include the display of internal temperatures and operational status.
- Check the alarm system for any notifications or warnings.
- Initiate the calibration process using the calibration tools provided.
Make sure to fix any issues that the self-check might highlight.
First-Run Calibration
First-run calibration is essential to ensure accurate readings and effectiveness of phototherapy:
- Use the calibration tools to adjust the blue light wavelength to the recommended 420nm ~ 490nm.
- Ensure the light intensity is set to 3700μW/cm² for optimal treatment.
- Monitor both air and skin temperature displays to confirm they are functioning correctly within the range of 0-45.0°C.
Document all calibration settings for future reference.
Safety Protocols for Operation
Safety is paramount when operating the YR06223. The following protocols must be followed:
- Regularly check the alarm systems for power failure, probe failure, overheating, and fan failure.
- Ensure that the infant is monitored at all times during phototherapy sessions.
- Use the observation ports to assess the infant's response to treatment.
Establish a routine for safety checks after every use.
Technical Specifications of YR06223
| Specification | Details |
|---|---|
| Model | YR06223 |
| Power Supply | AC220V±10%, 50Hz±2% |
| Power Input | ≤400VA |
| Blue Light Wavelength | 420nm~490nm |
| Light Radiation | 3700μW/cm² |
| Up Side Light Radiation | 3300μW/cm² |
| Down Side Light Radiation | 2400μW/cm² |
| Life Span of Blue Light Tube | ≥20000 hours |
| Air Temperature Display Range | 0-45.0°C |
| Skin Temperature Display Range | 0-45.0°C |
| Total Cumulative Time | 0-999999 hours |
Frequently Asked Questions
What is the recommended procedure for the first calibration of the YR06223?
Upon first use, ensure that the blue light wavelength is calibrated between 420nm to 490nm. Verify that light intensity is set to 3700μW/cm², and monitor both air and skin temperatures to stay within the range of 0-45.0°C.
How do I troubleshoot if the YR06223 does not power on?
If the YR06223 does not power on, first check the power supply connections and ensure the main switch is turned on. If power is supplied but the unit remains off, consult the alarm system for error codes indicating specific failures.
What should I do if the alarm system triggers?
Review the alarm notifications displayed. The YR06223 is equipped with multiple alarms, including power failure, probe issues, overheating, and fan failure. Address the specific issue indicated by the alarm before resuming operation.
How often should I perform maintenance on the YR06223?
Regular maintenance should be performed every three months, including checking the light intensity, confirming temperature settings, and ensuring the alarm systems are fully operational. A detailed log should be maintained.
What are the environmental requirements for operating the YR06223?
The YR06223 operates optimally within an ambient temperature of 18°C to 30°C, with a relative humidity of 30% to 75%. Ensure sufficient ventilation to prevent overheating during operation.
Can I use the YR06223 continuously for long periods?
Yes, but it is advisable to monitor the infant closely and follow prescribed safety protocols. The unit is designed for extended use, but regular checks on temperature and light intensity are essential to ensure safety and efficacy.
Where can I request a quote for the YR06223?
For pricing and quotes, please contact your supplier or visit our inquiry page for more details.
