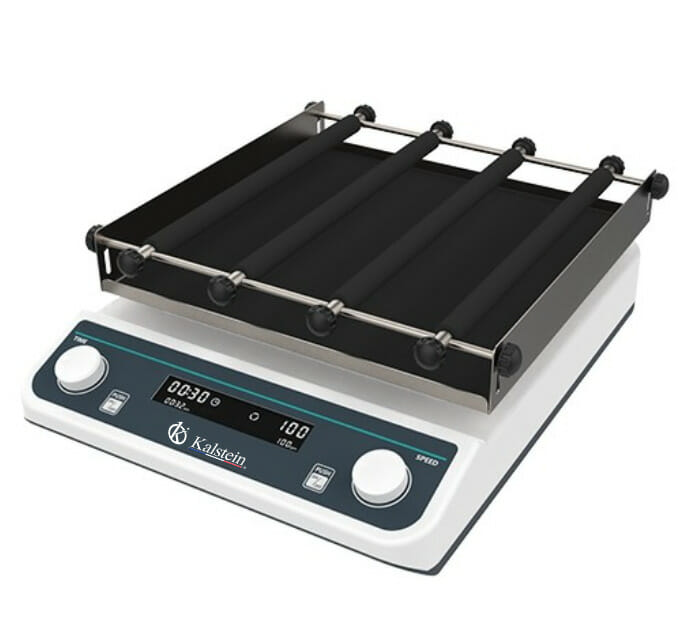

Installation and Startup Guide for the YR06055 Orbital Shaker
The YR06055 Orbital Shaker is designed for versatility and reliability, making it an essential piece of equipment in laboratories. This guide will provide detailed instructions for installation and initial setup to ensure optimal performance.
Unboxing and Initial Setup
Before installing the YR06055, it is crucial to thoroughly unbox the unit and check for all components included in the package. Here is a checklist:
- YR06055 Orbital Shaker unit
- Power cord
- User manual
- Calibration weights (if applicable)
- Spare fuses
Ensure that there are no visible damages to the unit. If any parts are missing or damaged, contact the supplier immediately.
Site Requirements
Before installation, assess the site requirements for the YR06055. This includes:
- Temperature range: 5°C to 40°C
- Humidity: 20 to 80% non-condensing
- Power supply: 100-240V, 50/60Hz
- Vibration-free surface
Ensure adequate ventilation and clearance around the shaker to prevent overheating during operation.
Leveling and Anchoring the YR06055
For optimal performance, it is essential to level the YR06055 Orbital Shaker. Use a spirit level to check the horizontal alignment of the unit. Adjust the feet as necessary to ensure stability. If the shaker will be used in a mobile setup, consider anchoring it to prevent movement during operation.
Power-Up Sequence
Once the YR06055 is securely positioned, connect the power cord to the unit and plug it into an appropriate power outlet. Follow these steps for the power-up sequence:
- Ensure all connections are secure.
- Turn on the power switch located at the back of the unit.
- Observe the LED display for any error messages.
If no errors are displayed, proceed to the initial calibration.
Calibration and First Run
The YR06055 may require calibration before its first use. To calibrate:
- Place calibration weights on the shaker plate.
- Set the speed to a low setting (40 RPM) and run for 5 minutes.
- Adjust settings as needed based on the calibration results.
Following calibration, perform a test run with a sample to ensure everything operates correctly. Monitor for vibrations or irregular movements.
Common Setup Mistakes
While setting up the YR06055, operators may encounter common mistakes:
- Improper leveling leading to inaccurate results.
- Forgetting to calibrate before the first run.
- Using incompatible accessories or samples exceeding the max load of 2 kg.
Avoid these pitfalls by following the guidelines outlined in this manual.
Technical Specifications of the YR06055
| Specification | Details |
|---|---|
| Model | YR06055 |
| Motor Type | Brushless motor |
| Plate Size | 250 x 250 mm |
| Max Load | 2 kg |
| Speed Range | 40 - 200 rpm |
| Timing Range | 1 min - 23 h 59 min |
| Display Type | LED display |
| Power | 30W |
| Voltage | 100-240V, 50/60Hz |
| Dimensions | 260 x 355 x 135 mm |
Frequently Asked Questions
How do I install the YR06055 Orbital Shaker correctly?
To install the YR06055, ensure the workspace is clean, level the unit, connect it to a suitable power outlet, and perform a calibration before first use.
What are the common issues during the startup of the YR06055?
Common issues include failure to power on due to improper connections, errors on the LED display, or incorrect settings. Always check connections and the user manual for troubleshooting steps.
Can the YR06055 be used in different laboratory settings?
Yes, the YR06055 is versatile and can be used in clinical, industrial, educational, and research laboratories, offering different configurations based on specific needs.
What is the maximum load capacity of the YR06055?
The maximum load capacity of the YR06055 is 2 kg, and exceeding this limit can cause damage to the shaker and affect performance.
How often should the YR06055 be calibrated?
Calibration should be performed before the first use and regularly thereafter, depending on the frequency of use and specific laboratory protocols.
What accessories are compatible with the YR06055?
Compatible accessories include various sample plates, containers, and calibration weights. Always refer to the user manual for specific compatibility details.
