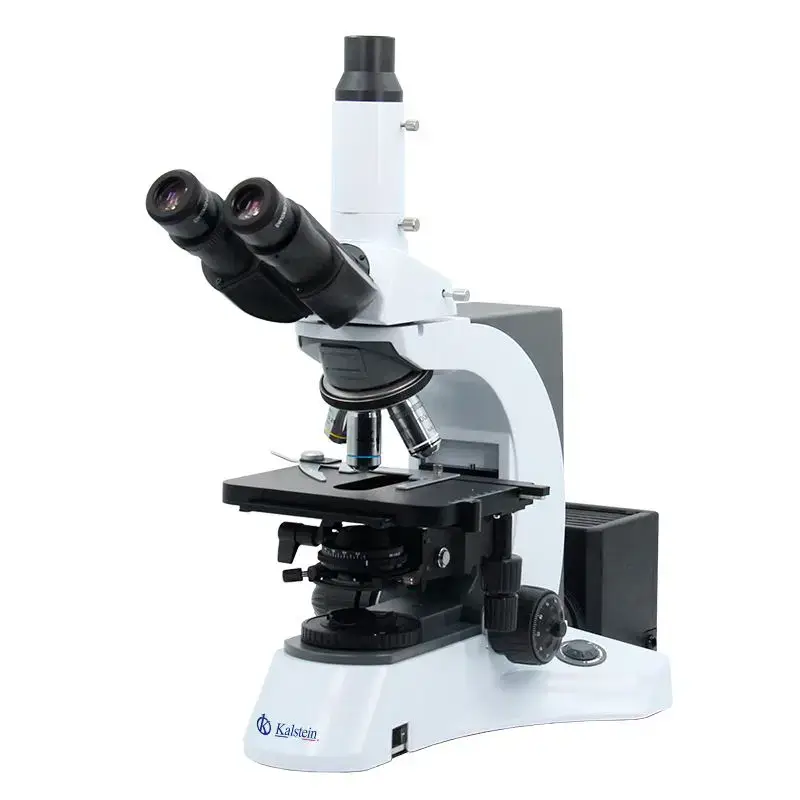

Microscope Trinocular YR0231
Cabeza trinocular Seidentopf, 30°. Inclinado, giratorio de 360°, interpupilar 48-75 mm, dioptría del tubo del ocular izquierdo ajustable Revólver portaobjetivos quíntuple hacia atrás, con ranura deslizante Objetivo acromático Infinity Plan 4x, 10x, 40x, 100x Platina mecánica de doble capa, 185 x 142 mm, rango de movimiento de 55 x 75 mm Condensador basculante NA0.9/0.25 Lámpara halógena 6V30W, Iluminación externa Kohler, con colector asperical, brillo ajustable FUSIBLE Circuito de protección, reemplazable Ajuste coaxial grueso y fino, rango de enfoque de 24 mm, división fina de 0,001 mm, recorrido grueso de 37,7 mm, con bloqueo Especificaciones técnicas
This page provides an overview of the Microscope Trinocular YR0231, including selection criteria, investment factors, operational advantages and maintenance recommendations. The aim is to support an informed decision before requesting a quotation.
This Kalstein model is available for laboratories in Sweden, with selection criteria adapted to local purchasing, installation and support conditions.
Key factors to consider
Before selecting the Microscope Trinocular YR0231, confirm workflow, available space, required accessories and installation conditions. This prevents oversizing the purchase and helps prepare a more accurate quotation.
Its use is oriented to laboratory routines that require observation, control and operational continuity.
For the market in Sweden, evaluation should consider local context such as biotech and life sciences clusters, EU CE marking and match the product to the real workload of the laboratory.
Market price range
The investment should be evaluated according to configuration, required accessories, installation conditions and available technical support.
The final price may vary according to configuration, accessories, logistics, warranty and territorial availability. Compare the technical sheet with the real laboratory workload before confirming the investment.
In Sweden, budget comparison should include CE references, 230V/50Hz power conditions, accessories, logistics and after-sales support.
Value for money
Equipment value depends on operational stability, required accuracy, ease of maintenance and accessory availability.
Value for money should be reviewed together with equipment stability, after-sales support, technical documentation and expected service life. A well-matched selection reduces downtime and improves return on investment.
Advantages and disadvantages
Its use is oriented to laboratory routines that require observation, control and operational continuity.
Main advantages include specialized application, integration with laboratory routines and accessory configuration. Limitations may include installation requirements, user training and preventive maintenance to preserve performance.
Expected lifespan based on use and maintenance
Model YR0231 (current) Optical system Infinity Plan optical system Function Bright field, optional dark field, polarization, phase contrast, fluorescent Head Seidentopf trinocular head, 30° inclined, 360° rotatable, interpupillary 48~75 mm, left eyepiece adjustable in diopters Eyepiece Extra wide field eyepiece EW10x/22 mm, 30 mm diameter eyepiece tube Revolving nosepiece Five-position backward revolving nosepiece with sliding slot Objective Infinity Plan achromatic objective 4x, 10x, 40x, 100x Focusing Coaxial coarse and fine adjustment, focusing range 24 mm, fine division 0.001 mm, coarse travel 37.7 mm Stage Double-layer mechanical stage, 185*142 mm, range of movement 55*75 mm Condenser Swing-out condenser NA0.9/0.
Service life depends on usage frequency, cleaning, storage, calibration when applicable and adherence to technical recommendations. A structured maintenance plan helps preserve accuracy, safety and operational continuity.
Support and spare-parts availability oriented to Sweden helps preserve service continuity and plan preventive maintenance without extended downtime.
Specifications table for the Microscope Trinocular YR0231
Microscope Trinocular YR0231
- Cabeza trinocular Seidentopf, 30°. Inclinado, giratorio de 360°, interpupilar 48-75 mm, dioptría del tubo del ocular izquierdo ajustable
- Revólver portaobjetivos quíntuple hacia atrás, con ranura deslizante
- Objetivo acromático Infinity Plan 4x, 10x, 40x, 100x
- Platina mecánica de doble capa, 185 x 142 mm, rango de movimiento de 55 x 75 mm
- Condensador basculante NA0.9/0.25
- Lámpara halógena 6V30W, Iluminación externa Kohler, con colector asperical, brillo ajustable FUSIBLE Circuito de protección, reemplazable
- Ajuste coaxial grueso y fino, rango de enfoque de 24 mm, división fina de 0,001 mm, recorrido grueso de 37,7 mm, con bloqueo
Especificaciones técnicas
| Model | YR0231 (current) | |
| Optical system | Infinity Plan optical system | |
| Function | Bright field, optional dark field, polarization, phase contrast, fluorescent | |
| Head | Seidentopf trinocular head, 30° inclined, 360° rotatable, interpupillary 48~75 mm, left eyepiece adjustable in diopters | |
| Eyepiece | Extra wide field eyepiece EW10x/22 mm, 30 mm diameter eyepiece tube | |
| Revolving nosepiece | Five-position backward revolving nosepiece with sliding slot | |
| Objective | Infinity Plan achromatic objective 4x, 10x, 40x, 100x | |
| Focusing | Coaxial coarse and fine adjustment, focusing range 24 mm, fine division 0.001 mm, coarse travel 37.7 mm | |
| Stage | Double-layer mechanical stage, 185*142 mm, range of movement 55*75 mm | |
| Condenser | Swing-out condenser NA0.9/0.25 | |
| Illumination | 6V30W Halogen lamp, External Kohler illumination, with Aspherical Collector, Adjustable brightness | |
| Filter | Blue green | |
| Adapter | Trinocular adapter + Eyepiece photo adapter Dia.23.2mm | |
| Optional Accessories | ||
| Head | Seidentopf binocular head, 30° inclined, interpupillary 48~75mm | YR0231-op1 |
| Upgrade to tiltable binocular head 5°~35° | YR0231-op2 | |
| Upgrade to tiltable trinocular head 5°~35° | YR0231-op3 | |
| Eyepiece | Extra wide field eyepiece EW10x/20 mm, 30 mm diameter eyepiece tube | YR0231-op4 |
| Extra wide field eyepiece EW20x/12 mm, 30 mm diameter eyepiece tube | YR0231-op5 | |
| Extra wide field eyepiece EW15x/16 mm, 30 mm diameter eyepiece tube | YR0231-op6 | |
| Objective | Infinity Plan achromatic objective 20x | YR0231-op7 |
| Infinity Plan achromatic objective 60x | YR0231-op8 | |
| Revolving nosepiece | Six-position revolving nosepiece | YR0231-op9 |
| Illumination | Upgrade to 24V50W halogen lamp for better visibility in darkness | YR0231-op10 |
| Upgrade to 24V100W halogen lamp for better visibility in darkness | YR0231-op11 | |
| Adapter | 0.45x C mount | YR0231-op12 |
| Dark field | Dark field condenser, NA 0.7~0.9, Dry, | YR0231-op13 |
| Use with a 40x or lower magnification objective | ||
| Dark field condenser, NA 1.25~1.36, Immersion, | YR0231-op14 | |
| Use with 100x objective | ||
| Dark field objective, infinity plan 100x (oil) | YR0231-op15 | |
| Dark field objective, infinity plan 100x (oil), with iris diaphragm | YR0231-op16 | |
| Phase contrast | Infinity Plan turret phase contrast set | YR0231-op16 |
| –Infinity Plan turret phase contrast condenser | ||
| –Infinity Plan Phase Contrast Objective 4x,10x,40x,100x | ||
| –10x centering telescope | ||
| –Green filter | ||
| Achromatic Infinity turret phase contrast set | YR0231-op17 | |
| –Achromatic Infinity turret phase contrast condenser | ||
| –Achromatic infinity phase contrast objective 4x, 10x, 40x, 100x | ||
| –10x centering telescope | ||
| –Green filter | ||
| Fluorescent | EPI-fluorescent kit, upgrade to A16.1028 | YR0231-op18 |
| –220V/110V Power supply Interchangeable digital display | ||
| –100WHBO Ultra high voltage spherical mercury lamp | ||
| –Barrier to resist ultraviolet light | ||
| –Fluorescence-free oil | ||
| –B/G excitation filter | ||
| EPI-fluorescent kit, upgrade to A16.1028 | YR0231-op19 | |
| –220V/110V Power supply Interchangeable digital display | ||
| –100WHBO Ultra high voltage spherical mercury lamp | ||
| –Barrier to resist ultraviolet light | ||
| –Fluorescence-free oil | ||
| –B/G/V/U excitation filter | ||
| LED EPI-fluorescent kit, upgrade to A16.1029 | YR0231-op20 | |
| EPI light 3W LED 465~475nm, B excitation filter BP460~490, | ||
| EPI light 3W LED 525~530nm, G excitation filter BP510~550 | YR0231-op21 | |
| Polarizer | Polarizing accessory, polarizer, analyzer, integrated device | YR0231-op22 |
Frequently Asked Questions about the Microscope Trinocular YR0231
How do I choose the right microscope trinocular yr0231 for my laboratory?
Selection should start from workload, critical technical parameters, available space and frequency of use. Kalstein can support the comparison between operational needs, budget and maintenance requirements to avoid choosing equipment that is oversized or insufficient.
What should I review before requesting a quotation?
Review the model, technical specifications, required accessories, electrical conditions, consumables, delivery timing and installation needs. With this information, the quotation can be prepared more accurately and aligned with the laboratory workflow.
Does Kalstein provide guidance for this type of equipment?
Yes. The commercial and technical team can support product evaluation, explain differences between models, answer application questions and advise on preventive maintenance, spare parts and documentation required for a secure purchase.
What maintenance helps extend the equipment lifespan?
Follow the manufacturer manual, perform regular cleaning, verify calibrations or controls when applicable, avoid workload abuse and keep maintenance records. Stable use and preventive routines reduce failures and improve operational continuity.
