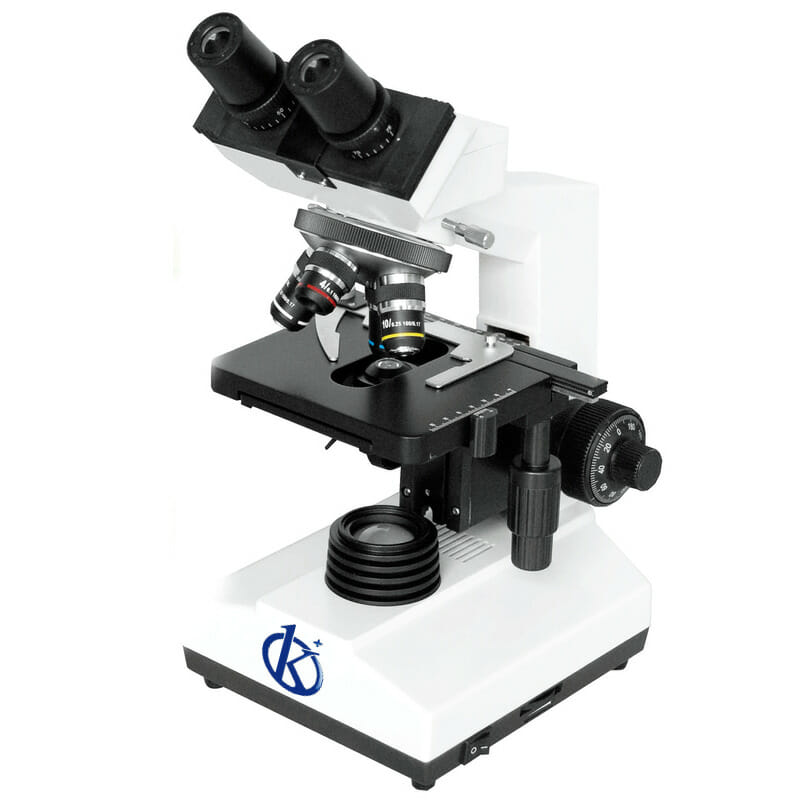

Phase contrast microscope YR05792-1

The Phase Contrast Microscope YR05792-1 is an advanced biological microscope tailored for precision and clarity in research and academic settings. It features a classic 107BN phase contrast version that includes a 40x phase contrast objective and condenser, along with a 10x centering telescope. This model is equipped with a large mechanical stage measuring 140x140 mm with a 50x75 mm movable range, providing ample space for sample examination. The adjustable 3W LED light source ensures high brightness, enhancing the quality of observation.

Market Price

The market for phase contrast microscopes varies significantly due to varying capabilities and brand reputations. The Phase Contrast Microscope YR05792-1 is competitively priced within the range of $700 to $1200 USD, offering great value given its advanced features and high precision.

Frequently Asked Questions

Q: What is the power supply requirement for the Phase Contrast Microscope YR05792-1? A: This microscope supports an AC 110V-240V power supply. Q: Can the light source be adjusted? A: Yes, the 3W LED light source allows you to adjust the brightness according to your needs.

Advantages and Disadvantages

Advantages: The microscope’s phase contrast capability enhances visual clarity for intricate specimens. Its adjustable LED lighting and large stage offer adaptability and precision. Disadvantages: While the precision is high, beginners may find the array of features overwhelming. Additionally, depending on the usage, some might prefer a digital interface over optical functionalities.

Product Use in the Field

This microscope is fundamentally utilized in educational and professional laboratories for biological research. Its phase contrast feature is crucial for observing transparent specimens such as bacteria, living cells, and tissues without the need for staining.

Recommendations

To maximize the longevity and accuracy of your microscope, ensure regular cleaning of the lenses and mechanical components. Additionally, learn proper calibration techniques to maintain precision in your observations.

Features

• Phase contrast objective 40x
• Phase contrast condenser for 40x with green filter
• 10x centering telescope
• Large mechanical stage with a 50x75 mm movable range
• 3W LED adjustable brightness light source

Technical Specifications

Model	YR05792-1
Phase contrast	40x phase-contrast objective, Abbe NA1.25 condenser, 40x phase-contrast diaphragm, 10x telescope, green filter
Type of power supply	AC 110V-240V
Transmitting Light	Halogen 6V20W or LED
Type of light source	halogen
Capacitor NA	Mirror
Capacitor type	1.25
Capacitor characteristics	Abbe + Iris diaphragm
Focusing scale	Filter holder
Focus range	Iris diaphragm
Type of approach	Rack and pinionↆ↑.
Focusing functions	0.002 mm
Working in motion stage	37.7 mm
Size of the working stage	Coaxial Coarse and Fine
Type of work stage	Adjustable tension
Target	Safety stop locking ring
Type of target	50x75mm, Accuracy 0.1mm
Nozzle holes	140x140mm
Nozzle characteristics	2 mechanical layers
Ocular	Achromatic 4x/0,10, 10x/0,25, 100xs/1,25 (oil)
Eyepiece diameter	Achromatic
diopter of the head	4 holes
interpupillary head	Exterior
Head rotation	WF10x/18 mm, 2 pcs. WF16x/11 mm, 2 pcs.
Head tilt	23.2 mm
Head type	Both tubes adjustable
Standard extension	55~75mm
Optical system	360° head rotation
Standard function	45°
