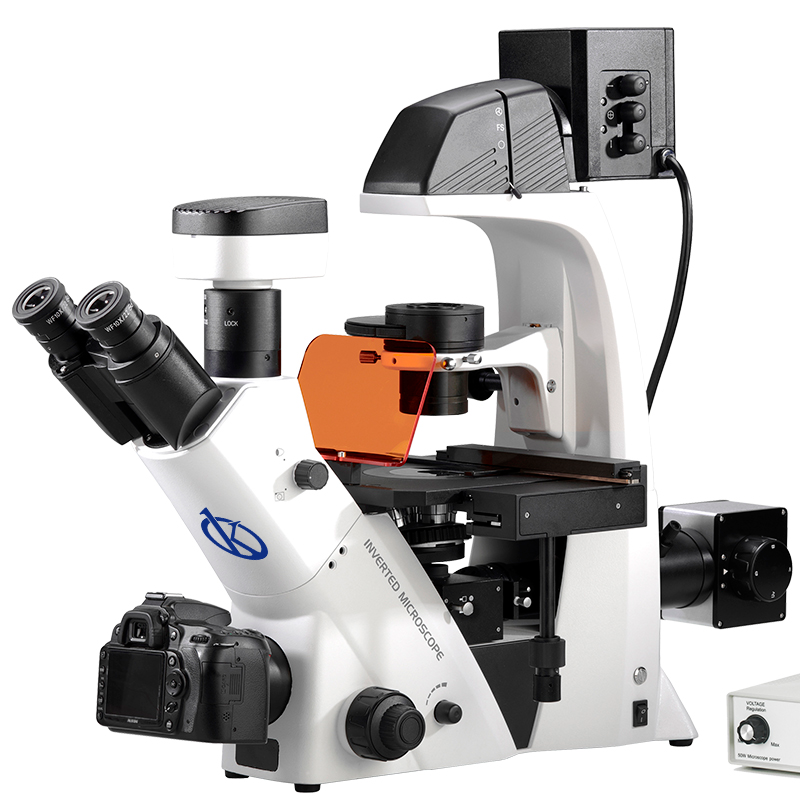

Inverted LED Fluorescent Microscope YR05791 - YR05792
Inverted LED Fluorescent Microscope YR05791 - YR05792 — equipo de laboratorio Kalstein con especificaciones técnicas, características avanzadas y soluciones profesionales certificadas para uso científico.
The Inverted LED Fluorescent Microscope YR05791 - YR05792 is an advanced optical instrument designed for detailed analysis and examination in laboratory settings. Featuring a Seidentopf Trinocular Head inclined at 45°, with an interpupillary distance range of 48~76mm and an adjustable diopter, this microscope guarantees precision and comfort during extended use. Its Koehler Illumination system utilizes both a 12V/50W halogen and an LED light source to provide clear and balanced lighting. The sophisticated 4-hole rotating disc phase contrast condenser, along with long working distances, allows for versatile applications in various research fields.
Market Price
High-quality inverted fluorescent microscopes can range from approximately $6,000 to $7,500 in the market, depending on the additional features and brand reputation. Our offering provides exceptional value by delivering premium functionality at a competitive price point. Discover more about its affordability by requesting a personalized quote today through the Kalstein Plus platform.
Frequently Asked Questions
Q: What is the power source requirement for the microscope?
A: The microscope operates efficiently with an input voltage of 100V~240V, making it suitable for most lab environments globally.
Q: Is the microscope compatible with digital cameras?
A: Yes, the microscope includes a photo adapter for Canon SLR digital cameras, providing a seamless transition from observation to documentation.
Advantages and Disadvantages
One of the primary advantages of the Inverted LED Fluorescent Microscope is its versatility due to its long working distances and phase contrast capabilities, essential for cellular biology and advanced research. The automatic power-off system adds an eco-friendly aspect by saving energy when not in use. However, potential users should consider the need for specific camera models compatible with the photo adapter provided.
Field Usage
This microscope is particularly beneficial in medical and biological research settings, enabling scientists and healthcare professionals to conduct detailed studies of live cells and tissue cultures. Its advanced features support a wide range of applications from cancer research to pharmacological development.
Recommendations
To maximize the performance and longevity of the microscope, regular cleaning with appropriate optical-grade solutions is recommended. Familiarize yourself with the automatic power-off settings to ensure energy efficiency and prolong the life of the light sources.
Features

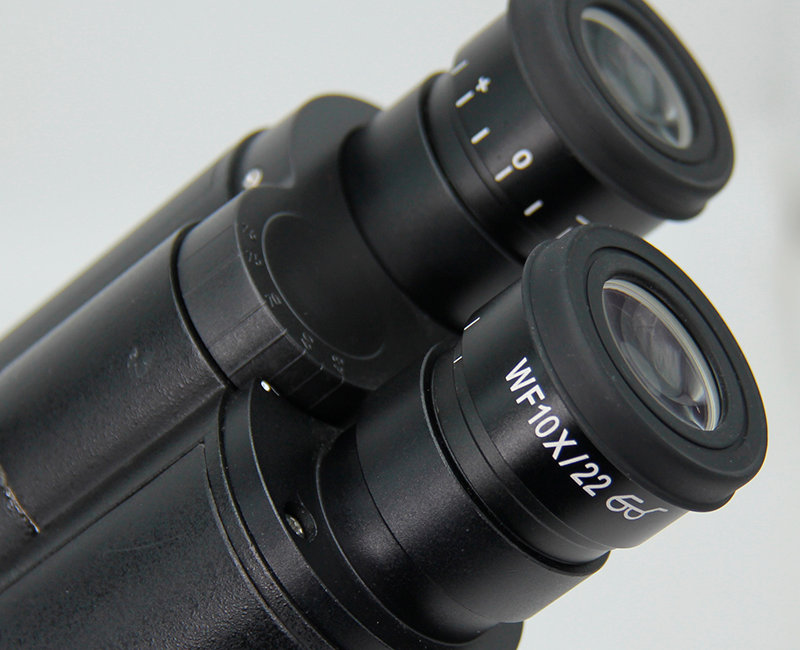

- Seidentopf Trinocular Head Inclined 45°, interpupillary distance 48~76mm, diopter adjustable.
- Koehler Illumination with halogen 12V/50W and LED options.

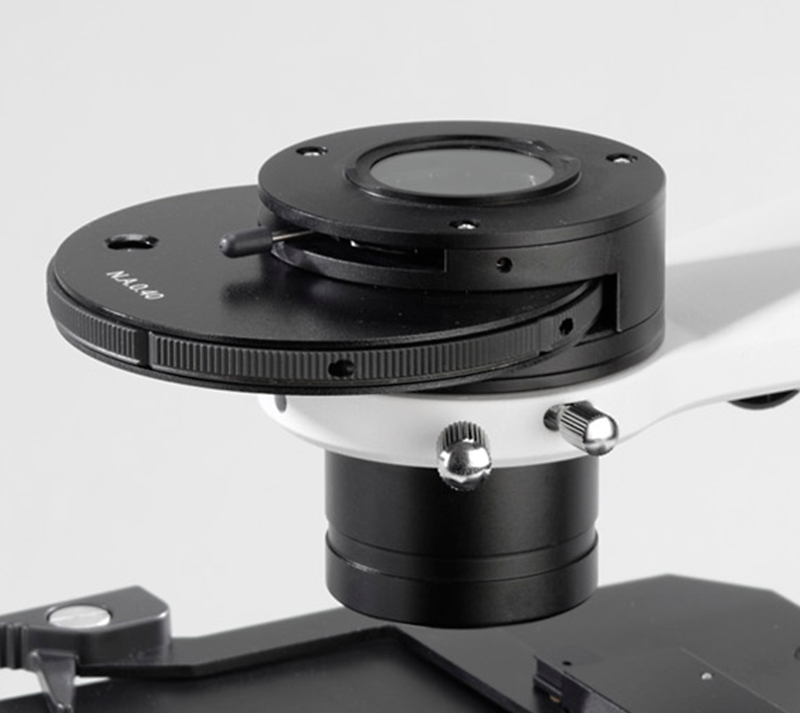

- 4-hole phase contrast condenser with long working distances.
- LWD Infinity Plan fluorescent objectives available in multiple magnifications (4x, 10x, 20x, 40x).
- Automatic power management system for energy efficiency.
- Photo adapter compatibility with Canon SLR cameras.
Technical Specifications
| Model | YR05791 | YR05792 |
| Features | Infinity DualPhoto Port ECO (Auto Power Off) | |
| Optical System | Infinity Plan | |
| Head Type | Seidentopf Trinocular | |
| Head Interpupillary | 48~76mm | |
| Head Light Path | E100:P0/E20:P80 | |
| Eyepiece Features | Diopter Adjustable | |
| Eyepiece Diameter | 30.0mm | |
| Nosepiece Holes | 5 holes | |
| Objective Features | LWD | |
| Objective Type | Infinity Plan Phase Contrast | |
| Working Stage Features | Size ≥140x140mm | |
| Working Stage Type | Fixed + Attachable | |
| Focusing Features | Tension Adjustable | |
| Condenser Features | Slor for PH Slide | |
| Condenser Type | Phase Contrast | |
| Condenser N.A | 0.4 | |
| Light Source Features | Kohler Illumination LED 5W Halogen 30W Transmit & Reflect | |
| Light Source Type | Halogen Fluorescent | |
| Video Adapter | C-Mount 0.3x | |
| Fluorescent Band | 3 Bands | - |
Tekniska specifikationer
| Vikt | 17 kg |
|---|---|
| Tillverkare | Kalstein |
