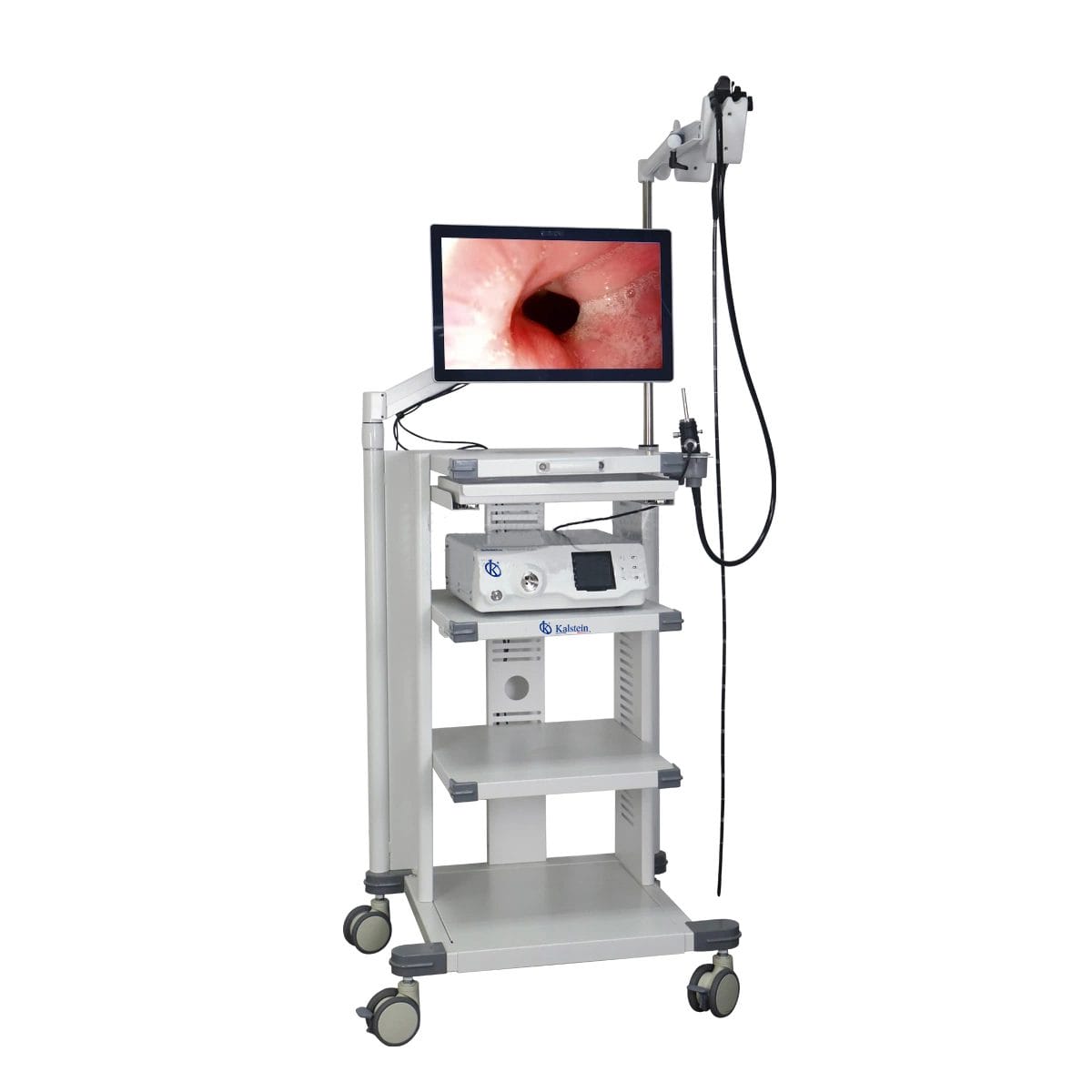

Site Requirements and Environmental Conditions for the YR06149 Veterinary Video Endoscope
The YR06149 Veterinary Video Endoscope is a cutting-edge tool designed for various clinical applications, including gastroscopy and bronchoscopy in both small and large animals. However, to ensure optimal functionality, understanding the installation site requirements and environmental conditions is crucial. This article delves deep into the specifications that must be considered for the effective operation of the YR06149.
Technical Data of the YR06149
| Model | Insertion Tube Diameter | Working Channel | Working Length | View Angle | View Depth | Range of Bending | Resolution |
|---|---|---|---|---|---|---|---|
| YR06149 | 9.2 mm | 2.8 mm | 3000 mm | 140° | 3~100 mm | 180° (Up), 130° (Down), 100° (Right), 100° (Left) | FHD 1080P (2M pixels) |
Essential Environmental Conditions for YR06149
To guarantee the YR06149 operates effectively, certain environmental conditions must be maintained. These include:
- Temperature Range: The unit should ideally operate in environments between 10°C and 40°C. Temperatures outside this range can impact performance.
- Humidity Levels: Relative humidity should be maintained between 30% and 85%, non-condensing. High humidity can lead to condensation, affecting electronic components.
- Electrical Supply: Ensure a stable voltage supply of 100V-240V AC with a frequency of 50/60Hz. Voltage fluctuations can cause erratic performance.
- Ventilation: Adequate airflow is necessary to prevent overheating. The area should be free from obstructions around the device for at least 30 cm on all sides.
- Vibration and Shock Absorption: The equipment should be installed on a stable surface. Excessive vibrations can disrupt internal mechanisms.
- Electromagnetic Interference (EMI): Avoid placing the device near strong electromagnetic fields, such as those from generators or motors, to prevent interference.
Installation and Setup Guidelines for the YR06149
Proper installation is key to maximizing the functionality of the YR06149. Here’s a step-by-step guide to setting it up:
- Unboxing: Carefully remove the YR06149 from the packaging, checking for any visible damage.
- Leveling: Place the endoscope on a level surface to ensure accurate readings and prevent movement during use.
- Power Connection: Connect to an appropriate power outlet, ensuring compatibility with the specified voltage and frequency.
- Calibration: Run the initial calibration sequence as per the user manual to align all components.
- Initial Testing: Conduct a test run to confirm that all functions are working correctly, including image quality and response time.
Common Installation Mistakes
Here are frequent errors to avoid during the setup of the YR06149:
- Insufficient Ventilation: Not allowing enough space around the device can cause overheating.
- Poor Electrical Supply: Not checking the voltage can lead to device malfunction.
- Ignoring Environmental Conditions: Failing to consider temperature and humidity can lead to performance issues.
Site Preparation Checklist for YR06149
| Requirement | Details | Status |
|---|---|---|
| Temperature Control | Maintain 10°C to 40°C | ✔️ |
| Humidity Control | 30% to 85% relative, non-condensing | ✔️ |
| Electrical Supply | 100V-240V AC, 50/60Hz | ✔️ |
| Ventilation Space | 30 cm clearance on all sides | ✔️ |
| Vibration Control | Stable installation surface | ✔️ |
| EMI Control | Avoid strong electromagnetic fields | ✔️ |
Frequently Asked Questions
What are the temperature and humidity requirements for the YR06149?
The YR06149 should operate in a temperature range of 10°C to 40°C and relative humidity between 30% and 85%, non-condensing.
How do I ensure proper ventilation for the YR06149?
Make sure there is at least 30 cm of clear space around the YR06149 on all sides to allow adequate airflow and to prevent overheating.
What should I do if the YR06149 does not power on?
First, check the power connection and ensure the electrical supply is stable. If the issue persists, consult the troubleshooting section of the manual.
Can I use the YR06149 in high humidity environments?
It is recommended to avoid high humidity environments. Operating the YR06149 in conditions above 85% relative humidity can lead to condensation and equipment damage.
What is the ideal installation surface for the YR06149?
The installation surface should be stable and level to prevent movement and ensure accurate readings during use.
What are the consequences of not following site requirements for the YR06149?
Failing to adhere to the site requirements can result in equipment malfunction, inaccurate readings, and potentially damage to the device.
Where can I request a quote for the YR06149?
You can request a quote for the YR06149 by contacting our sales team directly through our official channels.
