Colorimeter
Colorimeters are essential analytical instruments used to measure the concentration of colored compounds in liquid samples by quantifying light absorption. They provide rapid, accurate, and quantitative color measurements that are critical in various industries such as food and beverage, pharmaceuticals, chemical manufacturing, and environmental monitoring. By analyzing color intensity, colorimeters help control product quality, compliance, and consistency throughout production processes.
The broad range of colorimeters available on the market caters to different application needs, from portable handheld devices for field use to benchtop models designed for high-precision laboratory environments. These instruments operate using different light sources and filters, with some advanced models offering enhanced accuracy through digital readings and software integrations. Proper selection and application of colorimeters significantly affect operational efficiency and measurement reliability.
Types of Colorimeters Your Laboratory May Need
Spectrocolorimeter
Spectrocolorimeters are advanced instruments that measure color by analyzing the spectrum of light reflected or transmitted by a sample. Unlike basic colorimeters, spectrocolorimeters capture detailed spectral data across many wavelengths, enabling more precise and comprehensive color analysis. These devices are vital for industries requiring stringent color quality control and color matching, such as paint manufacturing, textiles, and plastics.
At Kalstein, our spectrocolorimeters combine cutting-edge technology with ease of use, offering flexible configurations for different sample types and environments. Their high-resolution spectral analysis helps laboratories detect subtle color variations, ensuring consistent product appearance and compliance with international color standards.
What You Need to Know Before Selecting a Colorimeter and Making an Investment
Key Factors to Consider
When choosing a colorimeter, important factors include the type of sample to be analyzed, measurement range, accuracy, and ease of calibration. It is also essential to consider the compatibility of the device with existing laboratory systems and whether it supports data integration for streamlined reporting.
Additionally, the instrument’s durability, portability, and user interface should be evaluated based on the operational environment. For instance, laboratories with frequent field testing may prioritize lightweight, battery-powered devices, while fixed laboratory settings might benefit from more robust benchtop units.
Price Range in the Market
Colorimeters’ price range varies significantly depending on their specifications, such as measurement accuracy, wavelength range, and software features. Basic portable models can start at a few hundred euros, while high-end spectrocolorimeters with extensive spectral capabilities may cost several thousand euros.
Budget constraints and intended application influence purchasing decisions. It is advisable to analyze the total cost of ownership, including calibration, maintenance, and training expenses, to ensure long-term cost efficiency without compromising measurement quality.
Quality-Price Ratio
Quality-price balance is crucial; the most affordable colorimeter may lack the precision or features required, whereas premium devices often justify their price by providing reliable results, enhanced durability, and technical support. Kalstein products are designed to optimize this balance, offering high-performance instruments at competitive prices.
Investing in a colorimeter with a solid reputation for quality and service can reduce operational costs over time. Choosing a device with warranty coverage and accessible customer support ensures sustained performance and addresses unforeseen technical issues promptly.
Expected Lifespan Based on Usage and Maintenance
The expected lifespan of a colorimeter depends on the frequency of use, maintenance routines, and environmental conditions such as humidity and temperature. Proper handling, regular calibration, and timely servicing significantly extend the instrument’s functional life.
Kalstein recommends following manufacturer guidelines for cleaning and calibration schedules, as well as protecting devices from mechanical shocks and exposure to harsh chemicals to maximize longevity and measurement accuracy.
KALSTEIN COLORIMETER
Among many products, at Kalstein you can find the ideal colorimeter for your Laboratory
If you are unsure about which colorimeter to purchase, consider your specific measurement requirements, desired accuracy, sample types, and budget to make an informed decision tailored to your laboratory’s needs.
Spectrocolorimeter YR05518 – YR05519
Spectrocolorimeter YR05518 – YR05519 is a cutting-edge portable color difference instrument developed by Kalstein, utili…
High cost-effective portable colorimeter YR05514
The High cost-effective portable colorimeter YR05514 from Kalstein is a revolutionary tool designed to meet the growing…
Precision Colorimeter YR05510
The Precision Colorimeter YR05510 is a top-tier device designed to meet the highest standards of color measurement acros…
Precision Colorimeter YR05506 // YR05508
Precision Colorimeter YR05506 // YR05508 is an advanced tool designed for precise color measurement and analysis, widely…
Our colorimeter best seller
Spectrocolorimeter YR05518 – YR05519 is a cutting-edge portable color difference instrument developed by Kalstein, utilizing autonomous core technology. This high-level device in spectral architecture ensures accurate relative ΔE measurements and maintains precision in absolute L, A, and B values over time. Equipped with a built-in silicon photodiode array (24 groups in double rows), the spectrocolorimeter offers convenient and fast operations without the need for a computer connection. With a measurement diameter of 8 mm, it is ideal for precise color…
The Spectrocolorimeter YR05518 – YR05519 is competitively priced considering its innovative features and technological advancements. The market price for similar products typically ranges from $1,400 to $2,250. This range reflects the product’s superior quality and functionality, making it a valuable investment for businesses requiring precise color measurements. For exact pricing, interested customers can use the Kalstein Plus platform to request a detailed quotation.
| Model | YR05518 | YR05519 |
| Optical Geometry | D/8(diffused illumination, 8-degree viewing angle) | D/8(diffused illumination, 8-degree viewing angle) |
| SCI Mode | SCI Mode | |
| Comply to CIE No.15，GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7 | Comply to CIE No.15，GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7 | |
| Characteristic | Φ8mm apertures, Used for accurate color measurement and quality control in plastic electronics, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries | Φ8mm apertures, Used for accurate color measurement and quality control in plastic electronics, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries |
| Integrating Sphere Size | Φ40mm | Φ40mm |
| Light Source | Combined full spectrum LED light source | Combined full spectrum LED light source |
| Spectrophotometric Mode | Flat Grating | Flat Grating |
| Senso | Silicon photodiode array (double row 24 groups) | Silicon photodiode array (double row 24 groups) |
| Wavelength Range | 400～700nm | 400～700nm |
| Wavelength Interval | / | / |
| Semiband Width | 10nm | 10nm |
| Measured Reflectance Range | L:0~100; reflectivity:The reflectivity can be measured at 3 specific wavelengths specified by the user (default: 440nm, 550nm, 600nm) | L:0~100; reflectivity:The reflectivity can be measured at 1 specific wavelengths specified by the user (default: 550nm) |
| Measuring Aperture | Φ8mm | Φ8mm |
| Specular Component | SCI | SCI |
| Color Space | CIE LAB,XYZ,Yxy,LCh | CIE LAB,XYZ,Yxy,LCh |
| Color Difference Formula | ΔE*ab,ΔE*00 | ΔE*ab,ΔE*00 |
| Other Colorimetric Index | / | / |
| Observer Angle | 10° | 10° |
| Illuminant | D65,A,F2(CWF) | D65,A,F2(CWF) |
| Displayed Data | Reflectivity (the user specifies the reflectivity at 3 specific wavelengths), Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Simulation, Color Offset | Reflectivity (the user specifies the reflectivity at 1 specific wavelengths), Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Simulation, Color Offset |
| Displayed Accuracy | Display 0.1, storage 0.01 | 0.1 |
| Measuring Time | About 1.5s | About 1.5s |
| Repeatability | Chromaticity value: MAV/SCI, within ΔE*ab 0.08 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) | Chromaticity value: MAV/SCI, within ΔE*ab 0.1 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) |
| Inter-instrument Error | MAV/SCI, Within ΔE*ab 0.4 | MAV/SCI, Within ΔE*ab 0.4 |
| (Average for 12 BCRA Series II color tiles) | (Average for 12 BCRA Series II color tiles) | |
| Measurement Mode | Single Measurement, Average Measurement(2-99times) | Single Measurement, Average Measurement(2-99times) |
| Locating Method | Stabilizer cross position | Stabilizer cross position |
| Dimension | L*W*H=81X71X214mm | L*W*H=81X71X214mm |
| Weight | About 460g | About 460g |
| Battery | Li-ion battery, 6000 measurements within 8 hours | Li-ion battery, 6000 measurements within 8 hours |
| Illuminant Life Span | 5 years, more than 3 million times measurements | 5 years, more than 3 million times measurements |
| Display | 3.5-inch TFT color LCD, Capacitive Touch Screen | 3.5-inch TFT color LCD, Capacitive Touch Screen |
| Data Port | USB | USB |
| Data Storage | Standard 500 Pcs, Sample 10000 Pcs | Standard 500 Pcs, Sample 10000 Pcs |
| Language | Simplified Chinese, English, Traditional Chinese | Simplified Chinese, English, Traditional Chinese |
| Operating Environment | 0~40℃, 0~85%RH (no condensing), Altitude < 2000m | 0~40℃, 0~85%RH (no condensing), Altitude < 2000m |
| Storage Environment | -20~50℃, 0~85%RH (no condensing) | -20~50℃, 0~85%RH (no condensing) |
| Standard Accessory | Power Adapter, USB Cable, User Guide, SQCX Software(Download from office website), White and Black Calibration Cavity, Protective Cover, Wrist strap, 8mm flat aperture | Power Adapter, USB Cable, User Guide, White and Black Calibration Cavity, Protective Cover, Wrist strap, 8mm flat aperture |
| Optional Accessory | USB Micro Printer, Powder Test Box | USB Micro Printer, Powder Test Box |
| Notes | Technical parameters are only for reference, subject to the actual sale of the product | Technical parameters are only for reference, subject to the actual sale of the product |
Accurate color measurements enhance product quality control.
Precision Colorimeters: Comparing Precision Colorimeter YR05511 and Konica Minolta CR-400
When it comes to precision in color measurement, having the right equipment is crucial. In the domain of colorimeters, the Precision Colorimeter YR05511 by Kals…
Precision Colorimeters: Kalstein YR05513 vs Datacolor ColorReader EZ
In the realm of color measurement technology, precision and reliability are paramount. The Precision Colorimeter YR05513 by Kalstein and the ColorReader EZ by D…
Technological Advances in Colorimetry: Cutting-Edge Equipment for Accurate Measurement
Colorimetry is an essential technique in various fields, from the food industry to cosmetics and scientific research. Colorimeters, specialized devices for prec…

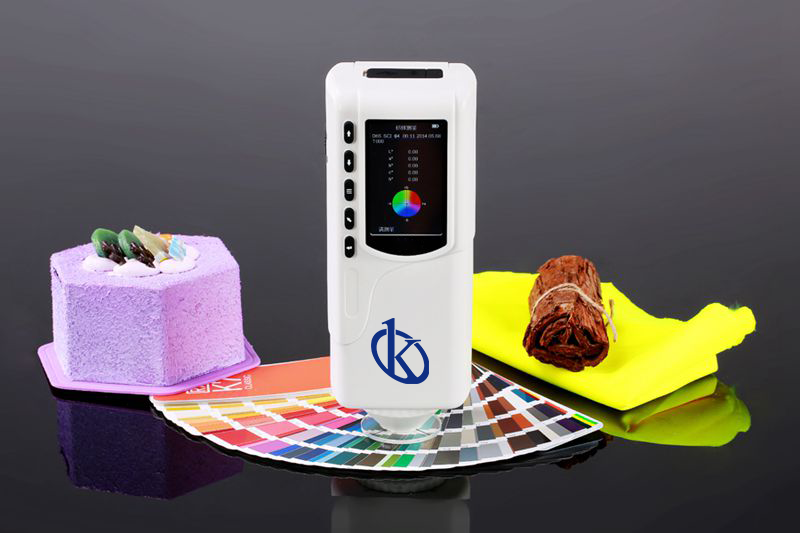

High Precision Colorimeters for Chromatic Analysis in the Laboratory
Colorimeters are essential instruments in any laboratory dedicated to chromatic analysis. These devices allow for the measurement and analysis of the color of v…
Colorimeter Offers
Kalstein offers reliable, innovative colorimeters for precise analysis.
Explore our comprehensive guides on colorimeter selection and usage in your laboratory to ensure optimal performance and results.
Follow our detailed guides and expert recommendations to select, operate, and maintain your colorimeter like a professional, ensuring accurate measurements and extending instrument lifespan.
The Color Saturation Meter as a research tool
The Color Saturation Meter, provided by one of the leaders in laboratory equipment supply, manufacturer Kalstein, is a crucial tool for various areas…
Boost the Accuracy of Results in Your Laboratory: The Advanced Colorimeter
Scientific progress is impossible without the right tools. Solid, reliable, and precise equipment is essential in drawing valid conclusions based on d…
Colorimeter Accuracy in the Biochemistry Laboratory
The use of the colorimeter in biochemistry laboratories is an invaluable tool when performing a wide variety of analyses in the laboratory. This tool…

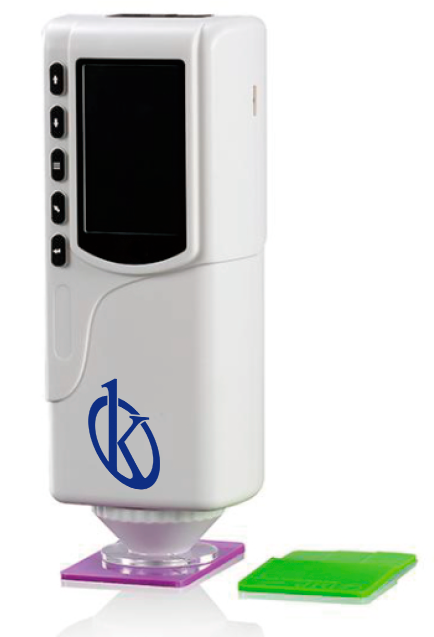

Colorimeter for Water Analysis
The colorimeter is an instrument used to measure the color of a substance, using the RGB color system. This system uses three primary colors: red, green, and blue. Similarly, it measures the intensity of each and then combines them to create a color….
