Description

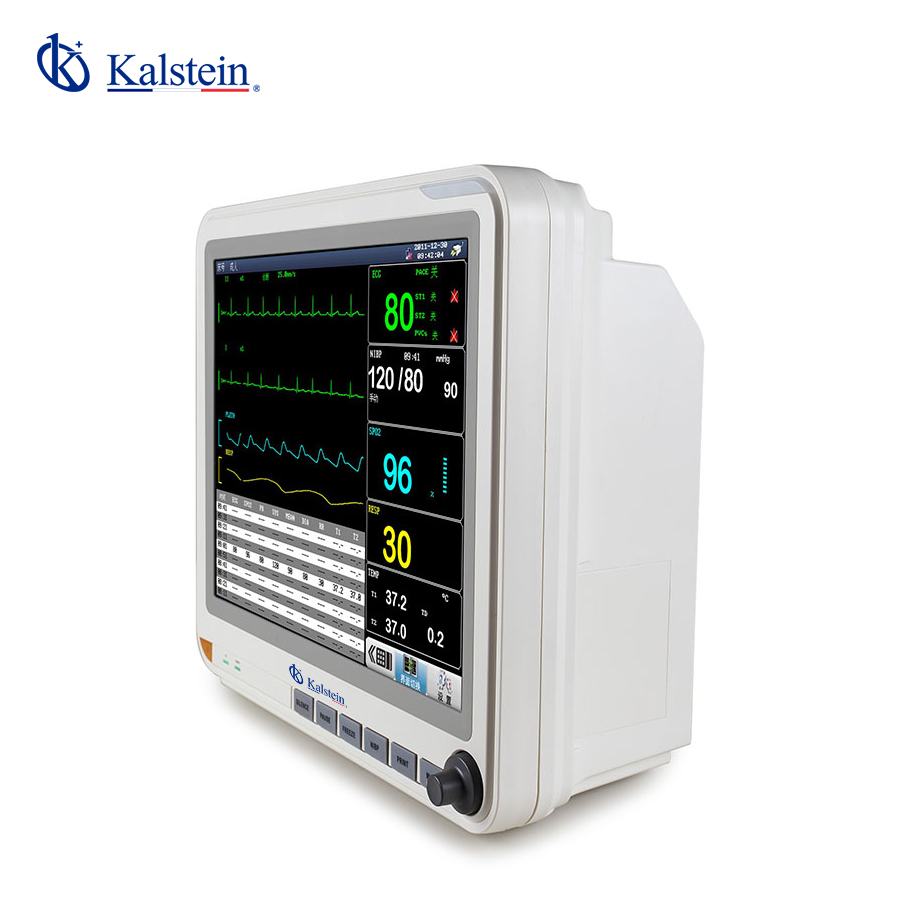

The Bedside Monitor YR02174 is an advanced, multi-parameter patient monitor designed for precision and versatility in a variety of medical environments. Featuring a 15-inch display, this monitor provides clear, concise readings for vital signs including SpO2, neonatal and adult respiration (RESP), non-invasive blood pressure (NIBP), pulse rate/heart rate (PR/HR), electrocardiogram (ECG), and two channels of temperature monitoring (TEMP). Whether integrating optional features like a 12-lead ECG, IBP, ETCO2, or a touch screen, the YR02174 ensures comprehensive patient monitoring. Trusted by medical professionals, this device’s adaptability is enhanced by available accessories such as a printer, wall mount, and trolley.
Market Pricing
While the price of the Bedside Monitor YR02174 is competitively set at $991.6, the market range for similar monitors varies widely. Typically, these multi-parameter monitors are found between $800 and $1,800 depending on the features and accessories included. This pricing flexibility makes it easier for healthcare providers to find a model that meets their budget without compromising on quality.
Frequently Asked Questions
What are the optional features available with the YR02174? Optional features include a 12-lead ECG, invasive blood pressure (IBP), end-tidal CO2 (ETCO2), a printer, wall mount, trolley, and a touch screen.
Is the monitor suitable for both adult and pediatric patients? Yes, the YR02174 is designed to accurately monitor both adult and neonatal patients.
Advantages and Disadvantages
This product’s key advantages include its comprehensive monitoring capabilities, modular options, and easy-to-read display. Some users may find the initial learning curve for optional features slightly steep, and the requirement of additional accessories can increase costs.
Product Use in the Field
The YR02174 is a versatile tool used in various clinical settings including hospitals and outpatient clinics. Its accurate measurements for vital signs provide healthcare providers with reliable data for patient assessments and interventions, contributing to better patient outcomes.
Recommendations
To maximize the benefits of the Bedside Monitor YR02174, regular calibration and maintenance checks are recommended. Additionally, investing in optional accessories can enhance its functionality and broader application in different medical scenarios.
Features
- 15 inches multi-parameter patient monitor
- Standard configuration includes SpO2, RESP, NIBP, PR/HR, ECG, and 2-TEMP
- Optional features: 12-lead ECG, IBP, ETCO2, printer, wall mount, trolley, touch screen
Technical Specifications
| Model | YR02174 | |
| ECG | Lead mode | 5 Leads(RA,LA,LL,RL,V) |
| Connection method | I, II, III,AVR,AVL,AVF,V | |
| Lead Mode | 3 Leads (RA,LA,LL) | |
| Connection method | I, II,III | |
| Waveform | 1ch | |
| Gain | 1.25, 2.5, 5.0, 10, 20, 40mm/mV, Auto. | |
| HR Range | Adult: 15~300bpm | |
| Neo/Ped | 15~350bpm | |
| Accuracy | ±1% or ±1bpm | |
| Resolution | 1bpm | |
| Sensitivity | >200(uVp-p) | |
| Differential input impedance | ≥5MΩ | |
| ST segment Monitoring Range | ||
| Measure Range | -2.0~+2.0mV | |
| Measure Accuracy | -0.8mV~+0.8mV | |
| Heart Rate | Measuring range | 20~300bpm |
| Accuracy | ±1bpm | |
| Resolution | 1bpm | |
| Sensitivity | >200UVp-p | |
| Respiration | Method | Impedance between R-F(RA-LL) |
| Differential Input Impedance | >2.5MΩ | |
| Measuring Impedance Range | 0.3~3.0 MΩ | |
| Base line Impedance Range | 200~4000Ω | |
| Bandwidth | 0.1~2.5Hz | |
| Resp. Rate | Adult: 2~120BrPM | |
| Neo/Ped | 0~150BrPM | |
| Resolution | 1 BrPM | |
| Accuracy | ±2 BrPM | |
| Alarm | 10~40S | |
| NIBP | Method | Oscillometric |
| Mode | Manual/Auto/STAT | |
| Measuring Interval in AUTO Mode | 1,2,3,4,5,10,15,30,60,90,120,180,240,480(Min) | |
| Measuring Period in STAT Mode | 5 Min | |
| Pulse Rate Range | 40~240bpm | |
| Alarm Type | SYS, DIA, MEAN | |
| Resolution | ||
| Pressure | 1mmHg | |
| Accuracy | Maximum Mean error: 5mmHg | |
| Maximum Standard deviation | 8mmHg | |
| SPO2 | Display | Number of SPO2,waveform of capacity,Pulse |
| Measuring range | 0~100% | |
| Resolution | 1% | |
| Accuracy | 70~100% (±2%) | |
| Alarm system | Audio-video alarm | |
| Pulse rate range | 0~300bpm | |
| TEMP | Channel | 2 |
| Measuring and Alarm Range | 0~50ºC | |
| Resolution | 0.1ºC | |
| Accuracy | 0.1ºC | |
| Actualization interval | about 1 Second. | |
| Average Time Constant | <10 Second. | |
