Description

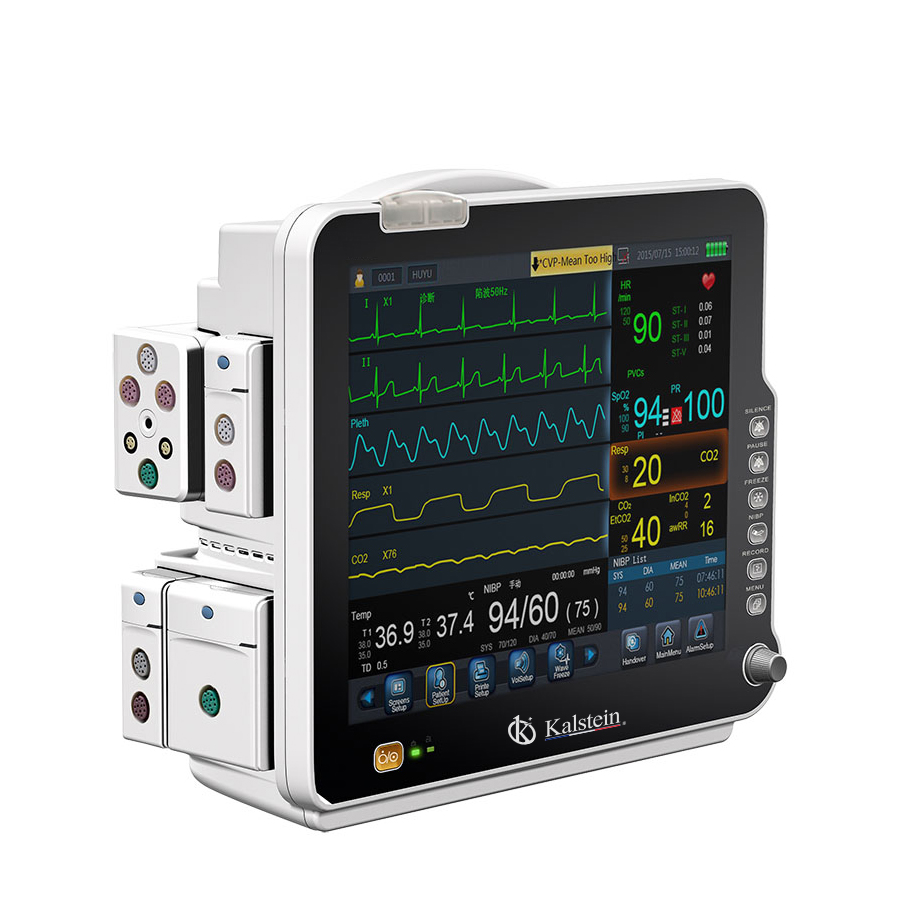

The Multi-parameter Patient Monitor YR02177 is a top-of-the-line medical device engineered for optimal patient monitoring in critical environments like operating theaters (OT) and intensive care units (ICU). Featuring a 17-inch LCD screen, this modular monitor offers comprehensive and real-time tracking with standard parameters including ECG, SPO2, TEMP, NIBP, RESP, PR/HR. In addition to its standard configuration of a 5-lead ECG, Dual-Temp, SpO2, and NIBP, the monitor supports a range of optional add-ons like Masimo/Nellcor SpO2, Dual-IBP, and thermal recorders, allowing for customizable patient care solutions.
Market Price
In the competitive landscape of medical equipment, the price for advanced patient monitors like the YR02177 typically ranges between $4600 USD and $5400 USD. This range accounts for the highly specialized technology integrated into these devices, ensuring precise and reliable patient monitoring. For specific pricing details and offers, we encourage potential buyers to request a quote or explore options for automated quotations via the Kalstein Plus platform.
Frequently Asked Questions
- What are the optional configurations available? The YR02177 supports numerous optional modules like Dual-IBP, AG, C.O., and more, allowing for tailored functionality based on clinical needs.
- Is the monitor suitable for pediatric use? Yes, the monitor features parameters suitable for both adult and neonatal patient monitoring.
- Can the monitor be mounted or attached to a trolley? Absolutely, the device comes with options for a wall mount or a trolley to suit different hospital settings.
Advantages and Disadvantages
Advantages:
- Comprehensive monitoring with customizable modules.
- Large LCD display for clear visibility of vital signs.
- Flexible use in a variety of clinical environments including OT and ICU.
Disadvantages:
- Initial high investment cost.
- May require training for users unfamiliar with modular systems.
Product Use in the Field
The YR02177 monitor is designed for real-world application in settings where patient stability is paramount. Its accurate measurement capabilities provide critical data that assists healthcare professionals in making informed decisions in emergency situations, as well as monitoring ongoing patient health in recovery environments.
Recommendations
To leverage the full potential of the YR02177, regular calibration and software updates are recommended. Ensure that staff are trained in both basic operation and advanced functionality to use the monitor effectively. Utilizing the modular capabilities can greatly enhance specific patient care scenarios, ensuring that your facility maximizes the utility of this investment.
Features
- 17-inch full modular LCD screen
- Standard monitoring for ECG, SPO2, TEMP, NIBP, RESP, PR/HR
- Customizable configurations with optional modules
- Suitable for adult, pediatric, and neonatal monitoring
Technical Specifications
| Model | YR02177 | |
|
ECG
|
Lead mode | 5 Leads(RA,LA,LL,RL,V) |
| Connection method | I, II, III,AVR,AVL,AVF,V | |
| Lead Mode | 3 Leads (RA,LA,LL) | |
| Connection method | I, II,III | |
| Waveform | 1ch | |
| Gain | x250, x500, x1000, x2000 | |
| HR Range | Adult: 15~300bpm | |
| Neo/Ped | 15~350bpm | |
| Accuracy | ±1% or ±1bpm | |
| Resolution | 1bpm | |
| Sensitivity | >200(uVp-p) | |
| Differential input impedance | ≥5MΩ | |
| ST segment Monitoring Range | ||
| Measure Range | -2.0~+2.0mV | |
| Measure Accuracy | -0.8mV~+0.8mV | |
|
Heart Rate
|
Measuring range | 10~300bpm |
| Accuracy | ±1bpm | |
| Resolution | 1bpm | |
| Sensitivity | >200UVp-p | |
|
Respiration
|
Method | Impedance between R-F(RA-LL) |
| Differential Input Impedance | >2.0MΩ | |
| Measuring Impedance Range | 0.3~3.0 MΩ | |
| Base line Impedance Range | 200~4000Ω | |
| Bandwidth | 0.1~2.5Hz | |
| Respiration Rate | Adult: 2~120BrPM | |
| Neo/Ped | 0~150BrPM | |
| Resolution | 1 BrPM | |
| Accuracy | ±2 BrPM | |
| Alarm | 10~40S | |
|
NIBP
|
Method | Oscillometric |
| Mode | Manual/Auto/STAT | |
| Measuring Interval in AUTO Mode | 1,2,3,4,5,10,15,30,60,90,120,180,240,480(Min) | |
| Measuring Period in STAT Mode | 5 Min | |
| Pulse Rate Range | 40~240bpm | |
| Alarm Type | SYS, DIA, MEAN | |
| Resolution | ||
| Pressure | 1mmHg | |
| Accuracy | Maximum Mean error: 5mmHg | |
| Maximum Standard deviation | 8mmHg | |
|
SPO2
|
Display | Number of SPO2,waveform of capacity,Pulse |
| Measuring range | 0~100% | |
| Resolution | 1% | |
| Accuracy | 70~100% (±2%) | |
| Alarm system | Audio-video alarm | |
| Pulse rate range | 0~300bpm | |
|
TEMP
|
Channel | 2 |
| Measuring and Alarm Range | 0~50ºC | |
| Resolution | 0.1ºC | |
| Accuracy | 0.1ºC | |
| Actualization interval | about 1 Second. | |
| Average Time Constant | <10 Second. | |
