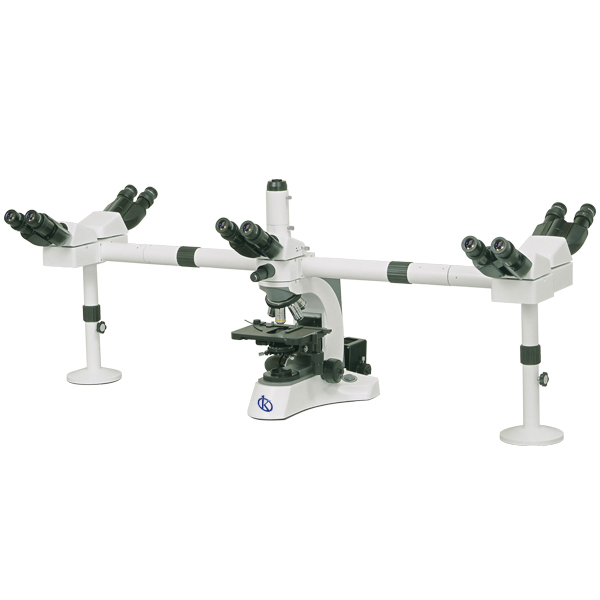

Multivision binocular microscope YR0232 // YR0235

Manufacturer: Kalstein

Description

The Multivision Binocular Microscope YR0232 // YR0235 is a state-of-the-art modular multi-viewing system designed to offer exceptional image quality for each observer. Featuring precision-coated glass optics, it allows multiple users to simultaneously view the same specimen, making it ideal for educational and collaborative environments. Equipped with an infinity optical system, effective illumination, LED pointer, and image coherence, this microscope is extensively used in clinical, scientific research, and teaching demonstrations.

Price in the Market

Given the advanced features and versatility of the Multivision Binocular Microscope YR0232 // YR0235, it is competitively positioned in the microscope market. The price range for such multi-viewing systems typically falls between $3,916 USD to $4,716 USD, reflecting their high-performance capabilities and value as an investment for labs and educational institutions.

Frequently Asked Questions

  • Can multiple users observe the specimen simultaneously? Yes, this system allows up to 10 users to view the specimen at the same time, with customizable options for up to 20 viewing stations.
  • Is the lighting adjustable? Yes, it comes with external lighting and a halogen lamp which is easily adjustable for optimal viewing conditions.

Advantages and Disadvantages

Advantages:

  • High-quality infinity optical system.
  • Multi-viewing capability enhances collaborative analysis.
  • Effective LED pointer improves demonstration clarity.

Disadvantages:

  • The initial investment may be substantial for smaller institutions.
  • The setup may require additional space due to its multi-viewing capabilities.

Product Usage in the Field

In practical applications, the Multivision Binocular Microscope YR0232 // YR0235 excels in environments requiring detailed observation by multiple users, such as medical labs, educational classrooms, and research facilities. Its ability to provide consistent and reliable image quality makes it an invaluable tool for any institution focused on detailed analysis and collaborative study.

Recommendations

To ensure maximum longevity and performance, it is recommended that users perform regular maintenance checks and protect the microscope from harsh environmental conditions. Utilizing the platform Kalstein Plus, users can easily generate a quote or request additional information, allowing them to make informed purchasing decisions.

Key Features

  • Infinity Optical System
  • 360° rotatable viewing head
  • Double-layer mechanical stage
  • Quintuple reverse nosepiece
  • Dual color pointer with adjustable brightness

Technical Specifications

Model YR0232 YR0233 YR0234 YR0235
Optical system Infinity Optical System ⚫ ⚫ ⚫ ⚫
Visualization Head Uncompensated trinocular head, 30° inclined, 360° rotatable, interpupillary distance 48-75mm, rotatable 360°, interpupillary distance 48-75mm 1 piece 1 piece 1 piece 1 piece
Uncompensated binocular head, 30° inclined, 360° rotatable, interpupillary distance 48-75mm, rotatable 360°, interpupillary distance 48-75mm 4 pieces 2 pieces 1 pieces 1 pieces
Ocular EW10x/20 Extra Wide Field Eyepiece 10 pieces 6 pieces 4 pieces 4 pieces
Muserola Quintuple Reverse Revolver ⚫ ⚫ ⚫ ⚫
Target Infinity plan achromatic objective 4x, 10x, 40x, 100x ⚫ ⚫ ⚫ ⚫
Capacitor Swing capacitor NA0.9/0.25 ⚫ ⚫ ⚫ ⚫
Approach Coaxial coaxial fine and coarse focus adjustment, fine division 0.001mm ⚫ ⚫ ⚫ ⚫
Stage Double-layer mechanical stage 185x142mm, moving range 75x55mm ⚫ ⚫ ⚫ ⚫
Kohler Lighting External lighting, halogen lamp 24V/100W ⚫ ⚫ ⚫ ⚫
Cursor Green LED pointer, adjustable brightness ⚫ ⚫ ⚫ ⚫
Dual color pointer, adjustable brightness ⚪ ⚪ ⚪ ⚪
Photo Attachment ⚪ ⚪ ⚪ ⚪
Video Adapter Mounting on C1x ⚪ ⚪ ⚪ ⚪
C-mount 0.5x ⚪ ⚪ ⚪ ⚪

Additional information

Weight N/A
Modelo

YR0232, YR0233, YR0234, YR0235
