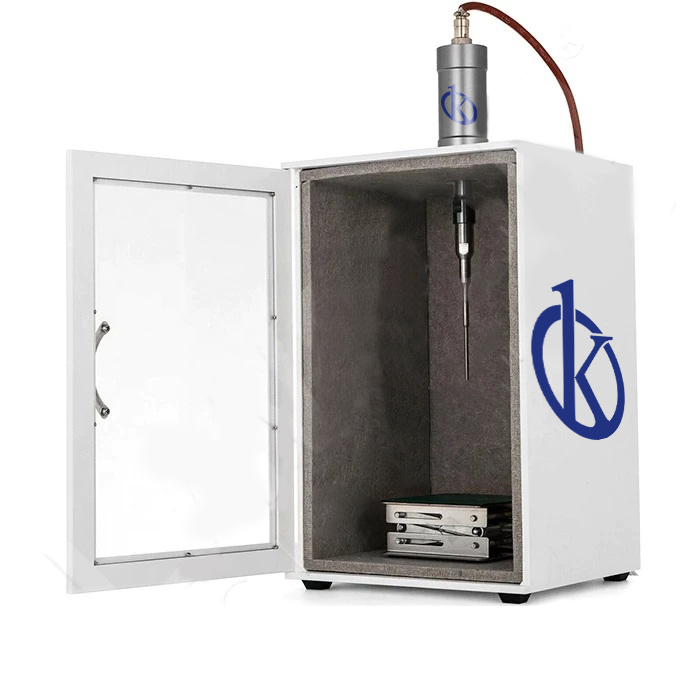

Ultrasonic Homogenizer Processor Sonicator for Liquid Processing YR05829 // YR05831

Manufacturer: Kalstein

Description

The Ultrasonic Homogenizer Processor Sonicator for Liquid Processing YR05829 // YR05831 is a cutting-edge piece of equipment designed for efficient sample processing in laboratories. This advanced system features an intelligent and fully digital ultrasonic generator, allowing it to facilitate cavitation in liquids. It’s an indispensable tool for various applications, including emulsification, cell disruption, nanoparticle dispersion, and even accelerating chemical reactions. Equipped with a user-friendly 3.5-inch touch screen and capable of both manual and automatic operations, this sonicator caters to the diverse needs of modern biochemical and microbiological labs.

Market Price

The pricing for the Ultrasonic Homogenizer Processor ranges from approximately $190 to $590 USD, based on the configurations and optional accessories selected. This price point makes it an attractive and feasible choice for laboratories that require reliable and efficient liquid processing equipment without breaking the budget.

Frequently Asked Questions

  • What applications are ideal for this ultrasonic processor?
    This equipment is ideal for emulsification, cell extraction, nanoparticle dispersion, and accelerating chemical reactions.
  • Is it safe for sensitive samples?
    Yes, the precise control of temperature and ultrasonic power ensures that delicate samples do not suffer thermal or mechanical damage.

Advantages and Disadvantages

The main advantages of the YR05829 // YR05831 include its ability to handle a wide range of sample sizes, its compact design, and the reliability provided by its intelligent ultrasonic generator. It offers continuous and intermittent operation modes for versatility. However, for laboratories with large volume processing demands, the capacity might fall short for large-scale operations.

Field Use

This ultrasonic homogenizer is widely used in biotechnological research to disrupt cells and extract proteins. It’s also instrumental in chemistry labs for dispersing nanoparticles. With a processing capacity ranging from 0.1 ml to 300 ml, it’s highly suitable for quality control and water analysis laboratories, aiding in the pre-treatment of samples for precise results.

Recommendations

To ensure optimal performance of the YR05829 // YR05831, regular maintenance is recommended. This includes cleaning the ultrasonic probe and verifying the temperature control system. Laboratories looking to harness the full potential of this advanced sonicator are invited to request a quote or generate one automatically through our Kalstein Plus platform. Elevate your sample processing efficiency today!

Features

  • Intelligent ultrasonic generator
  • 3.5-inch touch screen interface
  • Automatic and manual operation modes
  • Compact and space-saving design
  • Adjustable ultrasonic power (5 to 400 W)

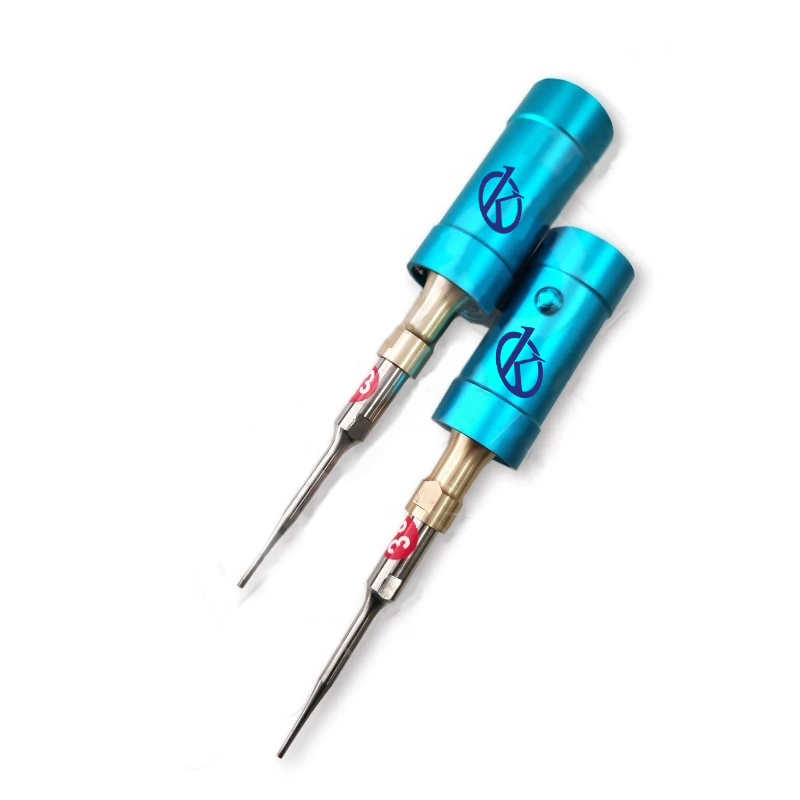

  • Durable TC4 titanium alloy probe
  • Temperature control with optional probe

Technical Specifications

Models YR05829 YR05830 YR05831
Operating mode Automatic, Manual
Screen size 3.5 inch high definition large touch screen control
Ultrasonic power(W) 5-150 5-250 5-400
Frequency(KHz) 19-25
Duty ratio(%) 1~99%
Handling capacity(ml) 0.1-50 0.5-100 0.5-300
Ultrasonic time(s/min) 1s-99m-99h
Random horn(Φ mm) 2 3 6
Temperature control Temperature probe(Optional)
Power source 220V/ 50Hz(110V Can be customized)
Optional horn(Φ mm) 2,3 2,3,6 3,6,8
Mainframe Weight(kg) 4.2 4.5
Total package weight(kg) 5.8 6.2 6.5

Additional information

Weight 4,1 kg
Modelo

YR05829, YR05830, YR05831, YR05831-op1, YR05831-op2

Characteristic Feature

No Features, Titanium alloy(Ti-6Al-4V) Φ2~Φ6, White soundproof box, lifting platform
