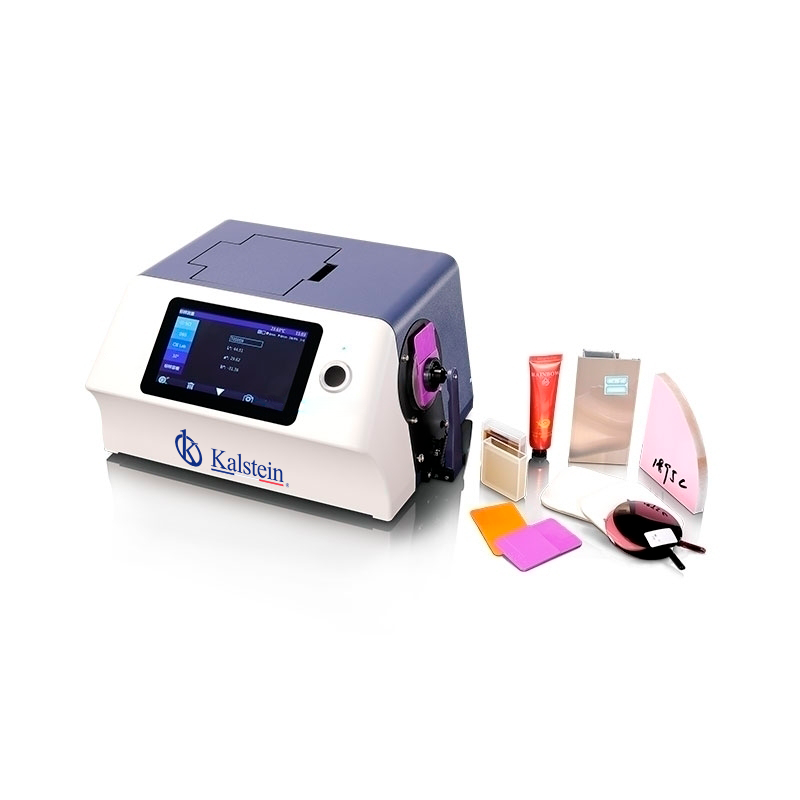

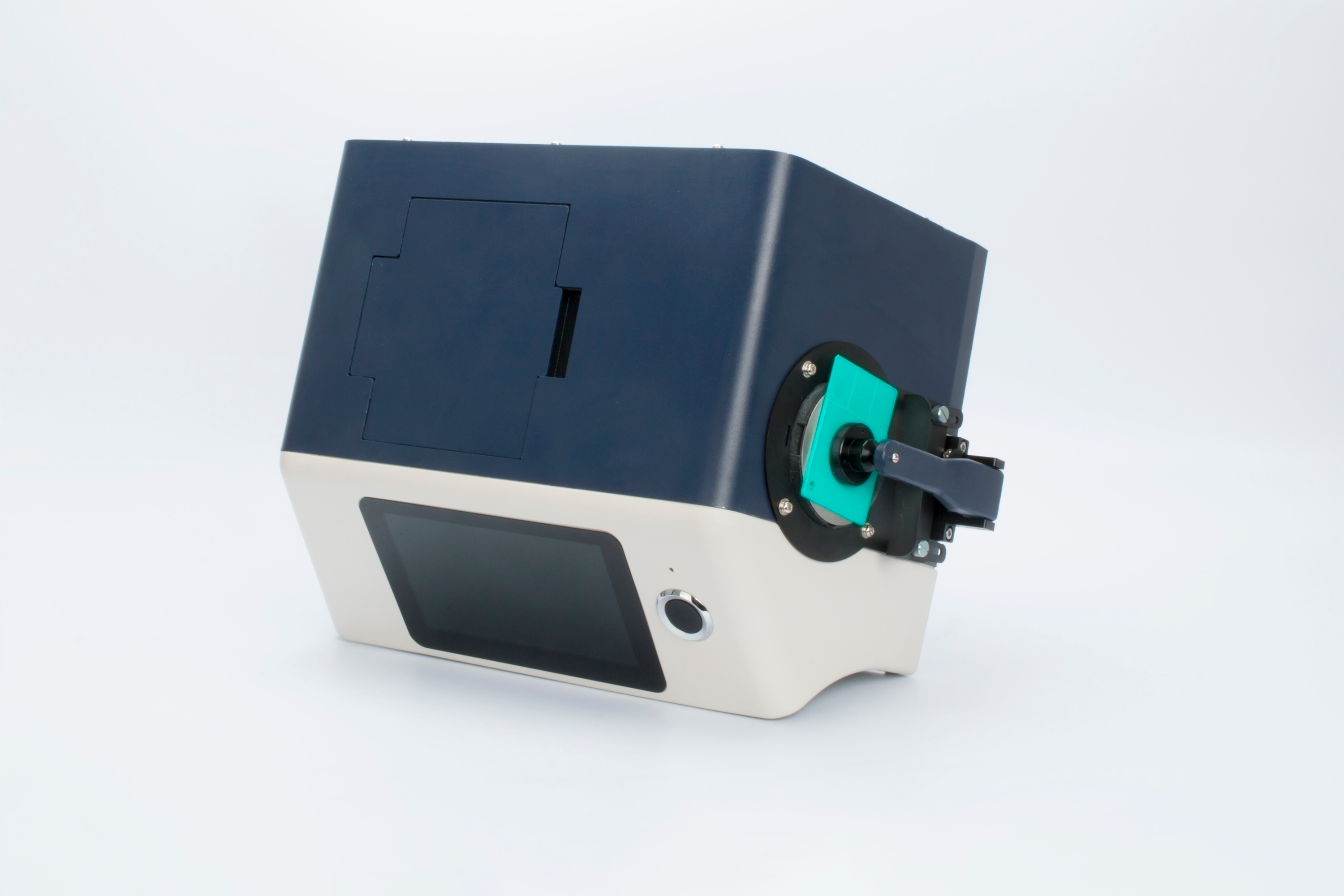

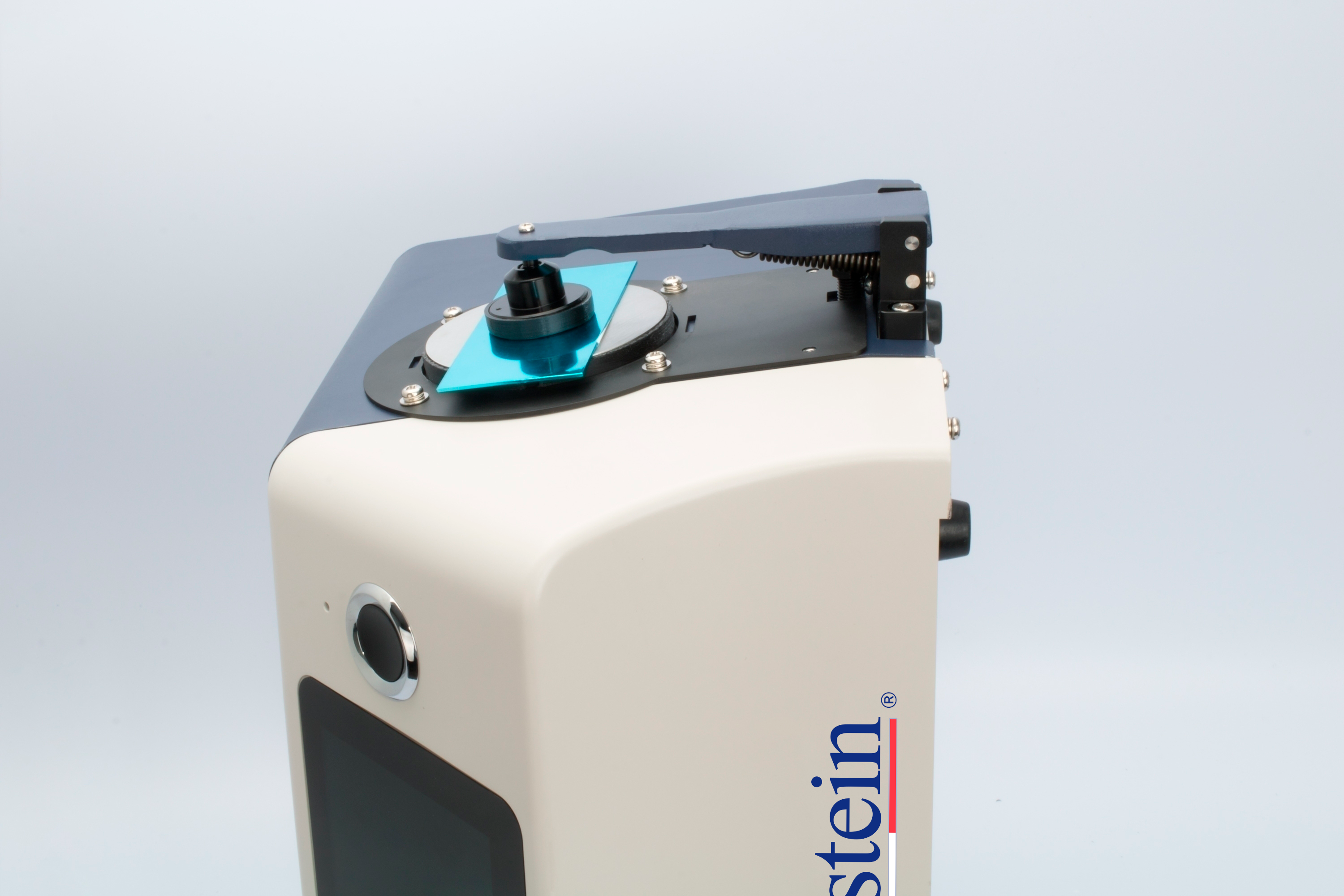

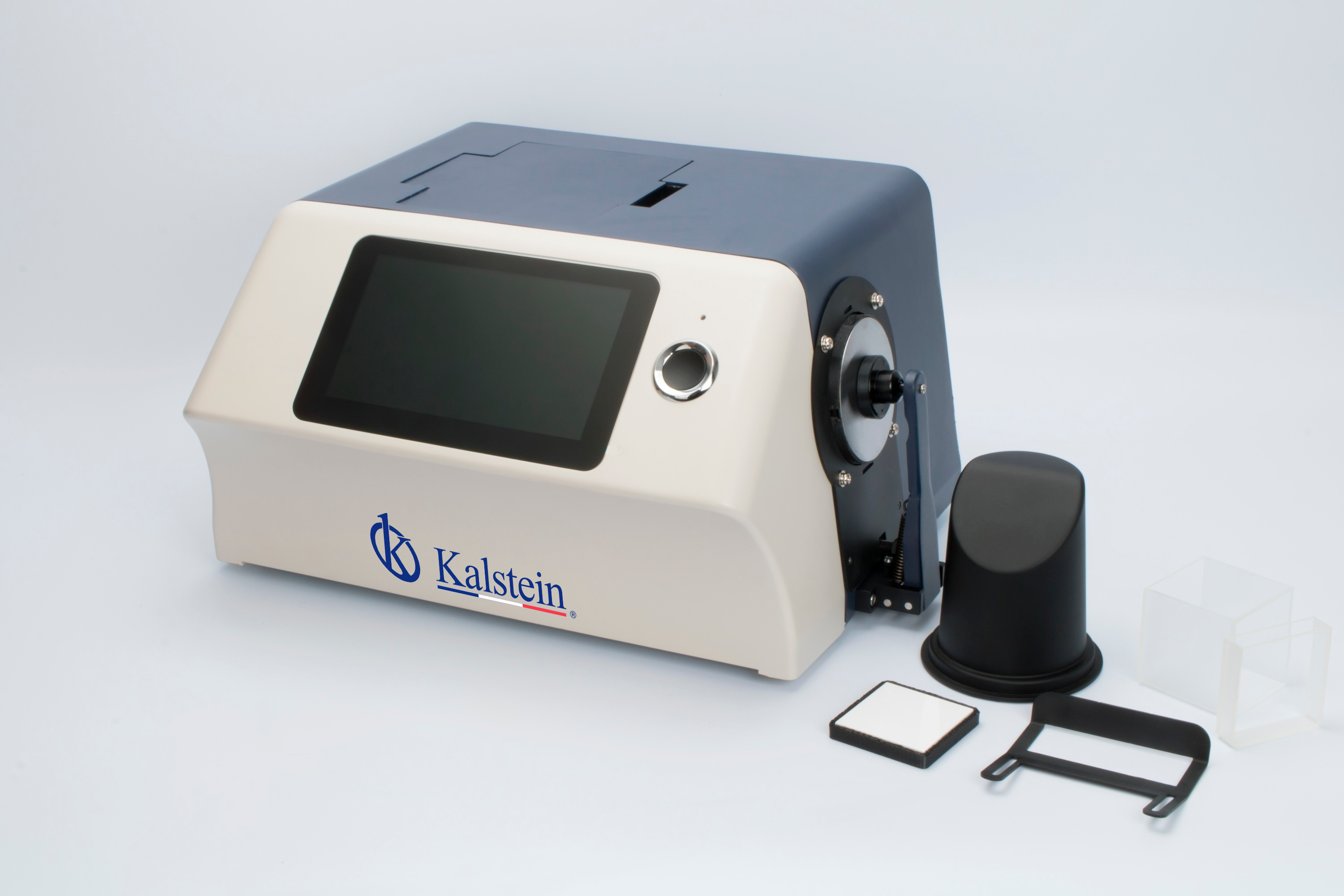

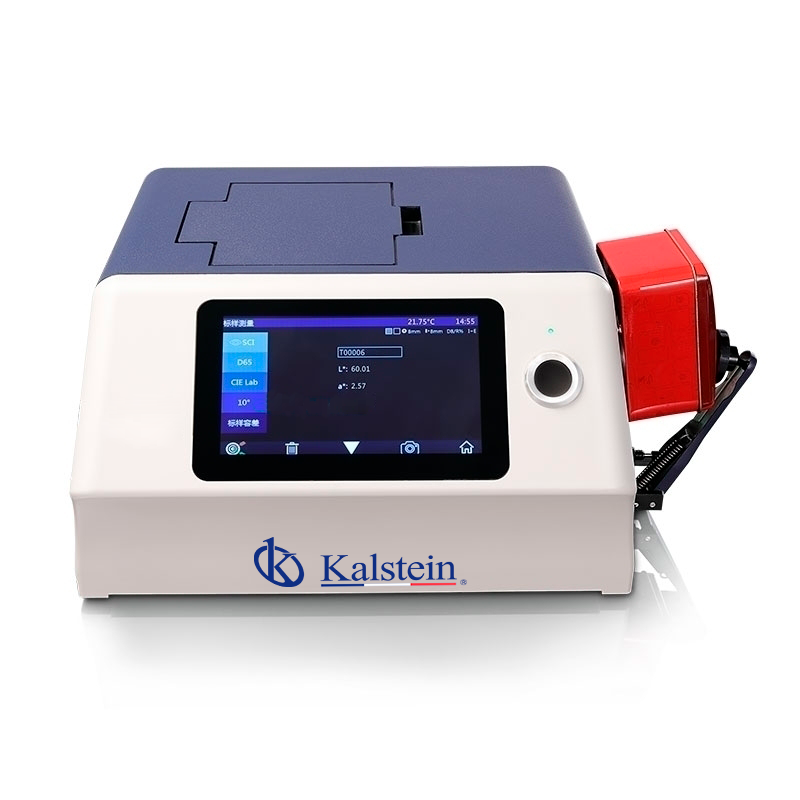

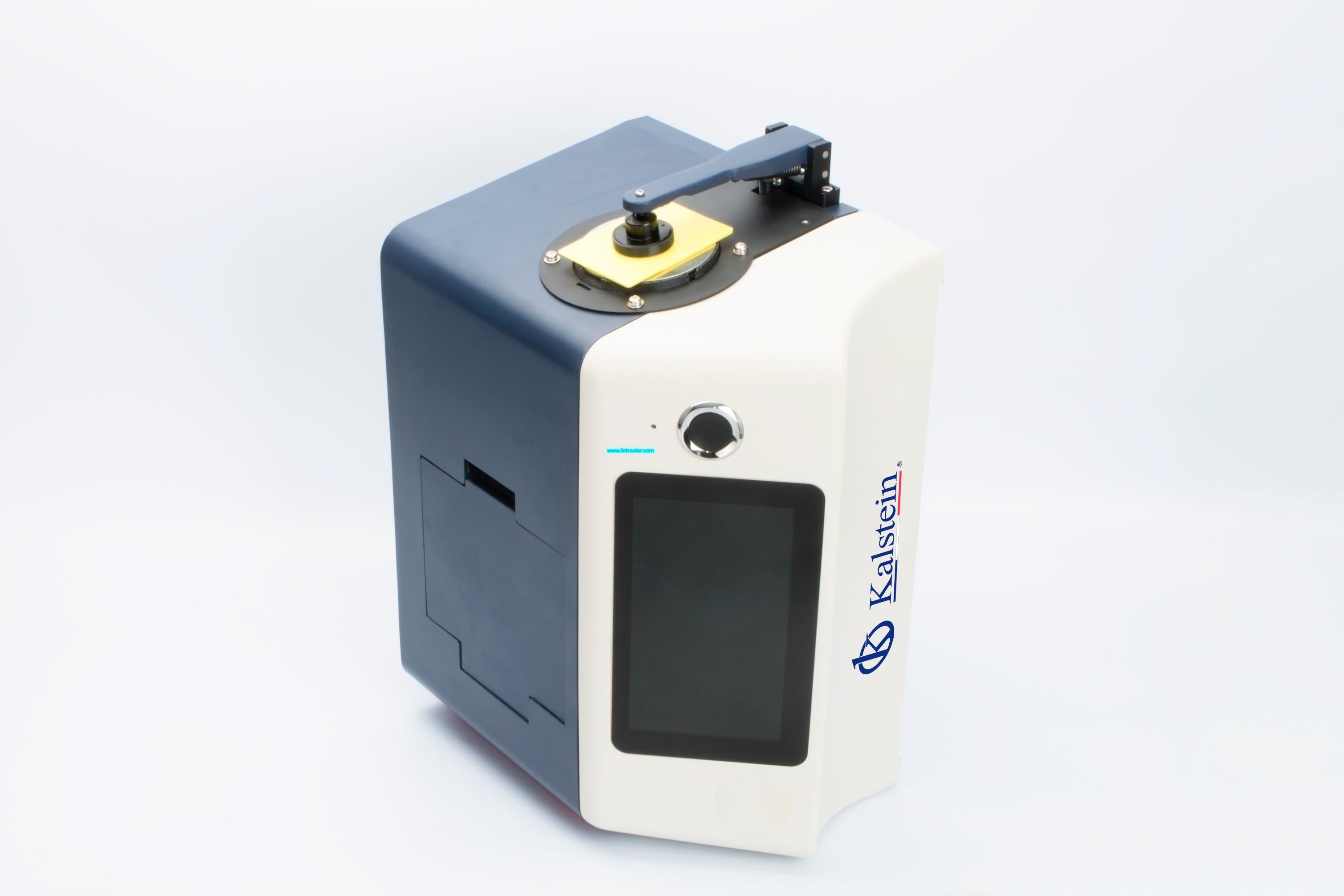

Pulsed Xenon lamp Benchtop Spectrophotometer YR05474

ManufacturerKalstein

Description

The Pulsed Xenon Lamp Benchtop Spectrophotometer YR05474 is a cutting-edge measurement device designed by Kalstein, perfect for precise color analysis in both laboratories and industrial settings. This advanced spectrophotometer comes with a user-friendly 7-inch TFT touchscreen for intuitive navigation and setup. Its innovative reflective and transmissive optical geometry allows measurements on various material types, ensuring versatility in applications. Equipped with a pulsed xenon lamp and dual-array CMOS sensor, it guarantees precision and stability in all types of testing environments. Additionally, the YR05474 model offers substantial storage capacity and robust PC software for efficient data management and analysis.

Market Price

The price of the YR05474 spectrophotometer typically ranges from $4415 to $5215 USD, presenting an excellent cost-value proposition compared to other high-end models available today. This product is particularly beneficial for industries such as plastics, inks, food, and cosmetics, where accurate color measurement is critical for maintaining product quality. For a tailored quote that meets your specific business requirements, visit the Kalstein Plus platform and easily request a no-obligation quote.

Frequently Asked Questions

  • Is the YR05474 suitable for both translucent and opaque samples?
    Yes, this model is designed to assess both opaque and translucent materials, including liquids and transparent solids.
  • What is the storage capacity?
    The YR05474 can store up to 40,000 test results, allowing thorough tracking of each measurement.
  • Does the device offer adjustable measurement apertures?
    Yes, it features three adjustable apertures (Φ25.4 mm, 8 mm, and 4 mm) to accommodate different sample types.

Advantages and Disadvantages

The YR05474 offers several advantages, including a temperature compensation system for precise measurements under varying conditions, an ergonomic design for extended use, and capability with both LED and UV light sources. However, routine calibrations may be necessary in high-use environments to maintain optimal accuracy.

Field Use

Ideal for quality control and product development labs, especially in demanding sectors like automotive, cosmetics, medical, and food industries, this spectrophotometer excels in recognizing both reflectance and transmittance across many materials. The YR05474 significantly enhances verification processes by ensuring high-quality standards throughout production stages.

Recommendations

To optimize the performance of the YR05474, regular calibration and a clean, stable working environment are recommended. Adjusting the measurement aperture to match the sample type and testing conditions is essential for achieving precise and consistent outcomes. Request your personalized quote at Kalstein Plus and discover how the YR05474 Desktop Spectrophotometer can transform your quality control and color analysis procedures, providing reliable measurements across all applications.

Features

  • Pulsed Xenon Lamp System
  • 7-inch TFT Touchscreen
  • Dual-array 256-element CMOS Sensor
  • Adjustable Apertures: Φ25.4 mm, 8 mm, and 4 mm
  • Reflective d/8 and Transmissive d/0 Optical Geometry
  • Data Storage Capacity: Up to 40,000 Records
  • Comprehensive PC Software

Technical Specifications

Model YR05474
Optical Geometry Reflectance: d/8 (SCI⪰ Include UV/Exclude UV)
Transmittance: d/0 (SCI⪰ Include UV/Exclude UV); Haze(ASTM D1003)
Conforms to CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil7
Integrating Sphere Size Φ 154mm
Light Source Device 360nm-780nm Xenon Lamp, 400nm cut-off Xenon Lamp,420nm cut-off Xenon Lamp,460nm cut-off Xenon Lamp
Spectrophotometric Mode Concave Grating
Sensor 256 Image Element Double Array CMOS Image Sensor
Wavelength Range 360-780nm
Wavelength Pitch 10nm
Semiband Width 5nm
Reflectance Range 0~200%
Measuring Aperture Reflective : Φ30mm/Φ25.4mm, Φ18mm/Φ15mm, Φ10mm/Φ8mm, Φ6mm/Φ4mm;
Transmissive : Φ30mm/Φ25mm;Remark: 1. Automatic identification of switch caliber   2. Customized Configuration caliber and lens position
Specular Component Reflectance: SCI&SCE
Transmittance: SCI&SCE
Color Space CIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LAB, Munsell, s-RGB, HunterLab, DIN, βxy
Color Difference Formula ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00v, ΔE(Hunter), DIN ΔE99
Colorimetric Index WI (ASTM E313, CIE/ISO, AATCC, Hunter),
YI (ASTM D1925, ASTM 313),
MI (Metamerism Index),
Staining Fastness, Color Fastness, Color Strength, Opacity,
Gardner Index, Pt-Co Index, 555 Index, Haze(ASTM D1003)
Observer Angle 2° & 10°
Illuminants D65, A, C, UV, D50, D55, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12
Displayed Data Spectrogram/Values, Chromaticity Values, Color Difference Values/Graph, Pass/Fail Result, Color Offset
Measuring Time About 2.4s (Measure SCI & SCE about 5s)
Repeatability Spectral reflectance: Φ25.4mm/SCI, Standard deviation within 0.06% (400 nm to 700 nm: within 0.05%)
Chromaticity value: Φ25.4mm/SCI, Standard deviation within ΔE*ab 0.012 (When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
Spectral Transmittance: Φ25.4mm/SCI, Standard deviation within 0.06% (400 nm to 700 nm: within 0.06%)
Chromaticity value: Φ25.4mm/SCI, Standard deviation within ΔE*ab 0.015 (When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
Inter-instrument Error Φ25.4mm/SCI, Within ΔE*ab 0.12
(Average for 12 BCRA Series II color tiles)
Size 370×300×200mm
Weight About 9.6kg
Power Supply DC 24V, 3A Power Adapter
Light Source Device Life 5 years, more than 3 million times measurements.
Display 7″ TFT Capacitive Screen-touch Display
Data Port USB & Bluetooth & Print serial port
Data Storage Standard 5000 Pcs, Sample 40000 Pcs
Language Simplified Chinese, Traditional Chinese, English, (Optional Customized German, French and Spanish)
Working Environment Temperature: 0~40℃; Humidity: 0~85% (No Condensation)
Storage Environment Temperature: -20~50℃; Humidity: 0~85% (No Condensation)

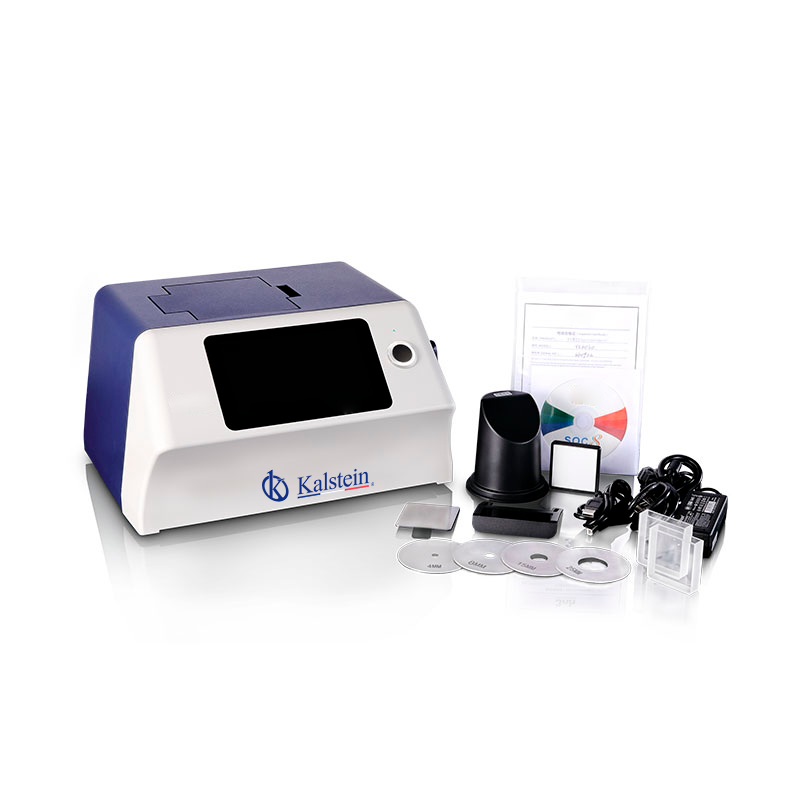

Standard Accessory Power Adapter, User Guide, CD Disk(PC Software), USB cable, Standard Calibration Board, Black Calibration Cavity, Transmission black baffle, Sample holder, 25.4 caliber, 15 caliber, 8 caliber, 4 caliber,Transmissive Test Component
Optional Accessory Micro-printer, Micro Aperture(4mm) transmission test clamp component, Instrument inversion components
Notes: The specifications are subject to change without notice.
